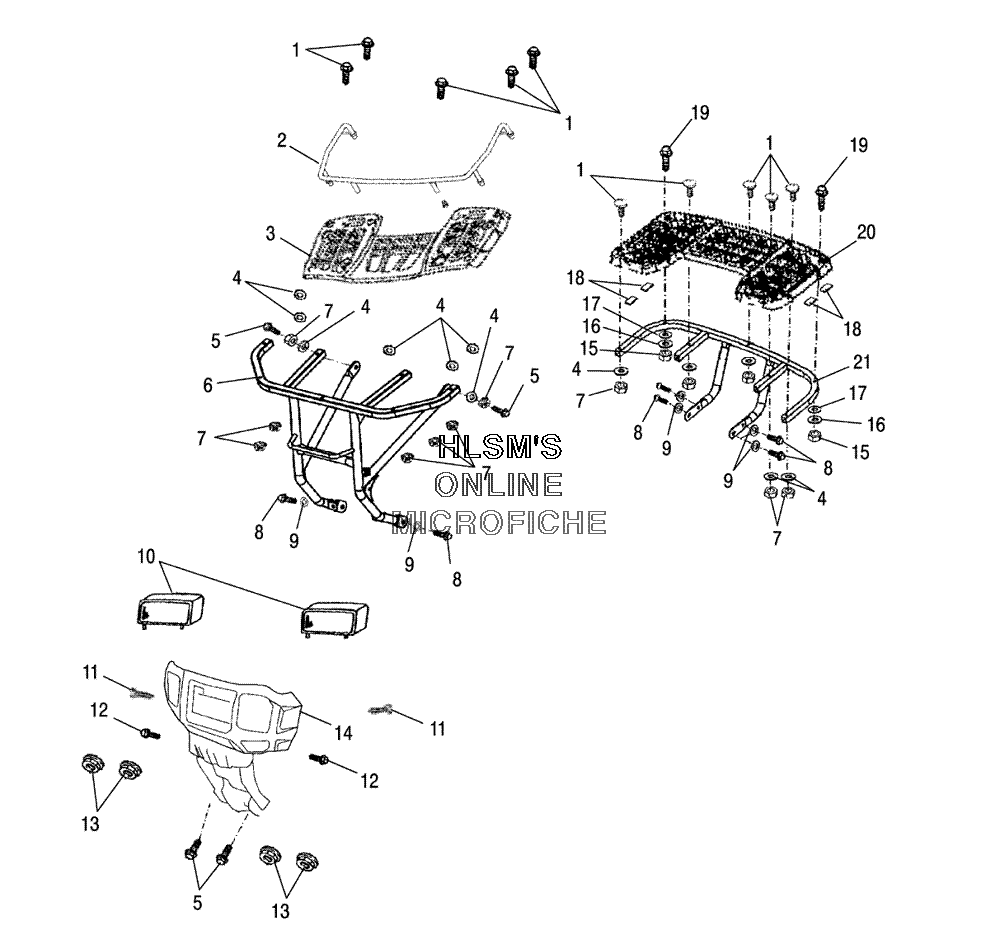

RACK AND BUMPER MOUNTING - FRONT для Polaris SPORTSMAN 90 (A05FA09CB) (N.B.U. SUB CAMO) - 2005 года выпуска
-
№АртикулНазвание
-
10450310 BOLT HEXAGON WASHERBOLT HEXAGON WASHER
-
20450000 EXTENSION RACK (FRONT)EXTENSION RACK (FRONT)
-
20450014 EXTENSION RACK (REAR)EXTENSION RACK (REAR)
-
30451172-070 RACK (FRONT) (BLACK)RACK (FRONT) (BLACK)
-
40450879 WASHER PLAINWASHER PLAIN
-
50450340 BOLT HEXBOLT HEX
-
60451700 BUMPER (FRONT)BUMPER (FRONT)
-
70450808 NUT LOCKNUT LOCK
-
80450298 BOLT HEXAGONBOLT HEXAGON
-
90451702 WASHER SPRINGWASHER SPRING
-
100450862 LGHT LOWBEAM ASSYLGHT LOWBEAM ASSY
-
110451703 SCREW TAPPINGSCREW TAPPING
-
120450824 BOLT WITH WASHER HEXAGONBOLT WITH WASHER HEXAGON
-
130450150 NUT FLANGE HEXAGONNUT FLANGE HEXAGON
-
140451174-070 BUMPER (FRONT/BLACK)BUMPER (FRONT/BLACK)
-
150450606 NUT LOCKNUT LOCK
-
160452201 WASHER FLATWASHER FLAT
-
170450613 GROMMET FOOTRESTGROMMET FOOTREST
-
180450863 RUBBER ANTIVIBRATIONRUBBER ANTIVIBRATION
-
190451704 BOLT HEX FLANGEBOLT HEX FLANGE
-
200451173-070 RACK (REAR/BLACK)RACK (REAR/BLACK)
-
210451701 RACK, SUPPORT (REAR)RACK, SUPPORT (REAR)
