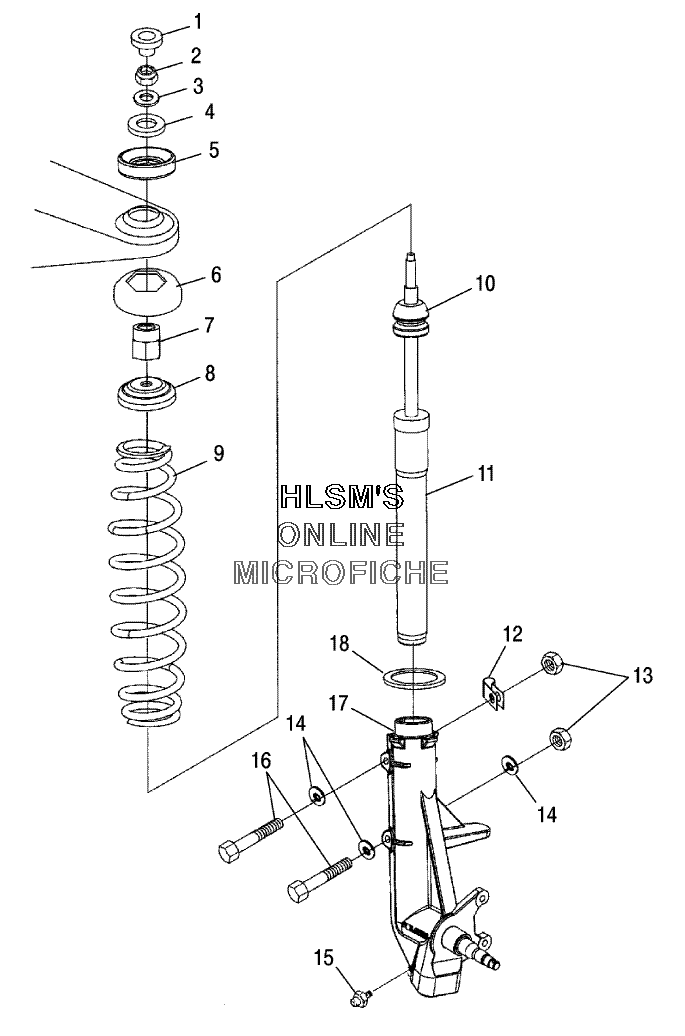

SUSPENSION - FRONT STRUT для Polaris TRAIL BLAZER (A05BA25CA) (BLAZING RED) - 2005 года выпуска
-
№АртикулНазвание
-
17052028 GROMMETGROMMET
-
27547104 NUTNUT
-
37555749 WASHERWASHER
-
45810291 SPACER, RUBBERSPACER, RUBBER
-
55432872 PIVOT, BALL (TOP)PIVOT, BALL (TOP)
-
65432871 PIVOT, BALL (BOTTOM)PIVOT, BALL (BOTTOM)
-
75132062 SPACER 1/2 20SPACER 1/2 20
-
85243364 RETAINER SPRINGRETAINER SPRING
-
97042310-216 SPRING COMP (55 80#) (YELLOW)SPRING COMP (55 80#) (YELLOW)
-
105412665 BUMPER MCU (17.8MM ID)BUMPER MCU (17.8MM ID)
-
117041762 STRUT (FRONT) (184.7MM LT)STRUT (FRONT) (184.7MM LT)
-
127080367 CLAMP, CABLECLAMP, CABLE
-
137542324 NUT, NYLOKNUT, NYLOK
-
147558402 WASHER, FLATWASHER, FLAT
-
157080306 FITTING, LUBE.W/BALL CHECKFITTING, LUBE.W/BALL CHECK
-
167515339 BOLTBOLT
-
175134133 SUPPORT STRUT/SPINDLE (MACH) (LEFT)SUPPORT STRUT/SPINDLE (MACH) (LEFT)
-
175134134 SUPPORT STRUT/SPINDLE (MACH) (RIGHT)SUPPORT STRUT/SPINDLE (MACH) (RIGHT)
