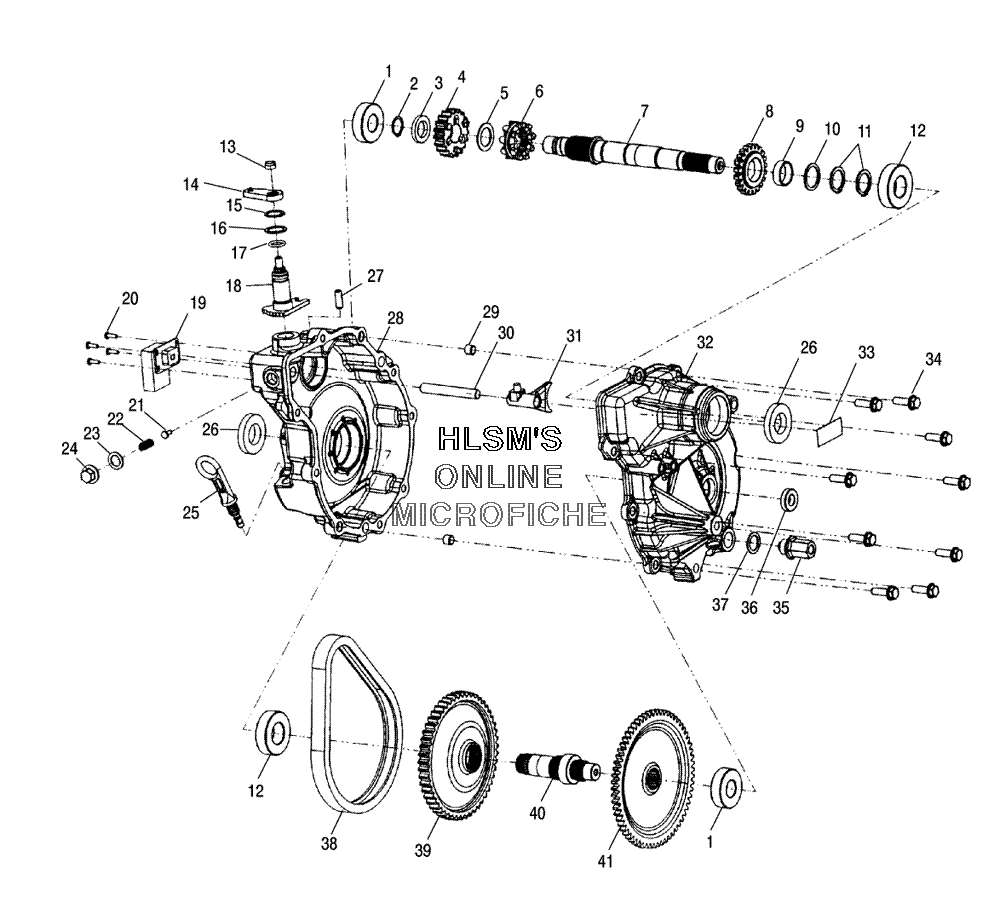

GEARCASE для Polaris TRAIL BOSS 330 (A05CA32AC) (BLACK METALLIC) - 2005 года выпуска
-
№АртикулНазвание
-
13233018 BEARINGBEARING
-
23233177 RING RETAININGRING RETAINING
-
33233673 WASHER THRUSTWASHER THRUST
-
43233674 SPROCKETSPROCKET
-
53233010 WASHERWASHER
-
63233675 ENGAGEMENT DOG HIGH/REV (USED IN 1341306)ENGAGEMENT DOG HIGH/REV (USED IN 1341306)
-
63234237 ENGAGEMENT DOG HIGH/REV (USED IN 1341501)ENGAGEMENT DOG HIGH/REV (USED IN 1341501)
-
73233676 SHAFT INPUT HYBRIDSHAFT INPUT HYBRID
-
83233677 GEARGEAR
-
93233678 BUSHINGBUSHING
-
103233105 WASHERWASHER
-
113233106 RING SNAPRING SNAP
-
123233019 BEARINGBEARING
-
133233961 NUT LOCK HEXAGON FLANGE NYLONNUT LOCK HEXAGON FLANGE NYLON
-
143233547 BELLCRANK (USED IN 1341306)BELLCRANK (USED IN 1341306)
-
143234148 BELLCRANK (USED IN 1341501)BELLCRANK (USED IN 1341501)
-
153233045 RING RETAININGRING RETAINING
-
163233040 WASHERWASHER
-
173233548 O-RINGO-RING
-
183233679 SHIFT SHAFTSHIFT SHAFT
-
193234002 SWITCH GEAR INDICATION 3 PISTONSWITCH GEAR INDICATION 3 PISTON
-
203233749 SCREWSCREW
-
213233680 BULLET SHIFTINGBULLET SHIFTING
-
223233681 SPRING COMPRESSIONSPRING COMPRESSION
-
233233872 WASHER NYLONWASHER NYLON
-
243233682 PLUG DETENTPLUG DETENT
-
253233478 DIPSTICKDIPSTICK
-
263233788 SEAL TRIPLE LIPSEAL TRIPLE LIP
-
273233524 TUBE VENTTUBE VENT
-
283234049 GEARCASE MACH (RIGHT)GEARCASE MACH (RIGHT)
-
293233529 PIPE KNOCKPIPE KNOCK
-
303233684 SHAFT SHIFTSHAFT SHIFT
-
313233685 SHIFT FORKSHIFT FORK
-
323234048 GEARCASE MACH (LEFT)GEARCASE MACH (LEFT)
-
333233636 DECAL SWITCHDECAL SWITCH
-
343233252 SCREWSCREW
-
353233687 PLUGPLUG
-
363233527 BUSHING PIVOTBUSHING PIVOT
-
373233035 WASHERWASHER
-
383233111 CHAIN SILENTCHAIN SILENT
-
393233688 SPROCKET (USED IN 1341306)SPROCKET (USED IN 1341306)
-
393234223 SPROCKET (USED IN 1341501)SPROCKET (USED IN 1341501)
-
403233689 OUTPUT SHAFT (USED IN 1341306)OUTPUT SHAFT (USED IN 1341306)
-
403234224 OUTPUT SHAFT (USED IN 1341501)OUTPUT SHAFT (USED IN 1341501)
-
413233690 GEARGEAR
-
411341306 GEARCASE ASSYGEARCASE ASSY
-
411341501 GEARCASE, ASSY HR (INCL. 1-41) (IF BUILT AFTER 1/17/05)GEARCASE, ASSY HR (INCL. 1-41) (IF BUILT AFTER 1/17/05)
