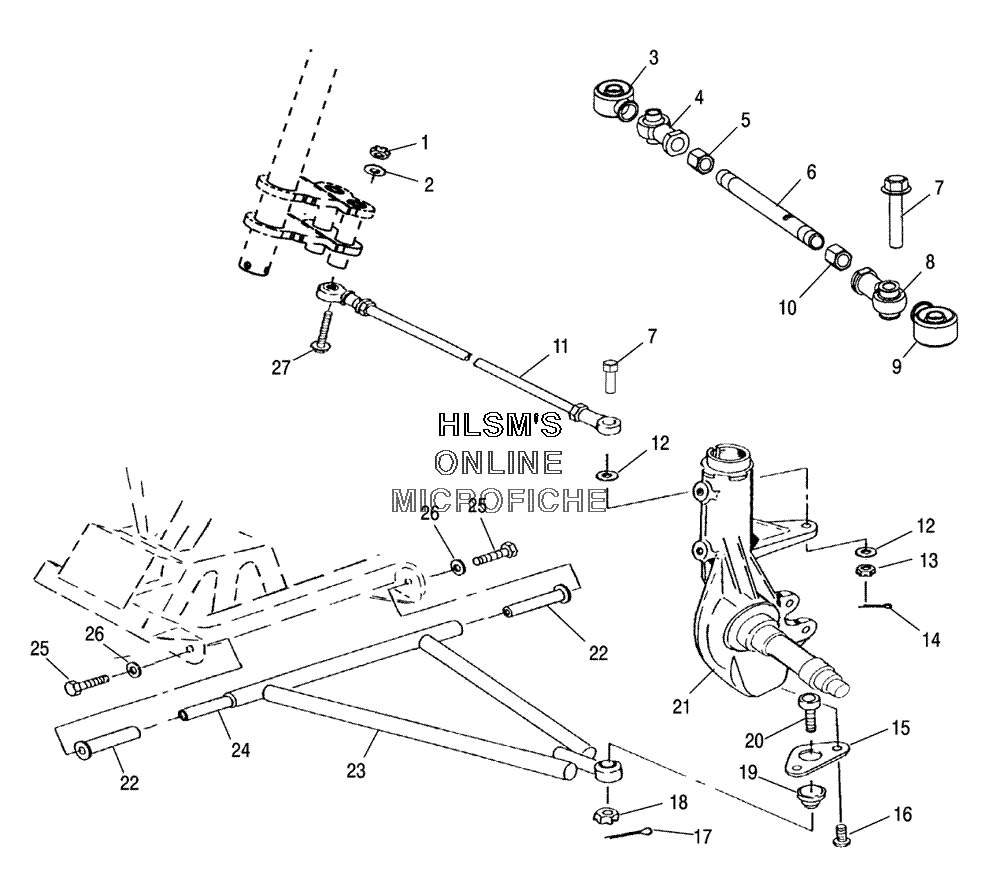

SUSPENSION - FRONT A ARM W/ STRUT MOUNTING для Polaris TRAIL BOSS 330 (A05CA32AC) (BLACK METALLIC) - 2005 года выпуска
-
№АртикулНазвание
-
17542439 NUT NYLOKNUT NYLOK
-
27558403 WASHER WROUGHTWASHER WROUGHT
-
35411291 SEAL BOOT ROD END (1/2 IN)SEAL BOOT ROD END (1/2 IN)
-
47061034 ROD END (RIGHT)ROD END (RIGHT)
-
57542711 NUT JAMNUT JAM
-
65020927 ROD TIEROD TIE
-
77517909 BOLT HEXAGON WASH HEADBOLT HEXAGON WASH HEAD
-
87061054 ROD END (10MM 1/2 20 LEFT 42 DEG)ROD END (10MM 1/2 20 LEFT 42 DEG)
-
95411920 BOOT SEAL ROD END (10MM)BOOT SEAL ROD END (10MM)
-
107547028 NUT JAM (LEFT)NUT JAM (LEFT)
-
111820806 TIE ROD (INCL. 3 8) (IF BUILT BEFORE 1/05/05)TIE ROD (INCL. 3 8) (IF BUILT BEFORE 1/05/05)
-
111821498 TIE ROD ASSY (INCL. 3 8) (IF BUILT AFTER 1/05/05)TIE ROD ASSY (INCL. 3 8) (IF BUILT AFTER 1/05/05)
-
127556099 WASHERWASHER
-
137547177 NUT HEXAGON LOCKNUT HEXAGON LOCK
-
147661407 COTTER PINCOTTER PIN
-
155211121 BRACKET BALL JOINTBRACKET BALL JOINT
-
167512284 BOLT SOCKETBOLT SOCKET
-
177661203 PIN COTTERPIN COTTER
-
187542438 NUT CASTLENUT CASTLE
-
195410548 BOOT RUBBERBOOT RUBBER
-
207080927 BALL JOINTBALL JOINT
-
225434551 BUSHING A ARM LONG (BLACK)BUSHING A ARM LONG (BLACK)
-
232202278 A FRAME KIT (LEFT) (1541872) (INCL. 22, 25, 26)A FRAME KIT (LEFT) (1541872) (INCL. 22, 25, 26)
-
232202279 A FRAME KIT (RIGHT) (1541873) (INCL. 22, 25, 26)A FRAME KIT (RIGHT) (1541873) (INCL. 22, 25, 26)
-
245133806 SHAFT A ARMSHAFT A ARM
-
257512492 SCREW (IF BUILT BEFORE 5/10/04)SCREW (IF BUILT BEFORE 5/10/04)
-
257518364 BOLT HEXAGON FLANGE GR5 (IF BUILT AFTER 5/10/04)BOLT HEXAGON FLANGE GR5 (IF BUILT AFTER 5/10/04)
-
267555832 WASHER (IF BUILT BEFORE 5/10/04)WASHER (IF BUILT BEFORE 5/10/04)
-
277518033 BOLT, SPECIAL FLANGE-Y (3/8-24X4)BOLT, SPECIAL FLANGE-Y (3/8-24X4)
