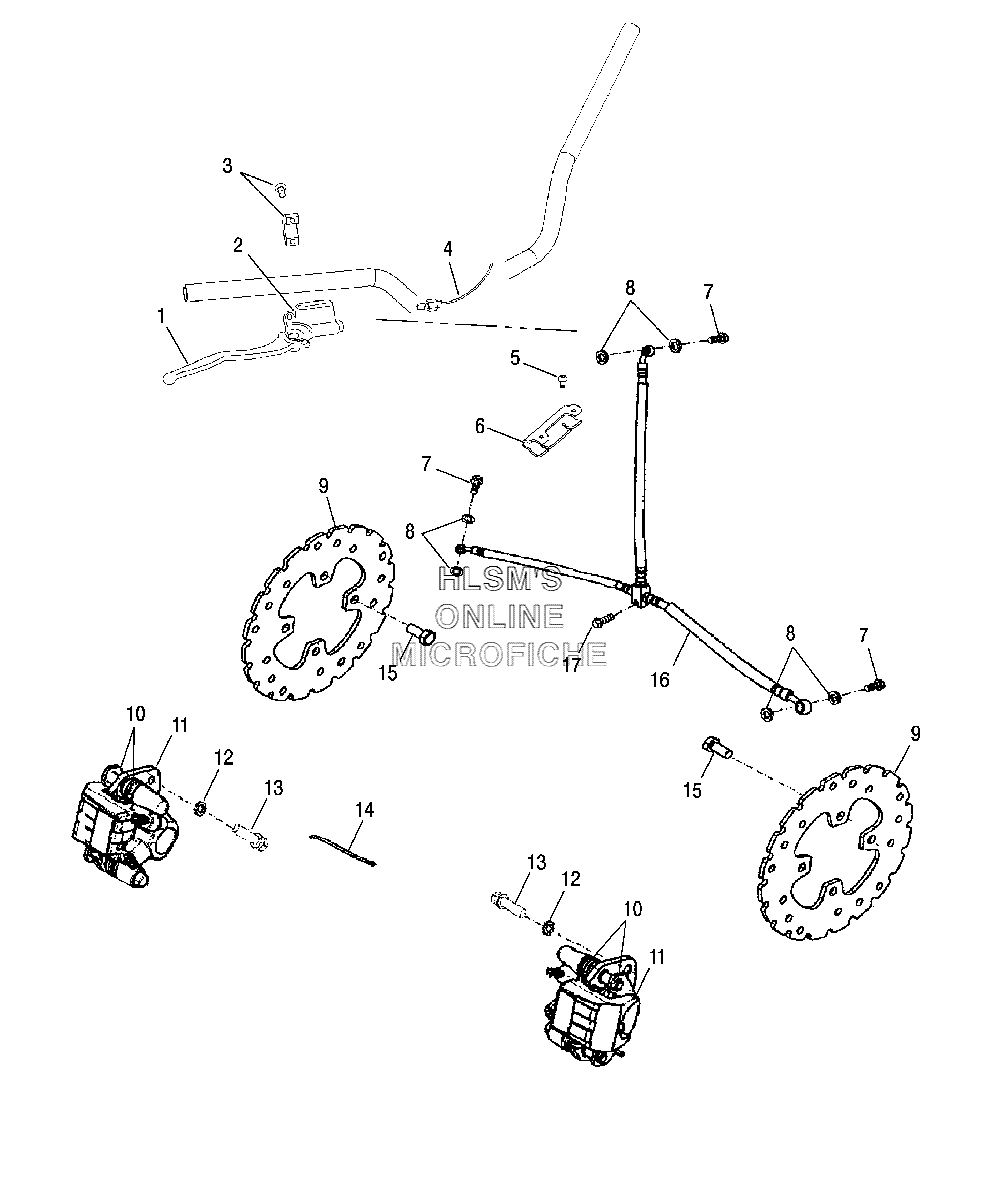

BRAKE - FRONT для Polaris Sawtooth Quad (A06PB20VA) (CAMO GREEN METALLIC) - 2006 года выпуска
-
№АртикулНазвание
-
10453109 LEVER, BRAKE (RIGHT)LEVER, BRAKE (RIGHT)
-
20453108 MASTER CYLINDERMASTER CYLINDER
-
32202409 MASTER CYLINDER CLAMP KITMASTER CYLINDER CLAMP KIT
-
40450836 HARNESS, SENSOR SWITCHHARNESS, SENSOR SWITCH
-
50451703 SCREW, TAPPINGSCREW, TAPPING
-
60453079 RETAINER, BRAKE LINE (FRONT)RETAINER, BRAKE LINE (FRONT)
-
70452871 BOLT, BANJOBOLT, BANJO
-
80453313 WASHER, PLAINWASHER, PLAIN
-
90453010 DISC, BRAKE, FRONTDISC, BRAKE, FRONT
-
100453036 PAD, BRAKE, 05 PHOENIXPAD, BRAKE, 05 PHOENIX
-
110453018 CALIPER ASSY. (LEFT)CALIPER ASSY. (LEFT)
-
110453019 CALIPER ASSY. (RIGHT)CALIPER ASSY. (RIGHT)
-
120452325 WASHER, FLATWASHER, FLAT
-
130453355 BOLTBOLT
-
140450559 STRAPSTRAP
-
150452904 BOLT, BRAKE DISCBOLT, BRAKE DISC
-
160453271 LINE, BRAKE, FRONT J/BLINE, BRAKE, FRONT J/B
-
170453354 BOLTBOLT
