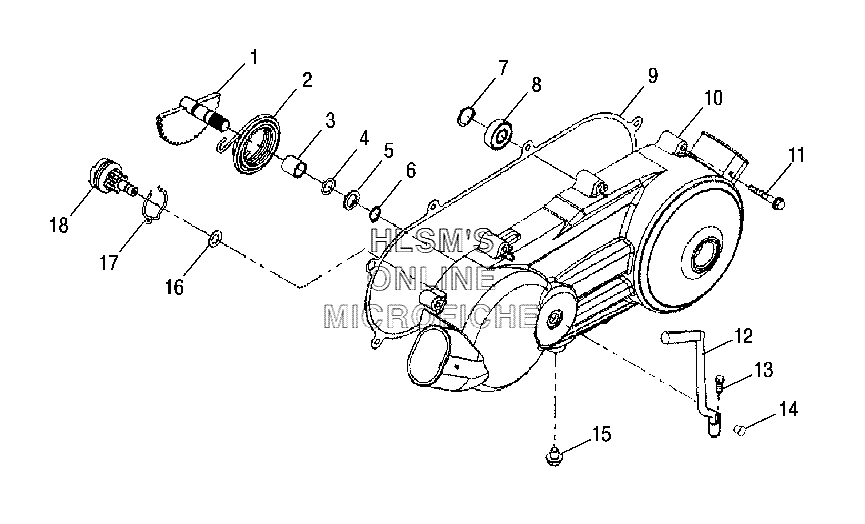

CRANKCASE COVER - LEFT для Polaris Sawtooth Quad (A06PB20VA) (CAMO GREEN METALLIC) - 2006 года выпуска
-
№АртикулНазвание
-
10452359 SPINDLE, KICK STARTSPINDLE, KICK START
-
20452360 SPRING, KICK STARTSPRING, KICK START
-
30452361 SPACER, KICK STARTSPACER, KICK START
-
40452394 O-RINGO-RING
-
50452363 WASHER, FLATWASHER, FLAT
-
60452364 CLIP, RETAINERCLIP, RETAINER
-
70452339 CLIP RETAINERCLIP RETAINER
-
80450261 BEARING, BALLBEARING, BALL
-
90452328 GASKET, CRANK CASE COVERGASKET, CRANK CASE COVER
-
100452327 COVER, CLUTCHCOVER, CLUTCH
-
110452331 BOLT, HEX, FLANGEBOLT, HEX, FLANGE
-
120453219 KICK START ASSY.KICK START ASSY.
-
130451704 BOLT, HEX FLANGEBOLT, HEX FLANGE
-
140451746 CAP, SHAFT, KICK STARTERCAP, SHAFT, KICK STARTER
-
150452126 BOLT, HEX, WASHER FACEBOLT, HEX, WASHER FACE
-
160452367 WASHER, FLATWASHER, FLAT
-
170452366 SPRING, KICK START GEARSPRING, KICK START GEAR
-
180452365 GEAR, KICK START, DRIVENGEAR, KICK START, DRIVEN
