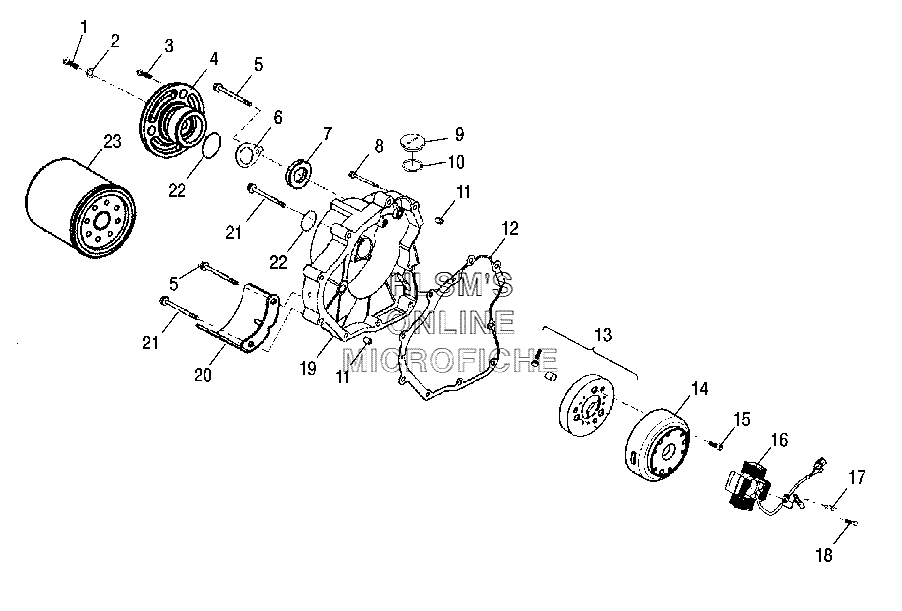

CRANKCASE COVER - RIGHT для Polaris Sawtooth Quad (A06PB20VB) (SONIC BLUE) - 2006 года выпуска
-
№АртикулНазвание
-
10452463 BOLT, HEX, FLANGEBOLT, HEX, FLANGE
-
20452464 WASHER, FLAT (COPPER)WASHER, FLAT (COPPER)
-
30452413 BOLT, HEX, FLANGEBOLT, HEX, FLANGE
-
40452458 CAP, COVER (RIGHT)CAP, COVER (RIGHT)
-
50452330 BOLT, HEX, FLANGEBOLT, HEX, FLANGE
-
60452637 RETAINER, SIGHT GLASS CRANKCASERETAINER, SIGHT GLASS CRANKCASE
-
70452333 SEAL AND SIGHT GLASSSEAL AND SIGHT GLASS
-
80452343 BOLT, HEX, FLANGEBOLT, HEX, FLANGE
-
90452460 CAPCAP
-
100452461 O-RINGO-RING
-
110452342 PIN, DOWELPIN, DOWEL
-
120452447 GASKET, COVER, CRANKGASKET, COVER, CRANK
-
130452450 CLUTCH ASSY., ONE WAYCLUTCH ASSY., ONE WAY
-
140452448 FLYWHEEL ASSY.FLYWHEEL ASSY.
-
150452457 BOLTBOLT
-
160452449 STATOR ASSY.STATOR ASSY.
-
170452456 SCREWSCREW
-
180453029 BOLT, W/WASHER, HEXBOLT, W/WASHER, HEX
-
190452446 COVER, CRANK CASE (RIGHT)COVER, CRANK CASE (RIGHT)
-
200452636 SHIELDSHIELD
-
210452401 BOLT, HEX, FLANGEBOLT, HEX, FLANGE
-
220452459 O-RINGO-RING
-
230452462 FILTER, OILFILTER, OIL
