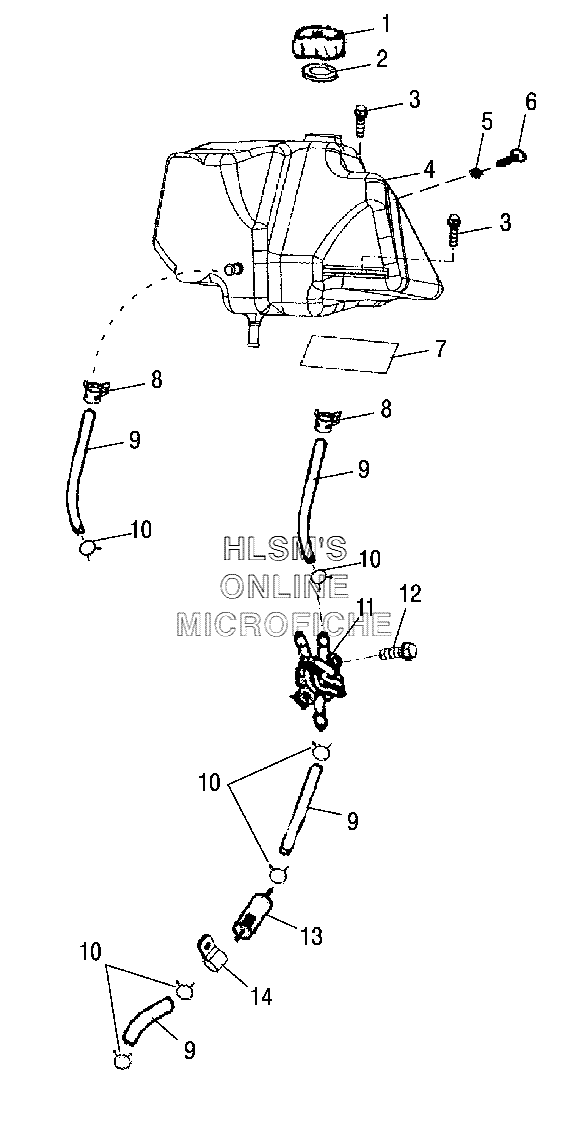

FUEL TANK для Polaris Sawtooth Quad (A06PB20VB) (SONIC BLUE) - 2006 года выпуска
-
№АртикулНазвание
-
10450974 CAP, FUEL TANK (INCL. 2)CAP, FUEL TANK (INCL. 2)
-
20452641 GASKET, CAPGASKET, CAP
-
30450340 BOLT, HEXBOLT, HEX
-
40453068 TANK, FUEL, SUVTANK, FUEL, SUV
-
50452913 WASHER, PLAINWASHER, PLAIN
-
60450676 SCREW, TAPPINGSCREW, TAPPING
-
70453270 FOIL, GAS TANKFOIL, GAS TANK
-
80450361 CLIPCLIP
-
90450363-300 LINE-FUELLINE-FUEL
-
100450054 CLIPCLIP
-
110450366 MANUAL FUEL CUP ASSY.MANUAL FUEL CUP ASSY.
-
120450701 BOLT, HEX WASHERBOLT, HEX WASHER
-
132520462 FILTER, FUEL 65 MICRONFILTER, FUEL 65 MICRON
-
140452646 CLAMPCLAMP
