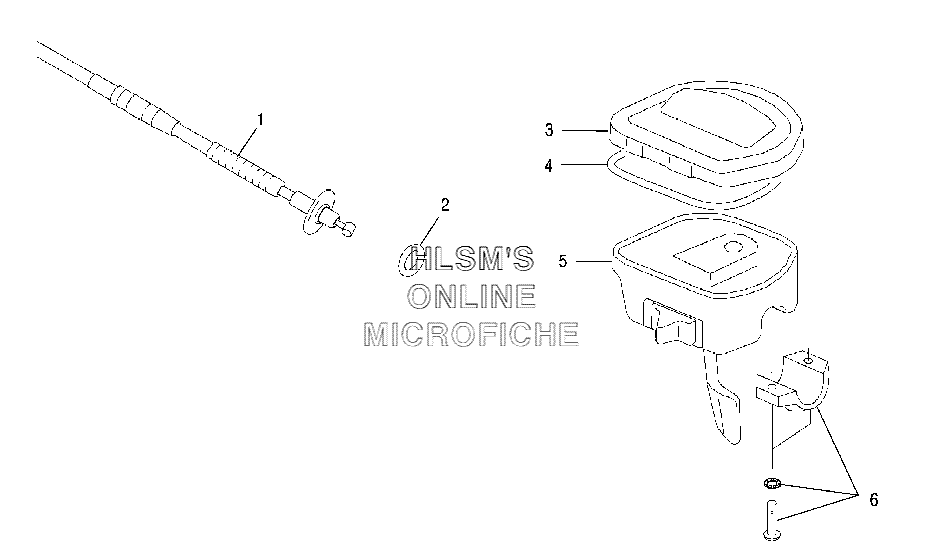

HANDLEBAR - THROTTLE ASSY. W/ CABLE для Polaris Sportsman 500 HO EFI (A06MH50AX) (CAMO GREEN METALLIC) - 2006 года выпуска
-
№АртикулНазвание
-
17081346 CABLE-THROTTLE (IF BUILT BEFORE 1/16/06)CABLE-THROTTLE (IF BUILT BEFORE 1/16/06)
-
17081353 CABLE-THROTTLE (IF BUILT AFTER 1/16/06)CABLE-THROTTLE (IF BUILT AFTER 1/16/06)
-
25410193 O-RINGO-RING
-
35434113 COVER-THROTTLE CONTROLCOVER-THROTTLE CONTROL
-
45411439 O-RINGO-RING
-
52010250 THROTTLE CONTROL ASSY., AWD (INCL. 6)THROTTLE CONTROL ASSY., AWD (INCL. 6)
-
52010244 THUMB WARMER ASSY (AT)THUMB WARMER ASSY (AT)
-
52410420 THUMB WARMER ASSY (AT)THUMB WARMER ASSY (AT)
-
62010191 THROTTLE CLAMP ASSYTHROTTLE CLAMP ASSY
