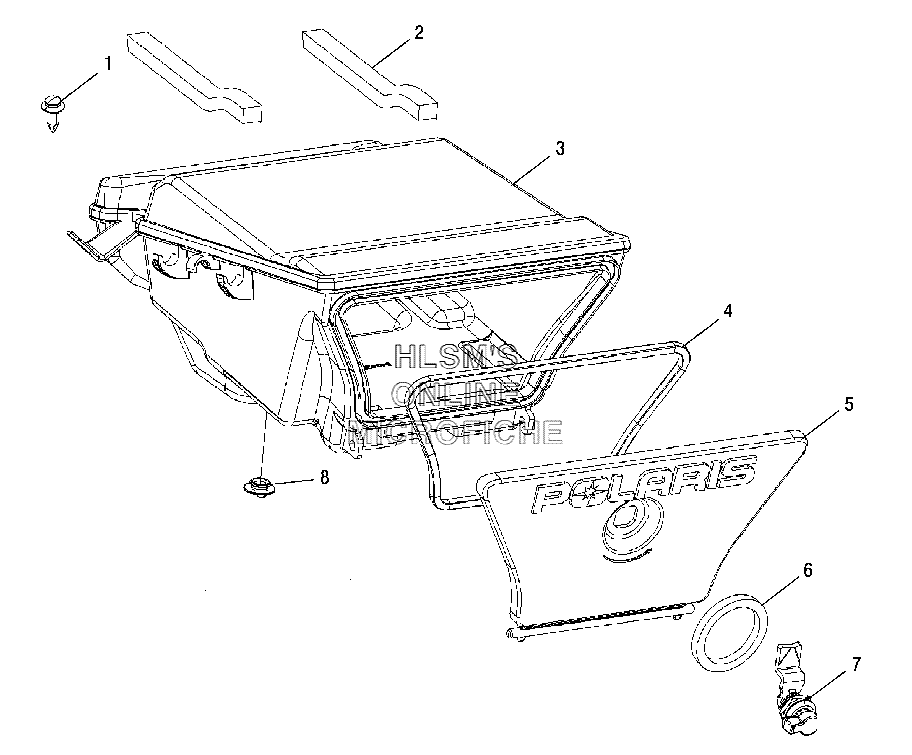

STORAGE BOX - REAR для Polaris Sportsman 500 HO EFI (A06MH50AX) (CAMO GREEN METALLIC) - 2006 года выпуска
-
№АртикулНазвание
-
17661855 RIVET-TUFLOKRIVET-TUFLOK
-
25812138 FOAM (LEFT)FOAM (LEFT)
-
31203104 BOX, REAR ASSYBOX, REAR ASSY
-
45812911 SEAL-REAR BOXSEAL-REAR BOX
-
55436349 COVER-TOOL BOXCOVER-TOOL BOX
-
67555863 WASHERWASHER
-
77081205 LATCH-1/4 TURN, CAMLATCH-1/4 TURN, CAM
-
85412981 PLUG-COMPARTMENTPLUG-COMPARTMENT
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - FRONT BRAKE LINES
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER W/ FOOT PEDAL
- BUMPER AND SHIELDS - FRONT
- CAMSHAFT W/ VALVE ASSY.
- CLUTCH - DRIVE W/ MOUNTING
- CLUTCH - DRIVEN
- CLUTCH COVER
- CONTROLS
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER
- DECALS
- DRIVESHAFT - FRONT
- DRIVESHAFT - INTERMEDIATE
- DRIVESHAFT - REAR
- ELECTRICAL COMPONENTS
- EXHAUST SYSTEM
- FENDER - FRONT
- FENDER - REAR W/ SEAT
- FUEL INJECTOR
- FUEL TANK
- GEAR SELECTOR
- GEARCASE
- GEARCASE - INTERNAL COMPONENTS
- HANDLEBAR - THROTTLE ASSY. W/ CABLE
- HANDLEBAR - W/ CONTROL ASSY.
- HEADLIGHT / BRAKELIGHT
- HEADLIGHT W/ SPEEDOMETER
- HOUSING - FRONT
- MAGNETO
- MOUNTING - ENGINE
- OIL FILTER
- OIL PUMP
- OIL TANK
- PROP SHAFT - FRONT
- RACK MOUNTING - REAR
- SHIFT CAM W/ FORK
- STARTER - RECOIL
- STARTING MOTOR
- STEERING POST
- STORAGE - FRONT
- • STORAGE BOX - REAR
- SUSPENSION - FRONT A - ARM W/ TIE RODS
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR
- SUSPENSION - TORSION BAR
- THROTTLE BODY
- TOOL KIT
- TRANSMISSION - MOUNTING
- WATER PUMP
- WHEEL - FRONT W/ HUB
- WHEEL - REAR W/ HUB
