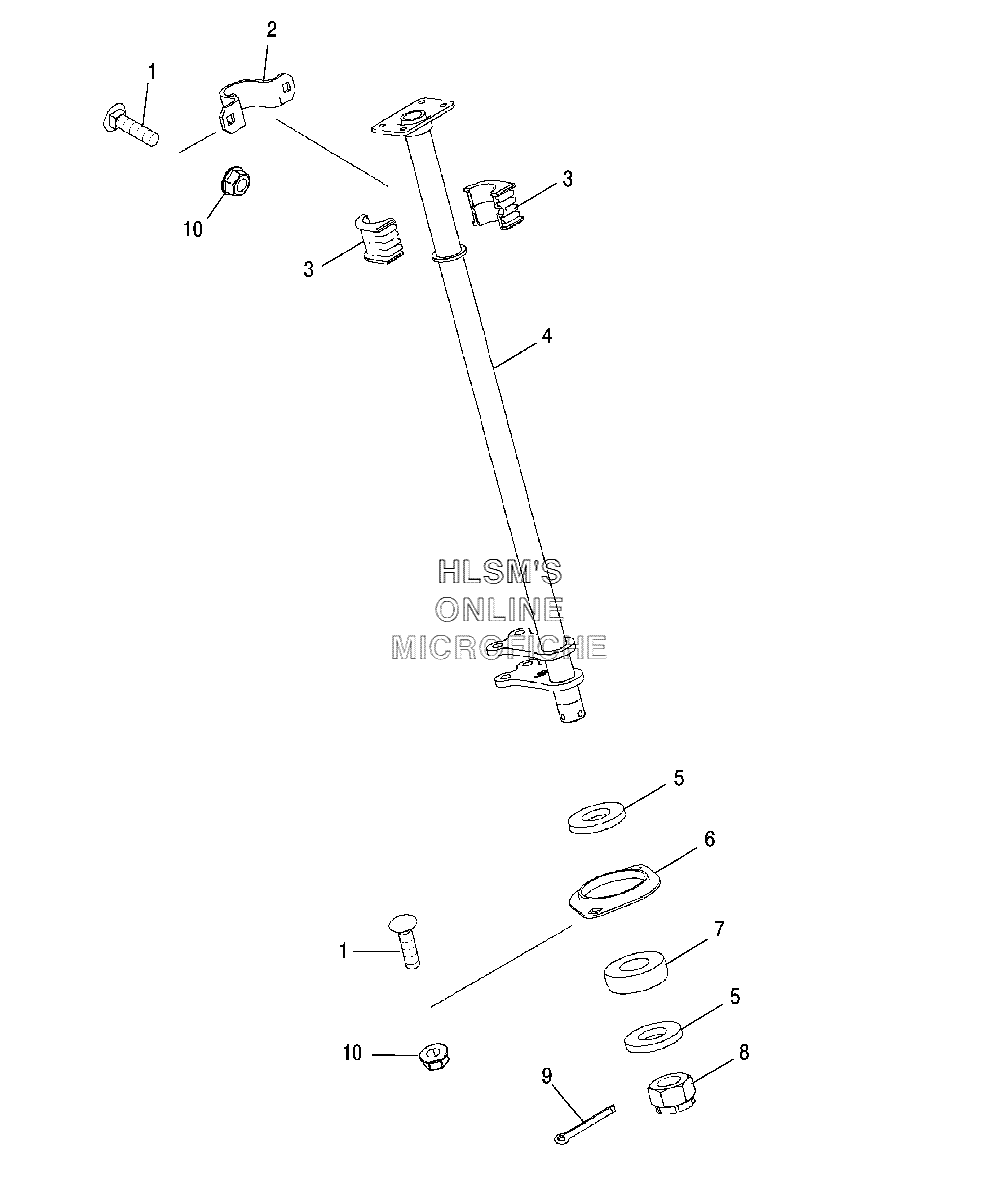

STEERING POST для Polaris Sportsman 800 EFI (06MH76AQ) (NBU SUB CAMO) - 2006 года выпуска
-
№АртикулНазвание
-
17517428 BOLTBOLT
-
25246732 BRACKET, UPPER BUSHINGBRACKET, UPPER BUSHING
-
35433866 BUSHING, UPPER (1 IN)BUSHING, UPPER (1 IN)
-
41822630-067 STEERING POST KITSTEERING POST KIT
-
57556162 BUSHING (1X1 1/2X .145)BUSHING (1X1 1/2X .145)
-
65222393 FLANGETTE (2, BOLT)FLANGETTE (2, BOLT)
-
73514352 BEARING (1XM52XM15)BEARING (1XM52XM15)
-
87547158 NUT, SLOTTED HEXNUT, SLOTTED HEX
-
97661633 PIN, COTTERPIN, COTTER
-
107542343 NUT, FLANGENUT, FLANGE
