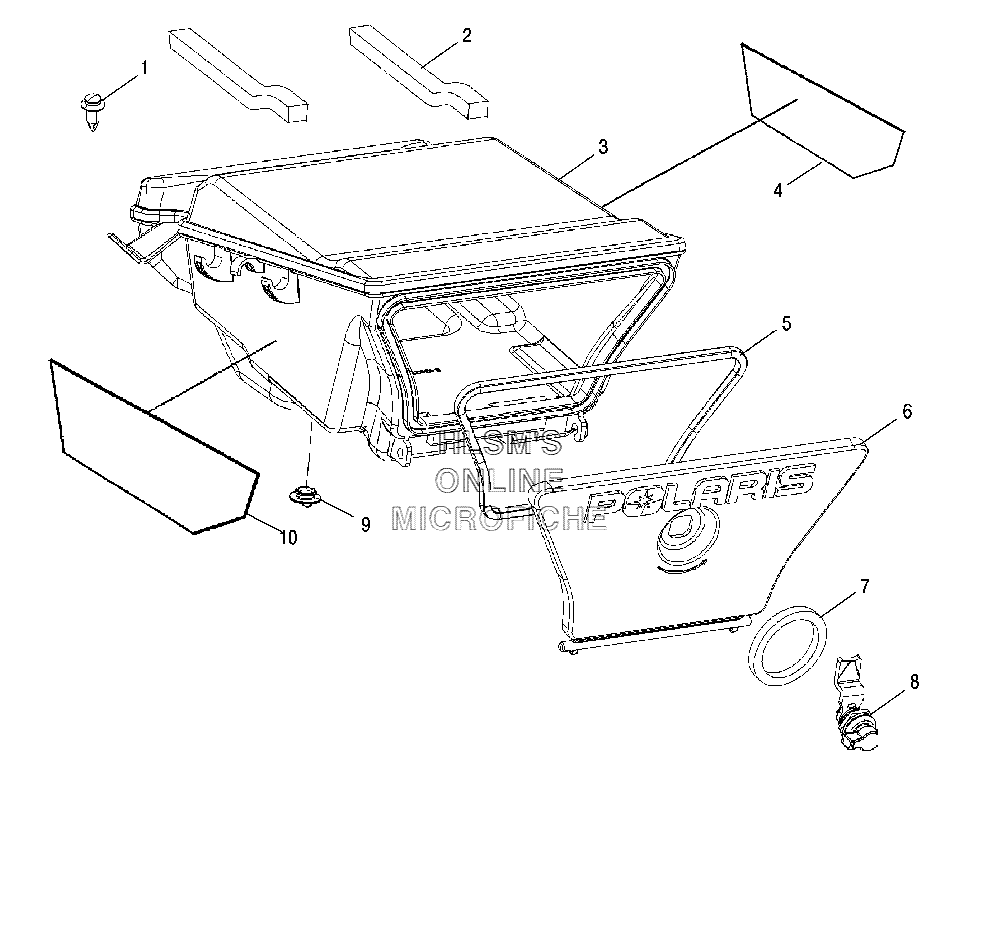

STORAGE BOX - REAR для Polaris Sportsman 800 EFI (06MH76AQ) (NBU SUB CAMO) - 2006 года выпуска
-
№АртикулНазвание
-
17661855 RIVET, TUFLOKRIVET, TUFLOK
-
25812138 FOAM (LEFT)FOAM (LEFT)
-
31203104 BOX ASSY. (REAR)BOX ASSY. (REAR)
-
45812848 FOIL, REAR CARGO BOX (RIGHT)FOIL, REAR CARGO BOX (RIGHT)
-
55812911 SEAL, REAR BOXSEAL, REAR BOX
-
65436349 COVER, TOOL BOXCOVER, TOOL BOX
-
77555863 WASHERWASHER
-
87081205 LATCHLATCH
-
95412352 PLUG-COMPARTMENT (IF BUILT BEFORE 11/07/05)PLUG-COMPARTMENT (IF BUILT BEFORE 11/07/05)
-
95412981 PLUG, COMPARTMENT (IF BUILT AFTER 11/07/05)PLUG, COMPARTMENT (IF BUILT AFTER 11/07/05)
-
105812847 FOIL, REAR CARGO BOX (LEFT)FOIL, REAR CARGO BOX (LEFT)
