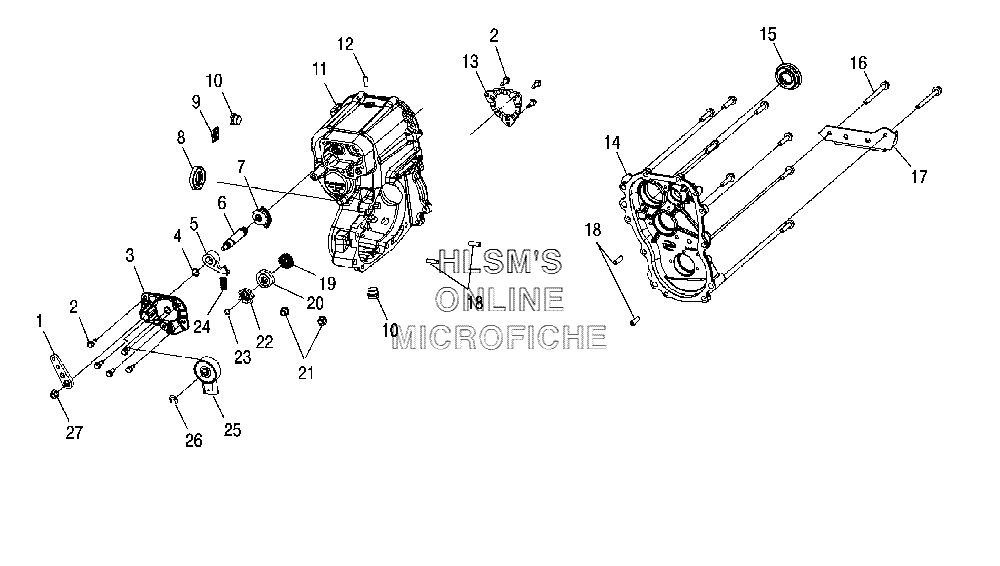

GEARCASE для Polaris Sportsman 800 EFI (06MH76AT) (NBU SUB CAMO) - 2006 года выпуска
-
№АртикулНазвание
-
13233961 NUT, LOCK HEX FLANGE NYLON 5/16NUT, LOCK HEX FLANGE NYLON 5/16
-
23233826 SCREWSCREW
-
33234188 COVER, GEARCASECOVER, GEARCASE
-
43233869 O-RINGO-RING
-
53233829 PAWL, DETENTPAWL, DETENT
-
63233831 SHAFT, SHIFTSHAFT, SHIFT
-
73233832 GEAR, SECTOR (31T CUT TO 11T)GEAR, SECTOR (31T CUT TO 11T)
-
83233788 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
93234143 LABEL, OIL FILL/LEVEL CHECKLABEL, OIL FILL/LEVEL CHECK
-
103233794 PLUG, HEX, HOLLOW, WITH O-RINGPLUG, HEX, HOLLOW, WITH O-RING
-
113234358 GEARCASEGEARCASE
-
123233524 TUBE, VENTTUBE, VENT
-
133233915 PLATE, PARK (12 FACE)PLATE, PARK (12 FACE)
-
143234221 GEARCASE (LEFT)GEARCASE (LEFT)
-
153233874 SEAL, DUAL LIPSEAL, DUAL LIP
-
163234042 SCREWSCREW
-
173234142 BRACKET, TRANSMISSION MOUNTBRACKET, TRANSMISSION MOUNT
-
183233247 PIN, DOWELPIN, DOWEL
-
193233839 GEAR, SECTOR (16 TEETH)GEAR, SECTOR (16 TEETH)
-
203233838 DISC, LOCKOUTDISC, LOCKOUT
-
213234043 NUTNUT
-
223233909 STAR, DETENTSTAR, DETENT
-
233233076 O-RINGO-RING
-
243234359 SPRINGSPRING
-
253233835 SWITCH, ROTARY, 6 PINSWITCH, ROTARY, 6 PIN
-
263233834 RING, RETAININGRING, RETAINING
-
273233906 BELLCRANK, SHIFT DRUMBELLCRANK, SHIFT DRUM
-
-1332437 GEARCASE ASSY., GEN 2, 2.70HGEARCASE ASSY., GEN 2, 2.70H
