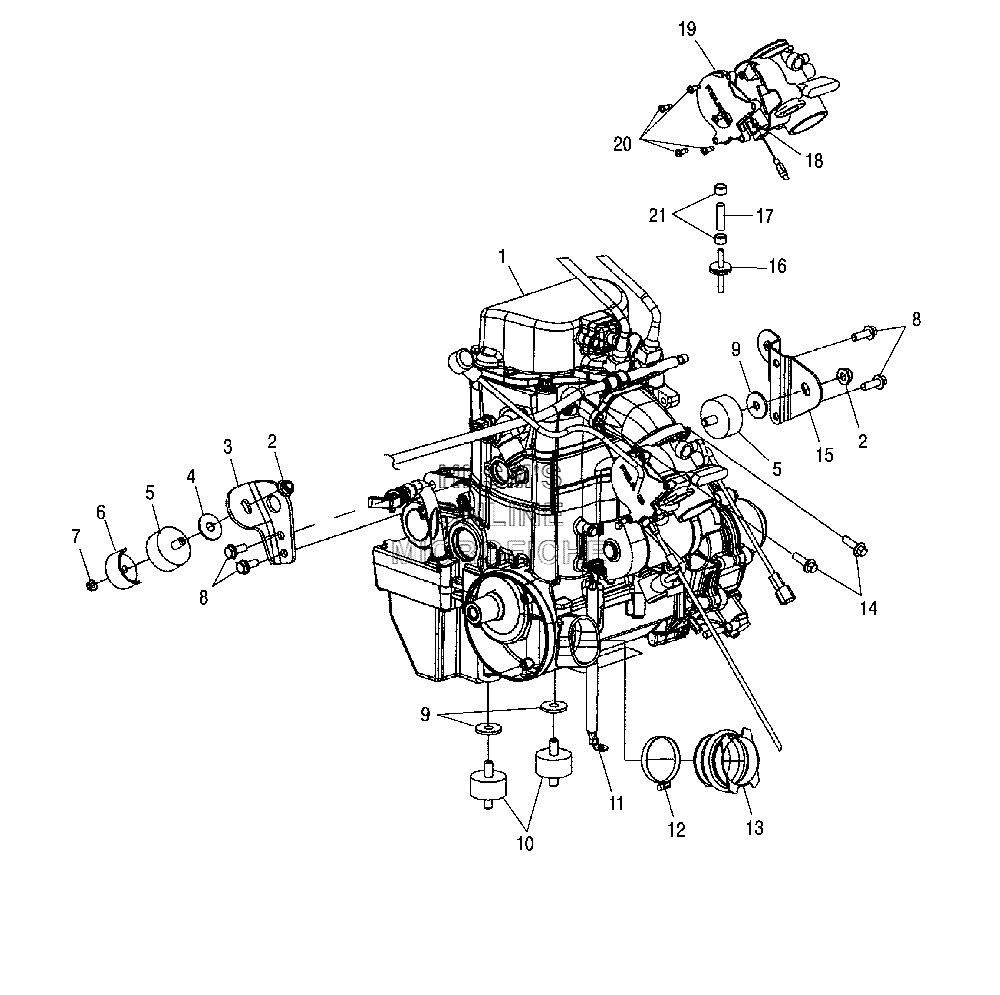

MOUNTING - ENGINE для Polaris Sportsman 800 EFI (06MH76AT) (NBU SUB CAMO) - 2006 года выпуска
-
№АртикулНазвание
-
12203066 ENGINE, SHORT BLOCKENGINE, SHORT BLOCK
-
27547108 NUTNUT
-
35244771-067 MOUNT, ENGINE (LOWER/FRONT/BLACK)MOUNT, ENGINE (LOWER/FRONT/BLACK)
-
47555823 WASHERWASHER
-
53110044 MOUNT, RUBBER (TOP)MOUNT, RUBBER (TOP)
-
65245043 BRACKET, TORQUE STOPBRACKET, TORQUE STOP
-
77547263 NUTNUT
-
87518364 BOLTBOLT
-
97555815 WASHER, FLATWASHER, FLAT
-
103021119 MOUNT, RUBBER (REAR)MOUNT, RUBBER (REAR)
-
114011139 CABLE, FRAME (BLACK) (BATTERY)CABLE, FRAME (BLACK) (BATTERY)
-
127080451 CLAMP, HOSECLAMP, HOSE
-
135412634 BOOT, CLUTCH INTAKE (2.25 I.D.)BOOT, CLUTCH INTAKE (2.25 I.D.)
-
147516734 SCREWSCREW
-
155247368 BRACKET, MOUNT, ENGINE (TOP)BRACKET, MOUNT, ENGINE (TOP)
-
167052038 VALVE, CHECKVALVE, CHECK
-
178350018-160 TUBING, ETHER ERETHNE (160CM)TUBING, ETHER ERETHNE (160CM)
-
183131514 GUIDE, THROTTLE CABLEGUIDE, THROTTLE CABLE
-
191202578 COVER AND O-RING ASSY.COVER AND O-RING ASSY.
-
203131515 SCREW, SHOULDERSCREW, SHOULDER
-
217080236 CLAMP, HOSECLAMP, HOSE
