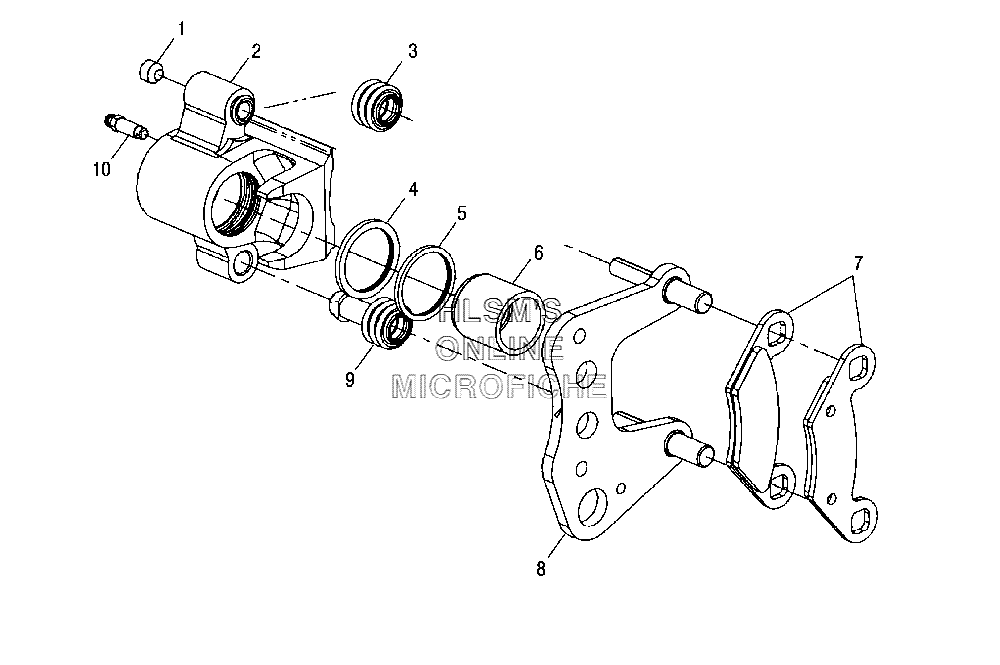

BRAKE - FRONT для Polaris Sportsman 800 EFI (06MH76AZ) (INDY RED) - 2006 года выпуска
-
№АртикулНазвание
-
17515489 SCREWSCREW
-
25134639 CALIPER, BRAKE (LEFT)CALIPER, BRAKE (LEFT)
-
25134640 CALIPER, BRAKE (RIGHT)CALIPER, BRAKE (RIGHT)
-
21930642 BOOT KIT, FRONT BRAKEBOOT KIT, FRONT BRAKE
-
35410494 BOOT, PIN SEAL (IF BUILT BEFORE 10/17/05)BOOT, PIN SEAL (IF BUILT BEFORE 10/17/05)
-
35412506 BOOT, PIN SEAL (IF BUILT AFTER 10/17/05)BOOT, PIN SEAL (IF BUILT AFTER 10/17/05)
-
45410780 RING, SQUARE, MOLDED (.103X.134)RING, SQUARE, MOLDED (.103X.134)
-
55410779 RING, SQUARE, MOLDED (.094)RING, SQUARE, MOLDED (.094)
-
65132294 PISTON AND SEAL KITPISTON AND SEAL KIT
-
72202412 FRONT BRAKE PAD KITFRONT BRAKE PAD KIT
-
81910411 MOUNT, ASM, CALIPERMOUNT, ASM, CALIPER
-
95410495 BOOT, BUSHING (IF BUILT BEFORE 10/17/05)BOOT, BUSHING (IF BUILT BEFORE 10/17/05)
-
95412505 BOOT, PIN BUSHING (IF BUILT AFTER 10/17/05)BOOT, PIN BUSHING (IF BUILT AFTER 10/17/05)
-
107080352 SCREW, BLEEDERSCREW, BLEEDER
-
-1910841 CALIPER ASSY., BRAKE (LEFT) (INCL. 1, 6, 8, 9)CALIPER ASSY., BRAKE (LEFT) (INCL. 1, 6, 8, 9)
-
-1910842 CALIPER ASSY., BRAKE (RIGHT) (INCL. 1, 6, 8, 9)CALIPER ASSY., BRAKE (RIGHT) (INCL. 1, 6, 8, 9)
-
-1930665 PISTON AND SEAL KIT (INCL. 4, 6)PISTON AND SEAL KIT (INCL. 4, 6)
