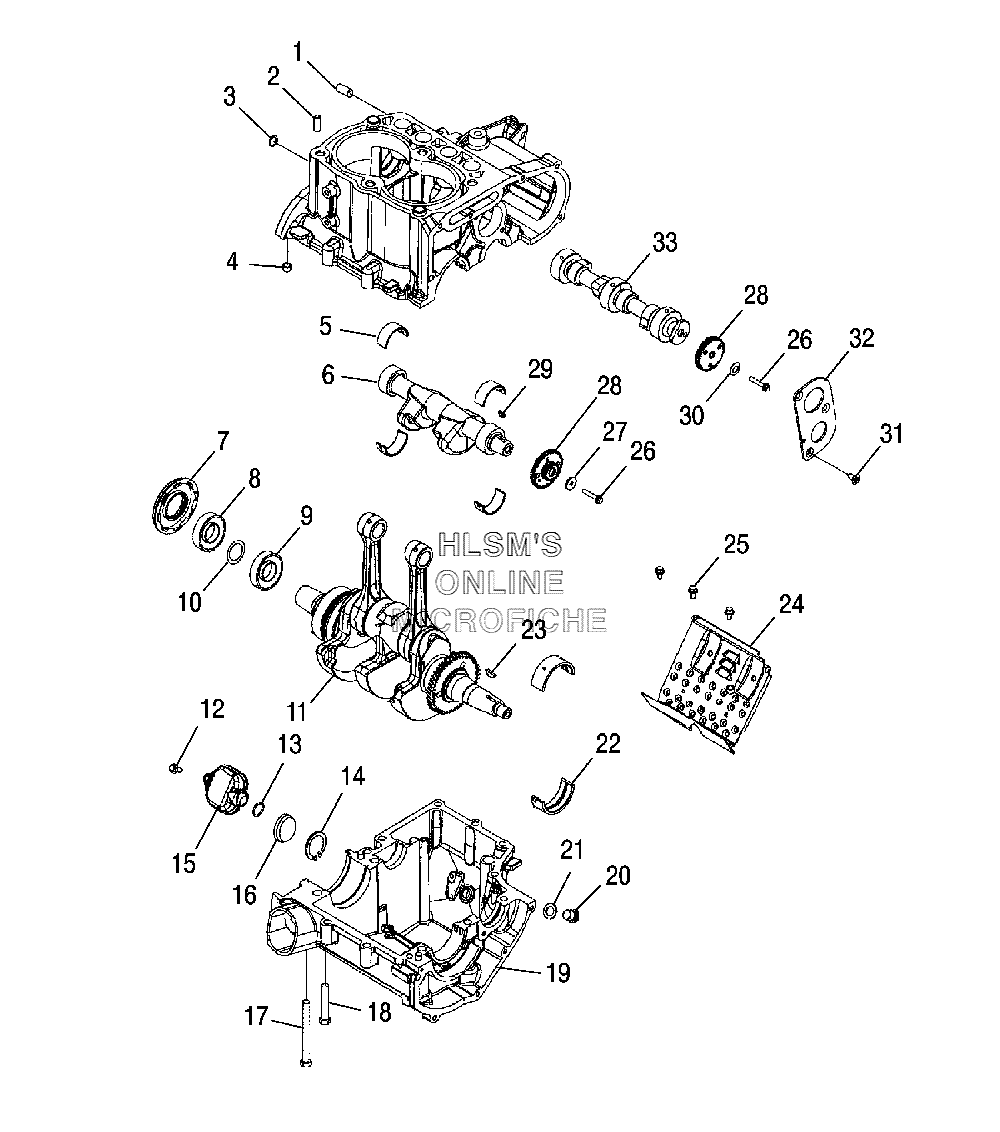

CRANKCASE / CRANKSHAFT для Polaris Sportsman 800 EFI (06MH76AZ) (INDY RED) - 2006 года выпуска
-
№АртикулНазвание
-
17518007 PLUG, HEX SOCKETPLUG, HEX SOCKET
-
27661175 DOWELDOWEL
-
37051530 PLUG, EXPANSION (19MM)PLUG, EXPANSION (19MM)
-
47663001 PIN, DOWELPIN, DOWEL
-
55132753 BEARING, JOURNAL BALNCE SHAFTBEARING, JOURNAL BALNCE SHAFT
-
65134837 SHAFT, BALANCESHAFT, BALANCE
-
75412676 SEAL, FLANGESEAL, FLANGE
-
83514361 BEARING, BALLBEARING, BALL
-
93514318 BEARING, BALLBEARING, BALL
-
107556194 BUSHINGBUSHING
-
112202916 CRANKSHAFT KIT (IF BUILT BEFORE 10/03/05)CRANKSHAFT KIT (IF BUILT BEFORE 10/03/05)
-
112203068 CRANKSHAFT KIT (IF BUILT AFTER 10/03/05)CRANKSHAFT KIT (IF BUILT AFTER 10/03/05)
-
127516603 BOLTBOLT
-
135812016 SEAL, O-RINGSEAL, O-RING
-
147710512 RING, RETAININGRING, RETAINING
-
151202663 OIL PICKUP ASSY.OIL PICKUP ASSY.
-
163060004 PLUG, EXPANSION, 48MMPLUG, EXPANSION, 48MM
-
177517792 SCREWSCREW
-
187517793 SCREWSCREW
-
192202864 CRANKCASE KITCRANKCASE KIT
-
207052306 PLUG, SOCKETPLUG, SOCKET
-
215812232 WASHER, COPPERWASHER, COPPER
-
223585704 BEARING, MAIN JOURNALBEARING, MAIN JOURNAL
-
237721117 KEY, WOODRUFFKEY, WOODRUFF
-
245211785 PLATE, BAFFLE, CRANKCASEPLATE, BAFFLE, CRANKCASE
-
257518045 SCREWSCREW
-
267517865 SCREWSCREW
-
277555982 WASHER, RETAININGWASHER, RETAINING
-
282203106 GEAR SET KITGEAR SET KIT
-
297721131 KEY, WOOD RUFF, #404KEY, WOOD RUFF, #404
-
307556183 WASHER, SPRINGWASHER, SPRING
-
317517598 SCREWSCREW
-
325244286 PLATE, THRUSTPLATE, THRUST
-
332202918 CAMSHAFT KITCAMSHAFT KIT
