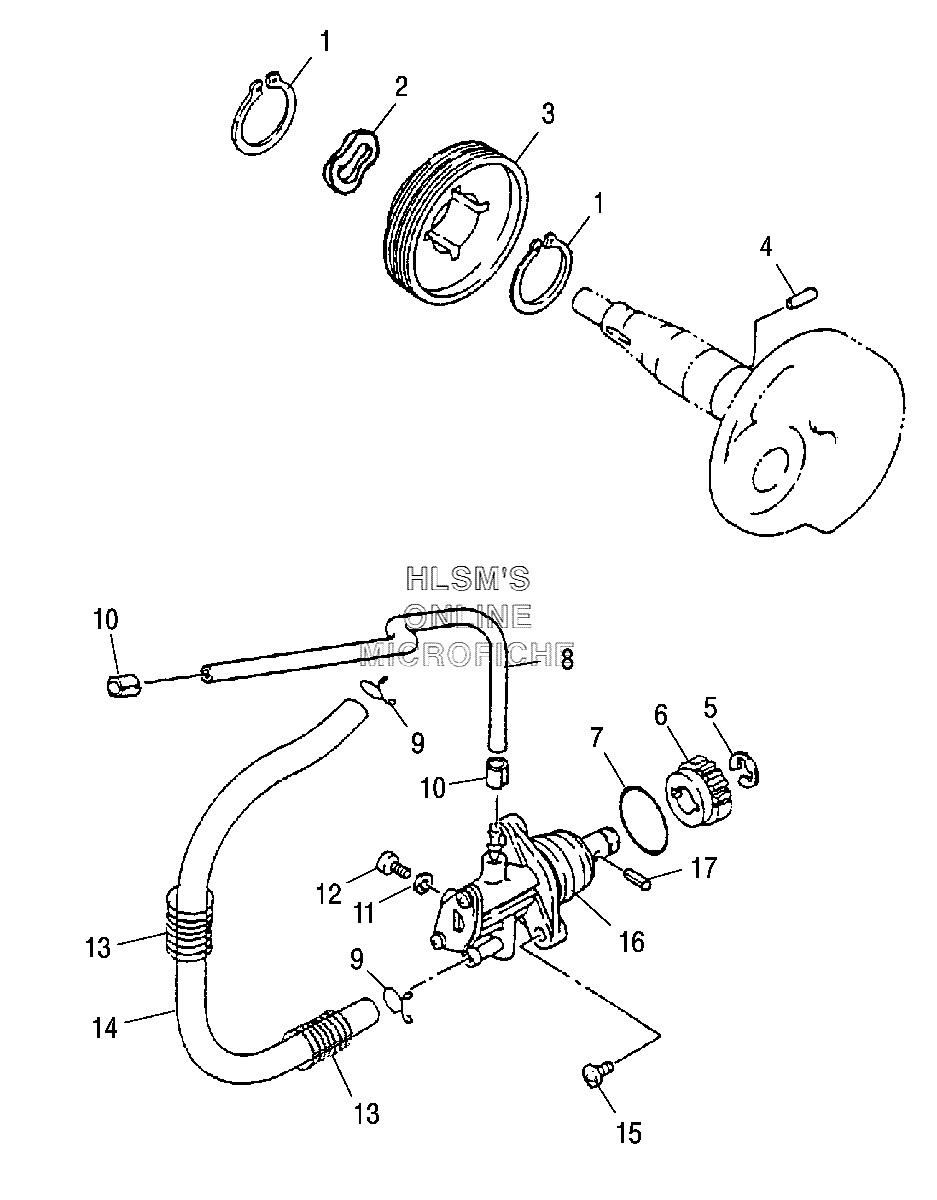

OIL PUMP для Polaris Sportsman 90 (A06FA09CB) (INDY RED) - 2006 года выпуска
-
№АртикулНазвание
-
10450060 CIRCLIP EXTERNALCIRCLIP EXTERNAL
-
20450655 WASHER WAVEWASHER WAVE
-
30450058 GEAR DRIVE, OIL PUMPGEAR DRIVE, OIL PUMP
-
40450059 PIN DOWELPIN DOWEL
-
50450052 CIRCLIP EXTERNALCIRCLIP EXTERNAL
-
60450050 WORMWHEEL OILPMPWORMWHEEL OILPMP
-
70450048 O-RINGO-RING
-
80450055 TUBE OILTUBE OIL
-
90450054 CLIPCLIP
-
100450056 CLIPCLIP
-
110450046 WASHERWASHER
-
120450884 BOLT PHILLIPSBOLT PHILLIPS
-
130450061 SPRING PROTECEIVE, OIL PIPESPRING PROTECEIVE, OIL PIPE
-
140450053 TUBE OIL,TUBE OIL,
-
150450057 BOLT PAN, PHILLIPBOLT PAN, PHILLIP
-
160450846 OIL PUMP ASSY. (INCL. 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 17)OIL PUMP ASSY. (INCL. 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 17)
-
170450051 PIN SHAFTPIN SHAFT
