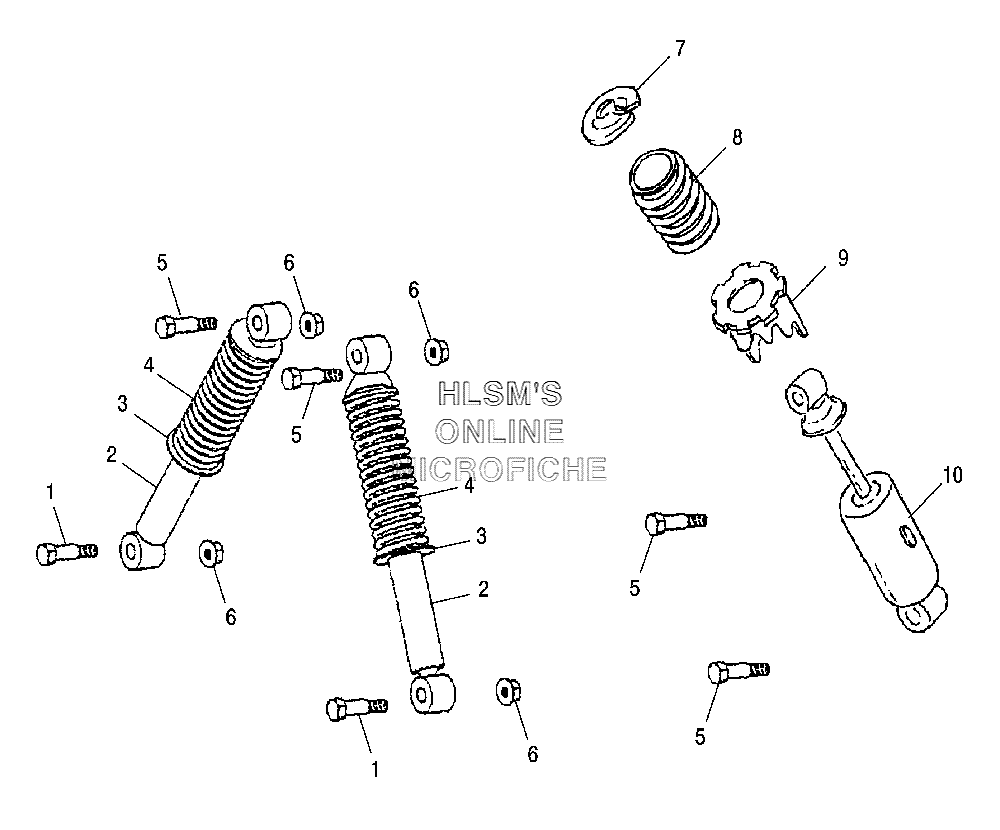

SUSPENSION для Polaris Sportsman 90 (A06FA09CB) (INDY RED) - 2006 года выпуска
-
№АртикулНазвание
-
10450868 BOLT HEXBOLT HEX
-
20450714 TUBE INNER, FRONTTUBE INNER, FRONT
-
30451675 COLLAR, ADJUSTMENT, SPRING (REAR)COLLAR, ADJUSTMENT, SPRING (REAR)
-
40452183-293 SPRING, SUSPENSION (FRONT/INDY RED)SPRING, SUSPENSION (FRONT/INDY RED)
-
50450380 BOLT HEXBOLT HEX
-
60450249 NUT FLANGENUT FLANGE
-
70450929 RETAINER SPRINGRETAINER SPRING
-
80452181-293 SPRING REAR SUSPENSION (INDY RED)SPRING REAR SUSPENSION (INDY RED)
-
90450894 COLLAR SPRING ADJUSTMENTCOLLAR SPRING ADJUSTMENT
-
100451078 SHOCK, REARSHOCK, REAR
