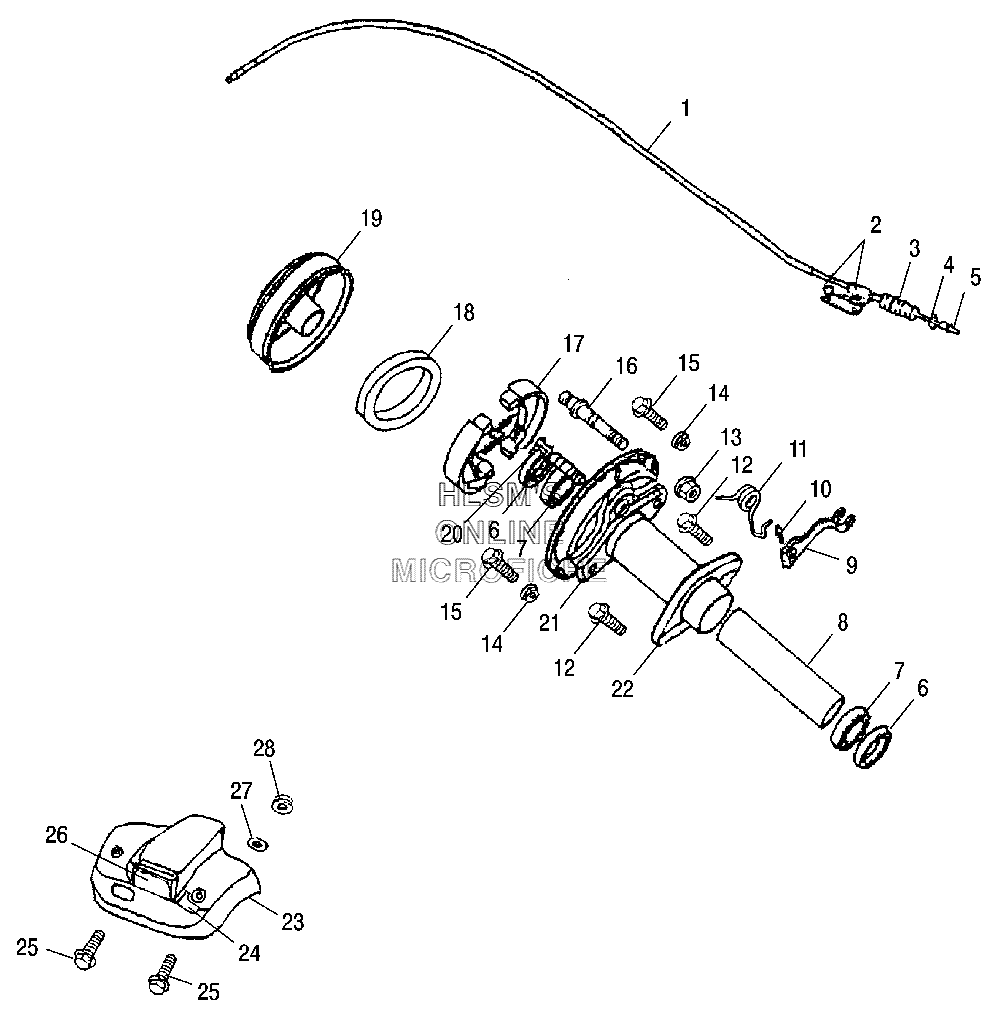

BRAKE - REAR для Polaris Sportsman 90 (A06FA09CC) (NBU CAMO) - 2006 года выпуска
-
№АртикулНазвание
-
10450438 CABLE, BRAKE (REAR)CABLE, BRAKE (REAR)
-
20450268 NUT FLANGENUT FLANGE
-
30450435 SPRING CABLE, BRAKE (REAR)SPRING CABLE, BRAKE (REAR)
-
40450437 FIXTURE BRAKE (REAR)FIXTURE BRAKE (REAR)
-
50451079 NUT, ADJUST, BRAKENUT, ADJUST, BRAKE
-
60450430 SEAL OILSEAL OIL
-
70450429 BEARING, NEEDLEBEARING, NEEDLE
-
80450428 TUBE, SPACERTUBE, SPACER
-
90450432 BRAKE, ASSY (REAR)BRAKE, ASSY (REAR)
-
100450433 BOLT HEXAGONBOLT HEXAGON
-
110450453 SPRING, BRAKE ARM (REAR)SPRING, BRAKE ARM (REAR)
-
120450451 BOLT HEXAGONBOLT HEXAGON
-
130450881 NUT LOCK, NYLONNUT LOCK, NYLON
-
140450529 NUT FLANGENUT FLANGE
-
150450452 BOLT, HEXAGONBOLT, HEXAGON
-
160450854 SHAFT FIX, BRAKE (REAR)SHAFT FIX, BRAKE (REAR)
-
170450434 SHOE, BRAKE (REAR)SHOE, BRAKE (REAR)
-
180450442 RUBBER, PROTECTIVERUBBER, PROTECTIVE
-
190450441 DRUM, BRAKE (REAR)DRUM, BRAKE (REAR)
-
200450431 SHAFT, CAM, BRAKE (REAR)SHAFT, CAM, BRAKE (REAR)
-
210450440 PLATE, BRAKE (REAR)PLATE, BRAKE (REAR)
-
220450427 SEAT, FIXED, AXLE (REAR)SEAT, FIXED, AXLE (REAR)
-
230450751 COVER (REAR)COVER (REAR)
-
247171069 DECALDECAL
-
250450340 BOLT HEXAGONBOLT HEXAGON
-
260450446 REFLECTOR (REAR)REFLECTOR (REAR)
-
270450643 WASHER PLAINWASHER PLAIN
-
280450447 NUT FLANGENUT FLANGE
