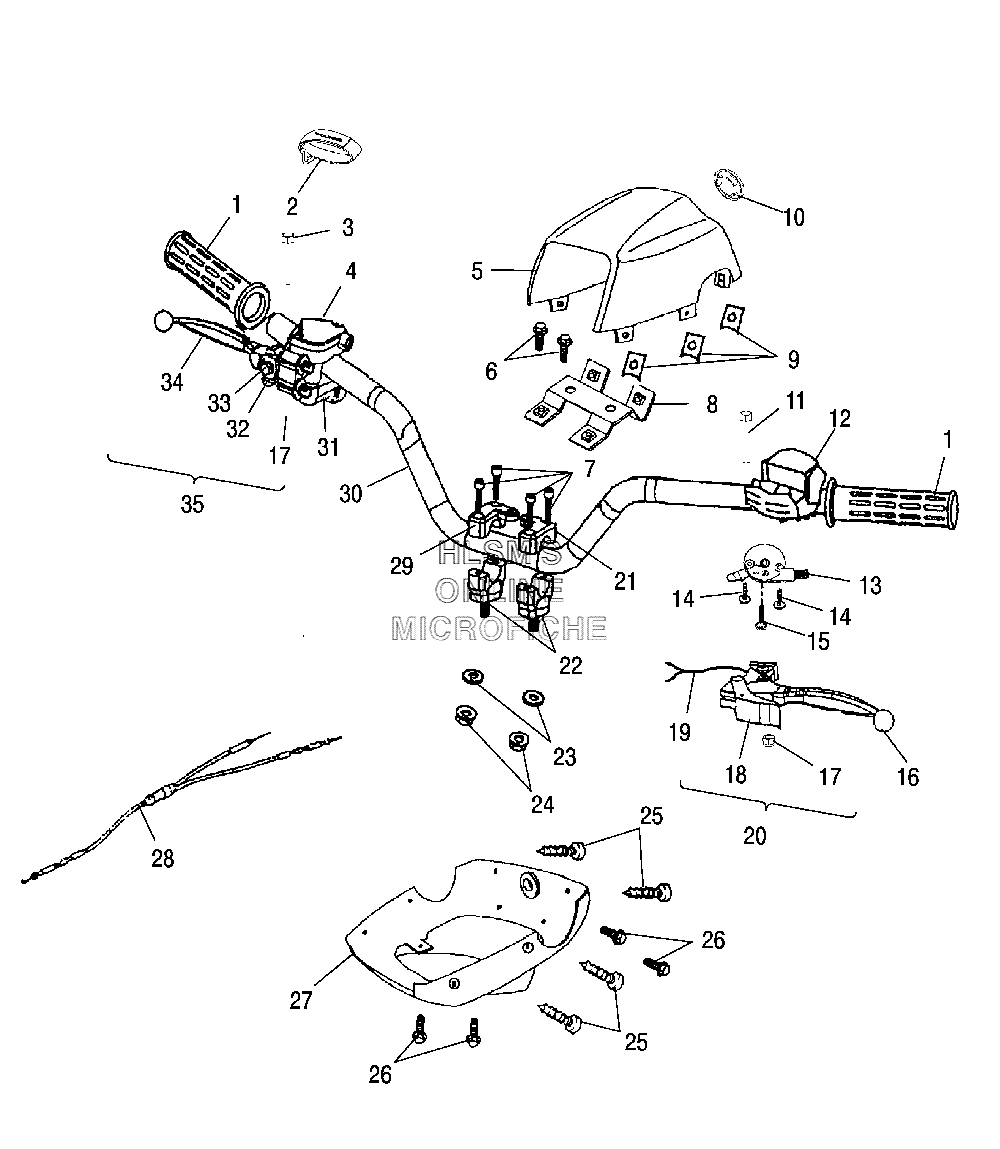

HANDLEBAR для Polaris Sportsman 90 (A06FA09CC) (NBU CAMO) - 2006 года выпуска
-
№АртикулНазвание
-
10451097 GRIP HAND(2)GRIP HAND(2)
-
27080891 TETHER, WRIST BANDTETHER, WRIST BAND
-
30450806 BOLT BRAKE LVR (RIGHT)BOLT BRAKE LVR (RIGHT)
-
40451040 THROTTLE ASSY.THROTTLE ASSY.
-
50451165-455 POD UPPER (NBU CAMO)POD UPPER (NBU CAMO)
-
60450556 BOLT HEXBOLT HEX
-
70450148 BOLT SOCKET, HEXBOLT SOCKET, HEX
-
80450468 PLATE, FIXED, PROTICTIVE COVERPLATE, FIXED, PROTICTIVE COVER
-
90450752 U NUTU NUT
-
100451707 BEZEL, SPEEDOMETERBEZEL, SPEEDOMETER
-
110450807 BOLT BRAKE LVR (LEFT)BOLT BRAKE LVR (LEFT)
-
120453359 SWITCH ASSY. (LEFT)SWITCH ASSY. (LEFT)
-
130451037 CHOKE ASSY., MANUAL (INCL. 14, 15)CHOKE ASSY., MANUAL (INCL. 14, 15)
-
140451148 BOLTBOLT
-
150451149 BOLTBOLT
-
160450693 LEVER, BRAKE (LEFT)LEVER, BRAKE (LEFT)
-
170450808 NUT LOCKNUT LOCK
-
180450692 HAND BRAKE LOCKHAND BRAKE LOCK
-
190450836 HARNESS, SENSOR SWITCHHARNESS, SENSOR SWITCH
-
200450463 LEVER ASSY (LEFT) (INCL. 11, 16, 17, 18)LEVER ASSY (LEFT) (INCL. 11, 16, 17, 18)
-
210450460 CLAMP (LEFT/TOP)CLAMP (LEFT/TOP)
-
220450459 CLAMP SADDLE, HANDLE BARCLAMP SADDLE, HANDLE BAR
-
230450279 WASHERWASHER
-
240450276 NUT LOCKNUT LOCK
-
250451132 SCREW-TAPPINGSCREW-TAPPING
-
260450667 BOLT, PHILLIPSBOLT, PHILLIPS
-
270452185 POD HANDLEBAR (LOWER)POD HANDLEBAR (LOWER)
-
280450471 CABLE THROTTLECABLE THROTTLE
-
290450461 CLAMP (RIGHT/TOP)CLAMP (RIGHT/TOP)
-
300451161 HANDLEBAR (SILVER)HANDLEBAR (SILVER)
-
310452202 ARM THROTTLEARM THROTTLE
-
320450994 BRACKET BRAKE CABLEBRACKET BRAKE CABLE
-
330450309 BOLT HEXBOLT HEX
-
340450694 LEVER, BRAKE (RIGHT)LEVER, BRAKE (RIGHT)
-
350451096 RIGHT LEVER ASSY. (INCL. 4, 32 34)RIGHT LEVER ASSY. (INCL. 4, 32 34)
