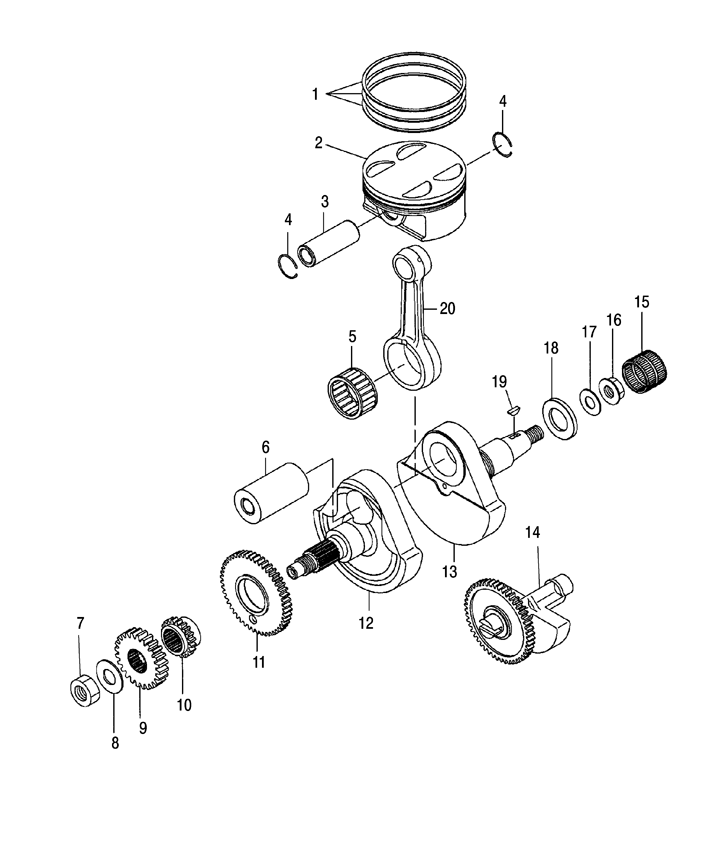

CRANKSHAFT W/ PISTON для Polaris OUTLAW 500 (A07GP50AB) (BLACK METALLIC) - 2007 года выпуска
-
№АртикулНазвание
-
13089444 SET,PISTON,RING, STANDARDSET,PISTON,RING, STANDARD
-
23089776 SET, PISTON, STANDARD (INCLUDES 4)SET, PISTON, STANDARD (INCLUDES 4)
-
33087971 PISTON PINPISTON PIN
-
43085534 CLIPCLIP
-
53087963 BEARING,LARGE ENDBEARING,LARGE END
-
63089591 ASM.,CRANK PINASM.,CRANK PIN
-
73087967 NUTNUT
-
83087968 WASHERWASHER
-
93089595 GEAR,PRIMARY,DRIVEGEAR,PRIMARY,DRIVE
-
103089594 SPROCKET,CRANKSPROCKET,CRANK
-
113089593 GEAR,BALANCER,DRIVEGEAR,BALANCER,DRIVE
-
123089590 CRANKSHAFT 2CRANKSHAFT 2
-
133089588 CRANKSHAFT ASSY (INCLUDES 5,6,11 TO 13,20)CRANKSHAFT ASSY (INCLUDES 5,6,11 TO 13,20)
-
133089589 CRANKSHAFT 1CRANKSHAFT 1
-
143089597 BALANCER SHAFT ASSYBALANCER SHAFT ASSY
-
153087976 BEARING,NEEDLEBEARING,NEEDLE
-
163087974 NUT,FLANGENUT,FLANGE
-
173087975 WASHERWASHER
-
183089598 SPACERSPACER
-
193240168 KEY, WOODRUFF,KEY, WOODRUFF,
-
203089592 ROD,CONNECTINGROD,CONNECTING
