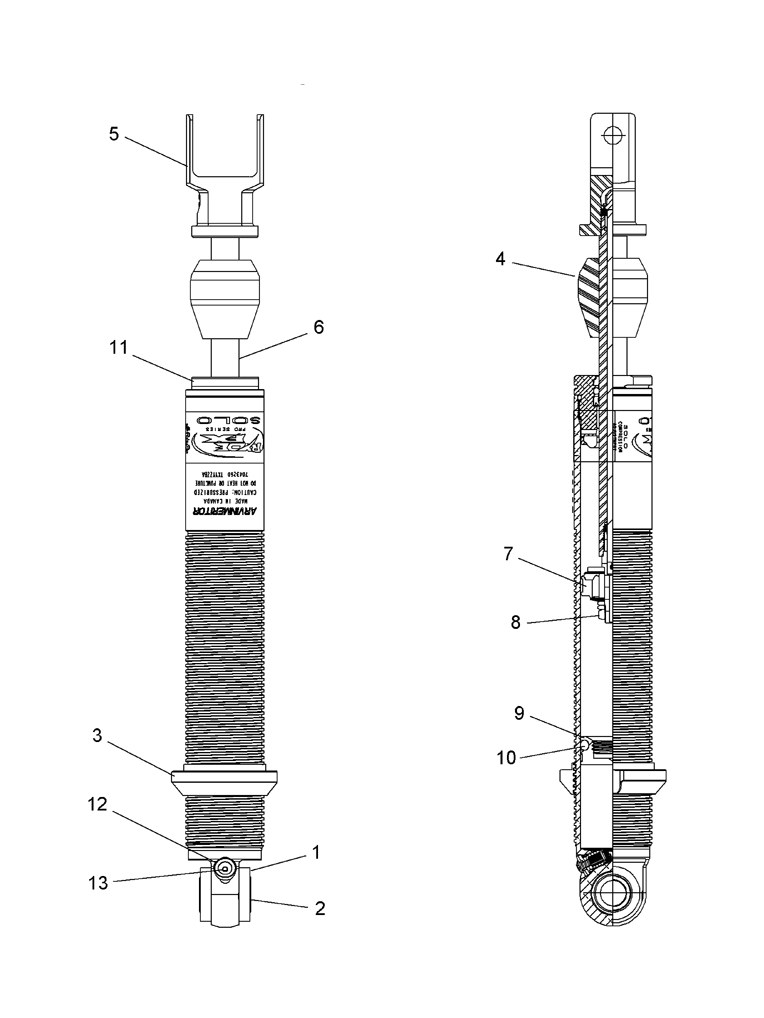

SUSPENSI0N - REAR FOX SHOCK для Polaris OUTLAW 500 (A07GP50AB) (BLACK METALLIC) - 2007 года выпуска
-
№АртикулНазвание
-
-7043260 SHOCK-REAR,ARVIN,COMP.ADJ.SHOCK-REAR,ARVIN,COMP.ADJ.
-
11700075 BUSHINGBUSHING
-
21700240 SLEEVESLEEVE
-
31700234 RETAINER-SPRING,PLASTICRETAINER-SPRING,PLASTIC
-
41700230 BUMPERBUMPER
-
51700241 UPPER MOUNTUPPER MOUNT
-
61700242 SHAFT ASMSHAFT ASM
-
71700244 PISTONPISTON
-
71700236 WEAR BANDWEAR BAND
-
71700077 TOP-OUT WASHERTOP-OUT WASHER
-
71700078 BACK-UP WASHERBACK-UP WASHER
-
81700057 NUTNUT
-
91700023 IFPIFP
-
101700048 IFP-O-RINGIFP-O-RING
-
111700243 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
121700076 PRESS VALVE ASSYPRESS VALVE ASSY
-
131700056 VALVE SCREWVALVE SCREW
