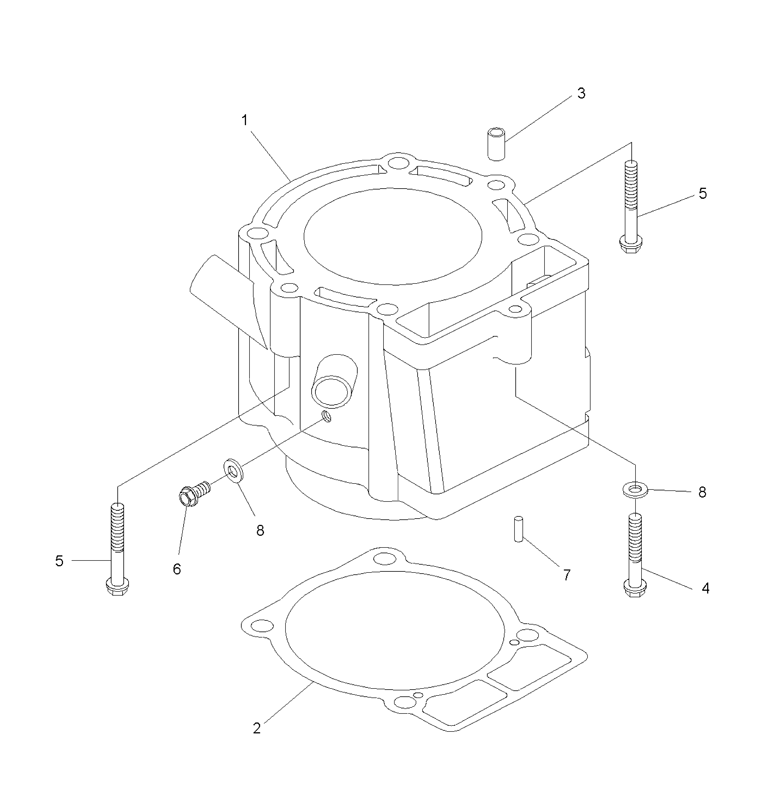

CYLINDER для Polaris OUTLAW 525 (A07GP52AA) (BLACK METALLIC) - 2007 года выпуска
-
№АртикулНазвание
-
12203409 CYLINDER 95MM SORT I 525ATV (CYLINDER SORT MUST MATCH PISTON)CYLINDER 95MM SORT I 525ATV (CYLINDER SORT MUST MATCH PISTON)
-
12203409 CYLINDER 95MM SORT 525ATV (CYLINDER SORT MUST MATCH PISTON)CYLINDER 95MM SORT 525ATV (CYLINDER SORT MUST MATCH PISTON)
-
25813167 GASKET CYLINDER BASE 0.5MM 525ATVGASKET CYLINDER BASE 0.5MM 525ATV
-
37661933 DOWEL LOCATING 6X8X11.5MMDOWEL LOCATING 6X8X11.5MM
-
47518742 SCREW, HEADSCREW, HEAD
-
57518728 SCREW, HEADSCREW, HEAD
-
67518746 SCREW, HEADSCREW, HEAD
-
77661936 NEEDLE ROLLER DIN5402 2.5X9.8NEEDLE ROLLER DIN5402 2.5X9.8
-
87556415 WASHER COPPER DIN7603 6X10X1MMWASHER COPPER DIN7603 6X10X1MM
