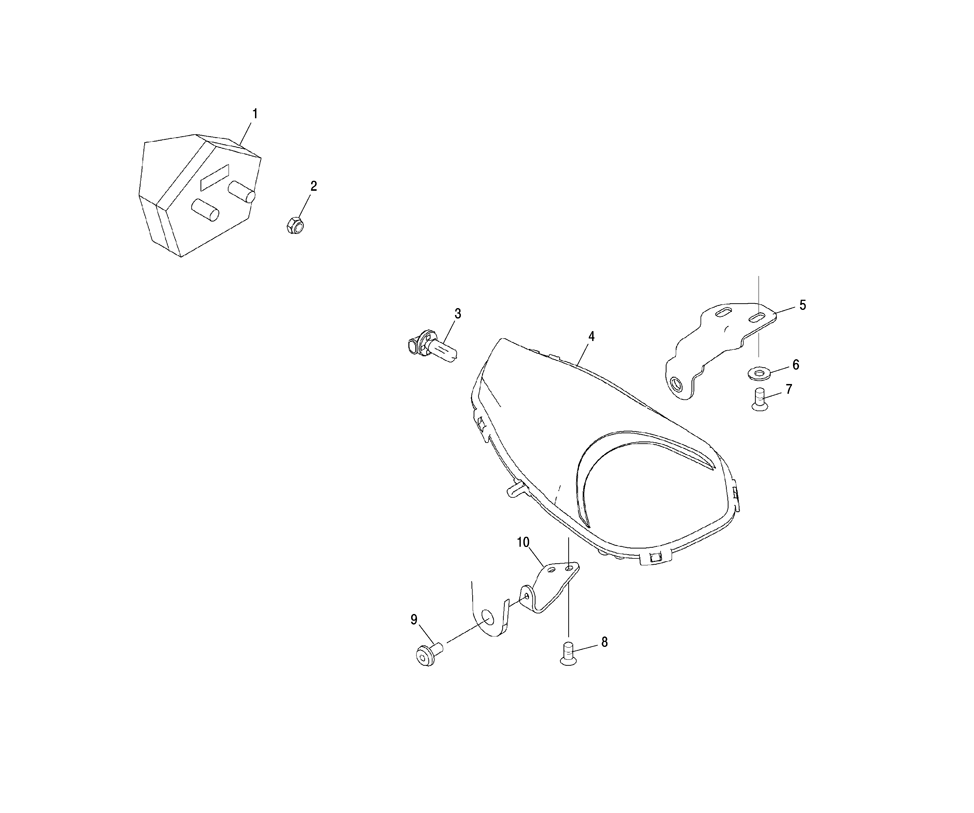

HEADLIGHT - TAIL LIGHT для Polaris OUTLAW 525 (A07GP52AA) (BLACK METALLIC) - 2007 года выпуска
-
№АртикулНазвание
-
12410627 TAILLIGHT ASSY, LEDTAILLIGHT ASSY, LED
-
27670054 NUT, PUSH ONNUT, PUSH ON
-
34010894 BULB 35/35 WATT, HEAD LAMPBULB 35/35 WATT, HEAD LAMP
-
42410635 HEADLIGHT ASSY (LEFT) (INCLUDES 3)HEADLIGHT ASSY (LEFT) (INCLUDES 3)
-
42410636 HEADLIGHT ASSY (RIGHT) (INCLUDES 3)HEADLIGHT ASSY (RIGHT) (INCLUDES 3)
-
55246589 BRKT HEADLIGHT (LEFT)BRKT HEADLIGHT (LEFT)
-
55246590 BRKT HEADLIGHT (RIGHT)BRKT HEADLIGHT (RIGHT)
-
67571602 WASHERWASHER
-
77512076 SCREWSCREW
-
87517910 SCREWSCREW
-
97512084 SCREWSCREW
-
105246591 BRACKET HEADLIGHT ADJUSTER (LEFT)BRACKET HEADLIGHT ADJUSTER (LEFT)
-
105246592 BRACKET HEADLIGHT ADJUSTER (RIGHT)BRACKET HEADLIGHT ADJUSTER (RIGHT)
