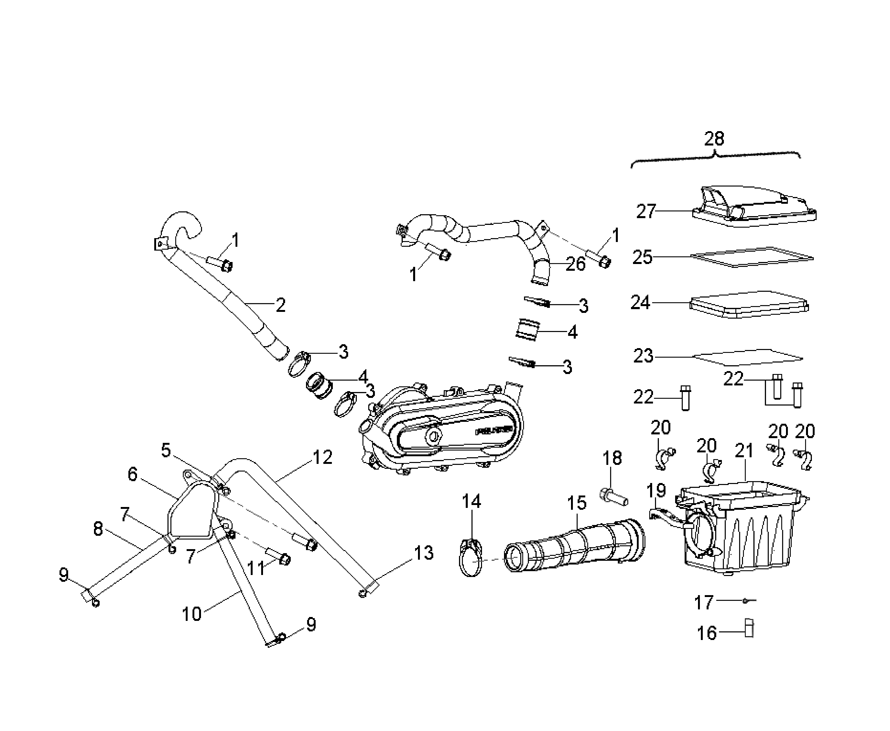

AIR BOX ASSY. для Polaris OUTLAW 90 (A07KA09AB) (BLACK METALLIC) - 2007 года выпуска
-
№АртикулНазвание
-
10450824 BOLT W/WSHR, HEXBOLT W/WSHR, HEX
-
20453331 DUCT INLET, CLUTCH COVERDUCT INLET, CLUTCH COVER
-
30453655 CLAMPCLAMP
-
40453656 BOOT DUCTBOOT DUCT
-
50453187 CLIP RETAININGCLIP RETAINING
-
60453184 SEPARATOR OILSEPARATOR OIL
-
70450865 FUEL LINE/CLIP ASMFUEL LINE/CLIP ASM
-
80453674 TUBE OILTUBE OIL
-
90453516 CLIP OIL SEPARATORCLIP OIL SEPARATOR
-
100453724 TUBE OILTUBE OIL
-
110450899 BOLT HEXBOLT HEX
-
120453657 TUBE BREATHER, VENTILATEDTUBE BREATHER, VENTILATED
-
130452795 CLIPCLIP
-
140453658 CLAMPCLAMP
-
150453659 BOOT AIR CLEANERBOOT AIR CLEANER
-
160453725 HOSE DRAINHOSE DRAIN
-
170453661 CLIPCLIP
-
180453518 BOLTBOLT
-
190453666 BRKT MOUNT, AIR BOXBRKT MOUNT, AIR BOX
-
200453660 CLIP AIRBOX, OUTLAWCLIP AIRBOX, OUTLAW
-
210453662 BOX AIR CLEANERBOX AIR CLEANER
-
220452215 BOLT HEXBOLT HEX
-
230453663 HOLDER AIR FILTERHOLDER AIR FILTER
-
240453664 FILTER AIR BOX, OUTLAWFILTER AIR BOX, OUTLAW
-
250453484 GASKET COVER, AIRBOXGASKET COVER, AIRBOX
-
260453332 DUCT OUTLET, CLUTCH COVERDUCT OUTLET, CLUTCH COVER
-
270453665 COVER AIR BOXCOVER AIR BOX
-
280453739 AIR BOX ASSYAIR BOX ASSY
