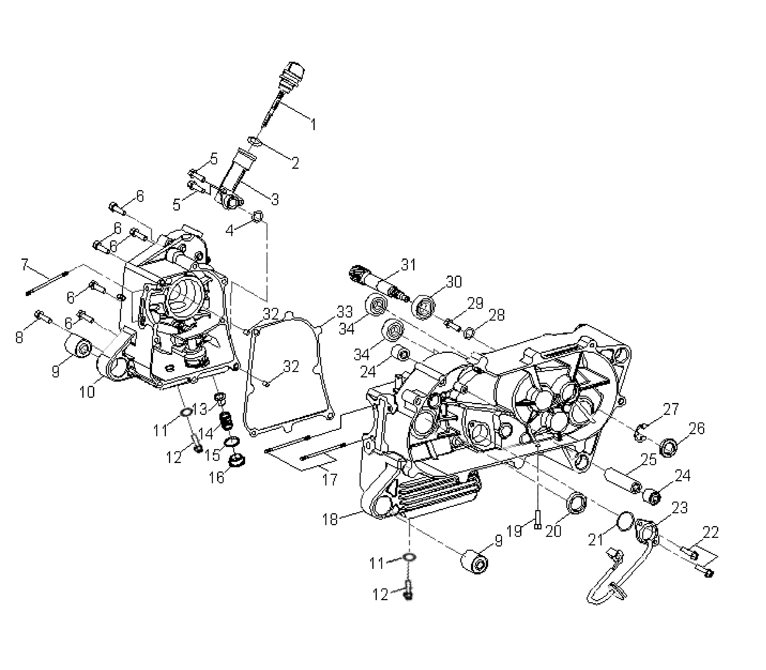

CRANKCASE для Polaris OUTLAW 90 (A07KA09AB) (BLACK METALLIC) - 2007 года выпуска
-
№АртикулНазвание
-
-0454106 ASM - ENG, 4 STRK 90, W/O CARB, 07 YOUTHASM - ENG, 4 STRK 90, W/O CARB, 07 YOUTH
-
10453542 GAUGE OILGAUGE OIL
-
20453508 O RING OIL, DIPSTICKO RING OIL, DIPSTICK
-
30453611 NECK OIL, FILLERNECK OIL, FILLER
-
40453827 O'RING ACRYLICO'RING ACRYLIC
-
50453519 BOLTBOLT
-
60453612 BOLTBOLT
-
70453613 STUD BOLT, CRANKCASESTUD BOLT, CRANKCASE
-
80453614 BOLTBOLT
-
90450587 BUSHING RUBBER 96400 102831BUSHING RUBBER 96400 102831
-
100453615 CRANKCASE RIGHT HANDCRANKCASE RIGHT HAND
-
110452133 WASHER FLATWASHER FLAT
-
120452132 BOLT HEX, WASHER FACEBOLT HEX, WASHER FACE
-
130452369 SCREEN OILSCREEN OIL
-
140452370 SPRING OIL SCREENSPRING OIL SCREEN
-
150452371 O RING, DRAIN PLUGO RING, DRAIN PLUG
-
160452368 PLUG DRAIN, OILPLUG DRAIN, OIL
-
170453616 STUD BOLT, CRANKCASESTUD BOLT, CRANKCASE
-
180453330 COVER CLUTCHCOVER CLUTCH
-
190453669 BOLT HEXBOLT HEX
-
200453522 SEAL OIL, CRANKCASESEAL OIL, CRANKCASE
-
210452129 O RING GEAR POSITION SENSORO RING GEAR POSITION SENSOR
-
220452138 BOLT HEX, FLANGEBOLT HEX, FLANGE
-
230452128 SENSOR GEAR POSITIONSENSOR GEAR POSITION
-
240451139 BUSHING RUBBERBUSHING RUBBER
-
250453617 SPACER COLLAR, CRANKCASESPACER COLLAR, CRANKCASE
-
260450200 SEAL OILSEAL OIL
-
270450198 CIRCLIP EXTERNALCIRCLIP EXTERNAL
-
280453460 WASHER PLAINWASHER PLAIN
-
290450158 BOLT SOCKET, HEXBOLT SOCKET, HEX
-
300450199 BEARINGBEARING
-
310453456 SHAFT DRIVESHAFT DRIVE
-
320452342 PIN DOWELPIN DOWEL
-
330453419 GASKET CRANKCASEGASKET CRANKCASE
-
340450254 BEARING BALLBEARING BALL
