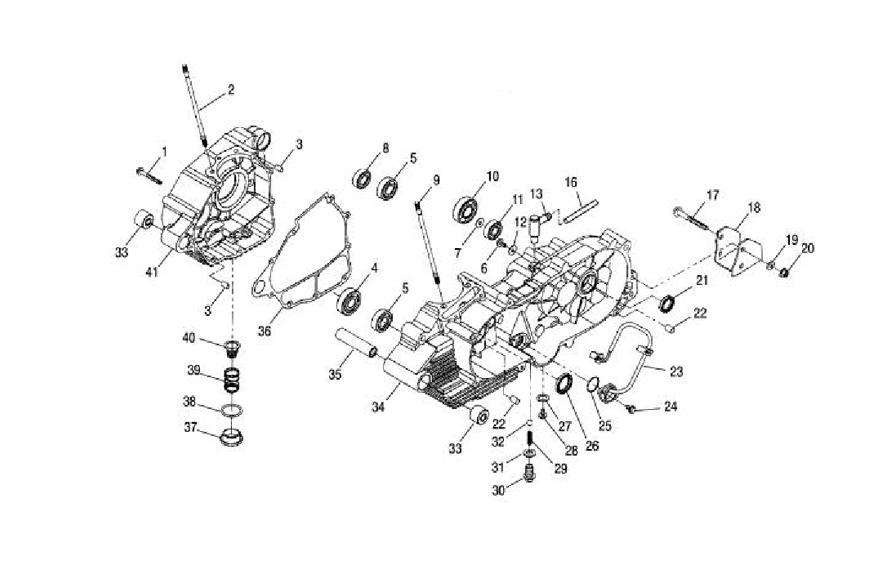

CRANKCASE для Polaris PHOENIX 200 (A07PB20AD) (WHITE) - 2007 года выпуска
-
№АртикулНазвание
-
-0454110 ASM., ENGINE W/O CARB (INCL. CARBURETOR)ASM., ENGINE W/O CARB (INCL. CARBURETOR)
-
10452344 BOLT-HEX,FLANGEBOLT-HEX,FLANGE
-
20452335 BOLT-STUDBOLT-STUD
-
30452342 PIN-DOWELPIN-DOWEL
-
40452345 BEARING-BALLBEARING-BALL
-
50452348 BEARING-BALLBEARING-BALL
-
60452330 BOLT-HEX,FLANGEBOLT-HEX,FLANGE
-
70452374 WASHER-FLATWASHER-FLAT
-
80452156 BEARING-MAIN TRNSMSN SHAFTBEARING-MAIN TRNSMSN SHAFT
-
90452336 BOLT-STUDBOLT-STUD
-
100452349 BEARING-BALLBEARING-BALL
-
110452373 BEARING-NEEDLEBEARING-NEEDLE
-
120452337 WASHER-FLATWASHER-FLAT
-
130450054 CLIPCLIP
-
160452326 HOSE-VENT,GEARCASEHOSE-VENT,GEARCASE
-
170452324 BOLT-HEX,FLANGEBOLT-HEX,FLANGE
-
180452323 BRKT-MOTOR MOUNTBRKT-MOTOR MOUNT
-
190452325 WASHER-FLATWASHER-FLAT
-
200450268 NUT-FLANGENUT-FLANGE
-
210452340 SEAL-OILSEAL-OIL
-
220450142 PIN-DOWELPIN-DOWEL
-
230452329 SWITCH-CRANK CASESWITCH-CRANK CASE
-
240452138 BOLT-HEX,FLANGEBOLT-HEX,FLANGE
-
250452129 O-RING-GEAR POSITION SENSORO-RING-GEAR POSITION SENSOR
-
260452341 SEAL-OILSEAL-OIL
-
270452133 WASHER-FLATWASHER-FLAT
-
280452132 BOLT-HEX,WASHER FACEBOLT-HEX,WASHER FACE
-
290452135 SPRING-DETENT,10KGSPRING-DETENT,10KG
-
300452137 BOLT-HEXBOLT-HEX
-
310452136 WASHER-FLATWASHER-FLAT
-
320452134 BALL-STEELBALL-STEEL
-
330452319 BUSHING-RUBBERBUSHING-RUBBER
-
340452322 CASE-CRANK, LEFT HANDCASE-CRANK, LEFT HAND
-
350452320 SPACER-COLLARSPACER-COLLAR
-
360452321 GASKET-CRANK CASEGASKET-CRANK CASE
-
370452368 PLUG-DRAIN,OILPLUG-DRAIN,OIL
-
380452371 O-RING,DRAIN PLUGO-RING,DRAIN PLUG
-
390452370 SPRING-OIL SCREENSPRING-OIL SCREEN
-
400452369 SCREEN-OILSCREEN-OIL
-
410452318 CASE-CRANK, RIGHT HANDCASE-CRANK, RIGHT HAND
