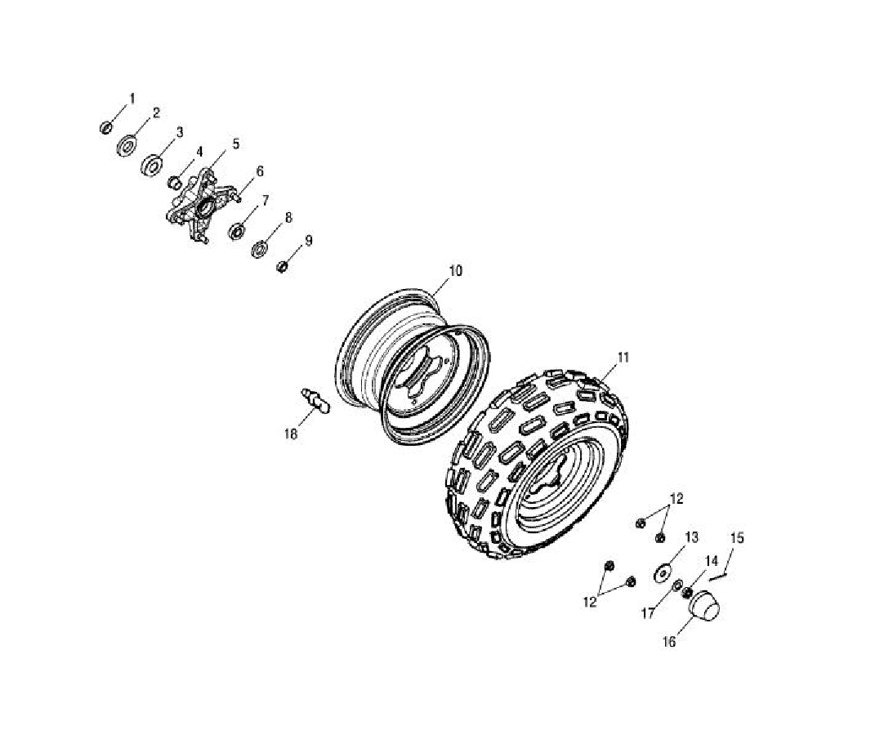

WHEEL - FRONT для Polaris PHOENIX 200 (A07PB20AD) (WHITE) - 2007 года выпуска
-
№АртикулНазвание
-
10453005 SPACER-COLLAR,INSIDESPACER-COLLAR,INSIDE
-
20453008 SEAL-OIL,OUTSIDESEAL-OIL,OUTSIDE
-
30453009 BEARING-BALL,RADIAL,OUTSIDEBEARING-BALL,RADIAL,OUTSIDE
-
40453006 SPACER-COLLAR,CENTERSPACER-COLLAR,CENTER
-
50452273-544 ASM., HUB, FRONT, LEFT HAND, PINK (INCL. 6)ASM., HUB, FRONT, LEFT HAND, PINK (INCL. 6)
-
60453054 BOLT-STUD,WHEELBOLT-STUD,WHEEL
-
70453004 BEARING-BALL,RADIALBEARING-BALL,RADIAL
-
80453003 SEAL-OILSEAL-OIL
-
90453007 SPACER-COLLAR,OUTSIDESPACER-COLLAR,OUTSIDE
-
100453000-486 RIM, WHEEL, SILVERRIM, WHEEL, SILVER
-
110452786 TIRE-DURO,21X7-10TIRE-DURO,21X7-10
-
120453213 NUT-LOCK,HEX,NYLON INSERTNUT-LOCK,HEX,NYLON INSERT
-
130453001 WASHER-FLATWASHER-FLAT
-
140453002 NUT-WHEEL,CASTLENUT-WHEEL,CASTLE
-
150450395 PIN-COTTERPIN-COTTER
-
160452661 CAP-HUBCAP-HUB
-
170452663 WASHERWASHER
-
180450401 VALVE,RIMVALVE,RIM
