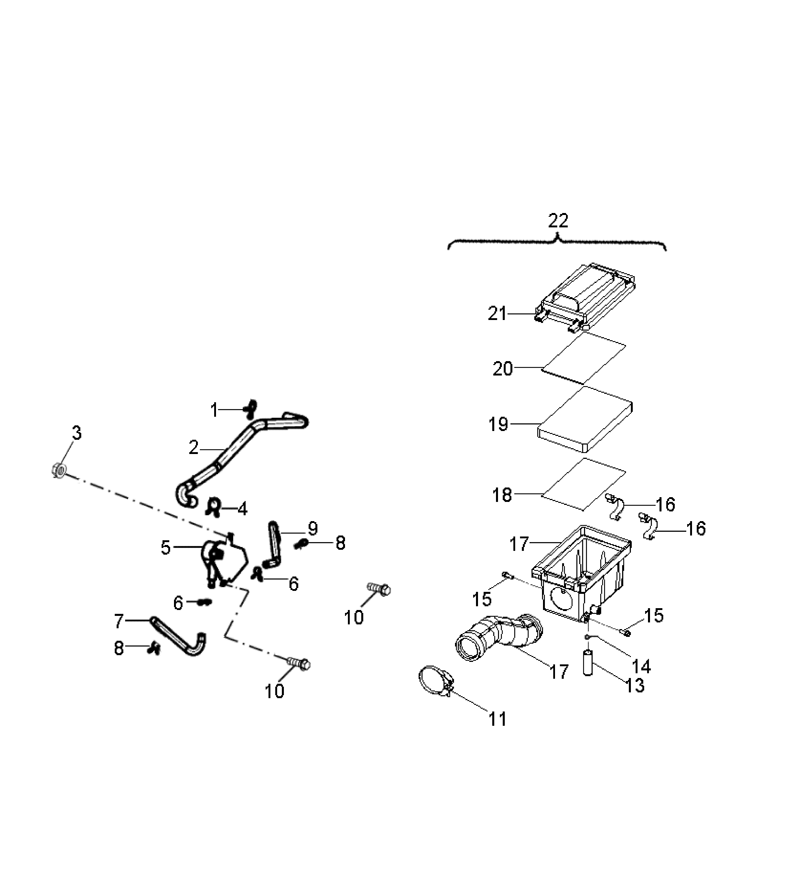

AIR BOX ASSY. для Polaris PREDATOR 50 (A07KA05CA) (SILVER) - 2007 года выпуска
-
№АртикулНазвание
-
10453932 CLIP-AIRBOXCLIP-AIRBOX
-
20453933 TUBE-BREATHER,VENTILATEDTUBE-BREATHER,VENTILATED
-
30450150 NUT-FLANGE,HEXNUT-FLANGE,HEX
-
40453187 CLIP-RETAININGCLIP-RETAINING
-
50453184 SEPARATOR-OILSEPARATOR-OIL
-
60453934 CLIP-AIRBOXCLIP-AIRBOX
-
70453935 TUBE-OIL,AIRBOXTUBE-OIL,AIRBOX
-
80453936 CLIP-AIR BOXCLIP-AIR BOX
-
90454000 TUBE-OIL,AIROBXTUBE-OIL,AIROBX
-
100450309 BOLT-HEXBOLT-HEX
-
110452562 CLAMPCLAMP
-
130453938 HOSE-DRAIN,AIRBOXHOSE-DRAIN,AIRBOX
-
140453932 CLIP-AIRBOX,PREDATOR 50CLIP-AIRBOX,PREDATOR 50
-
150453939 BOLTBOLT
-
160453940 CLIP-AIRBOXCLIP-AIRBOX
-
170453943 AIRBOX W/BOOT ASSYAIRBOX W/BOOT ASSY
-
180453905 SCREEN-AIR CLEANERSCREEN-AIR CLEANER
-
190453906 FILTER-AIR CLEANERFILTER-AIR CLEANER
-
200453907 GASKET-AIR BOXGASKET-AIR BOX
-
210453908 COVER-AIR BOXCOVER-AIR BOX
-
220453406 AIR BOX ASSY. (INCLUDES 11 TO 21)AIR BOX ASSY. (INCLUDES 11 TO 21)
