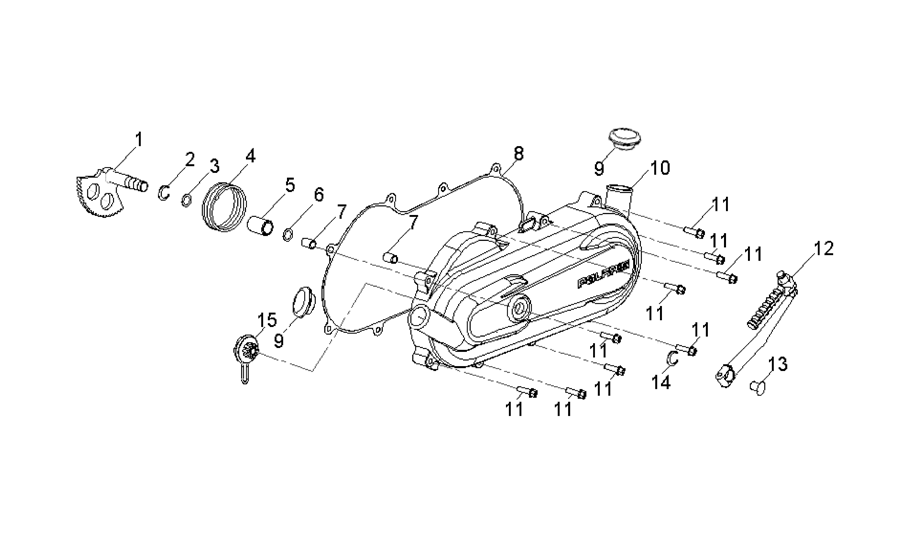

CRANKCASE COVER - LEFT - W/KICK START для Polaris PREDATOR 50 (A07KA05CA) (SILVER) - 2007 года выпуска
-
№АртикулНазвание
-
10453835 SHAFT,KICK START ASSYSHAFT,KICK START ASSY
-
20453836 CLIP-SPRINGCLIP-SPRING
-
30453837 O'RINGO'RING
-
40450184 SPRING-REST,STARTER SHAFTSPRING-REST,STARTER SHAFT
-
50453469 BUSHING-KICK STARTBUSHING-KICK START
-
60453838 WASHERWASHER
-
70452342 PIN-DOWELPIN-DOWEL
-
80453422 GASKET-CLUTCH COVERGASKET-CLUTCH COVER
-
90453413 CAP-CLUTCH COVER,DUCTCAP-CLUTCH COVER,DUCT
-
100453839 COVER-CLUTCHCOVER-CLUTCH
-
110452331 BOLT-HEX,FLANGEBOLT-HEX,FLANGE
-
120453840 KICK START ASSYKICK START ASSY
-
130453470 COVER-SPINDLE,KICK STARTCOVER-SPINDLE,KICK START
-
140452339 CLIP RETAINERCLIP RETAINER
-
150451745 KICK PINION ASSYKICK PINION ASSY
