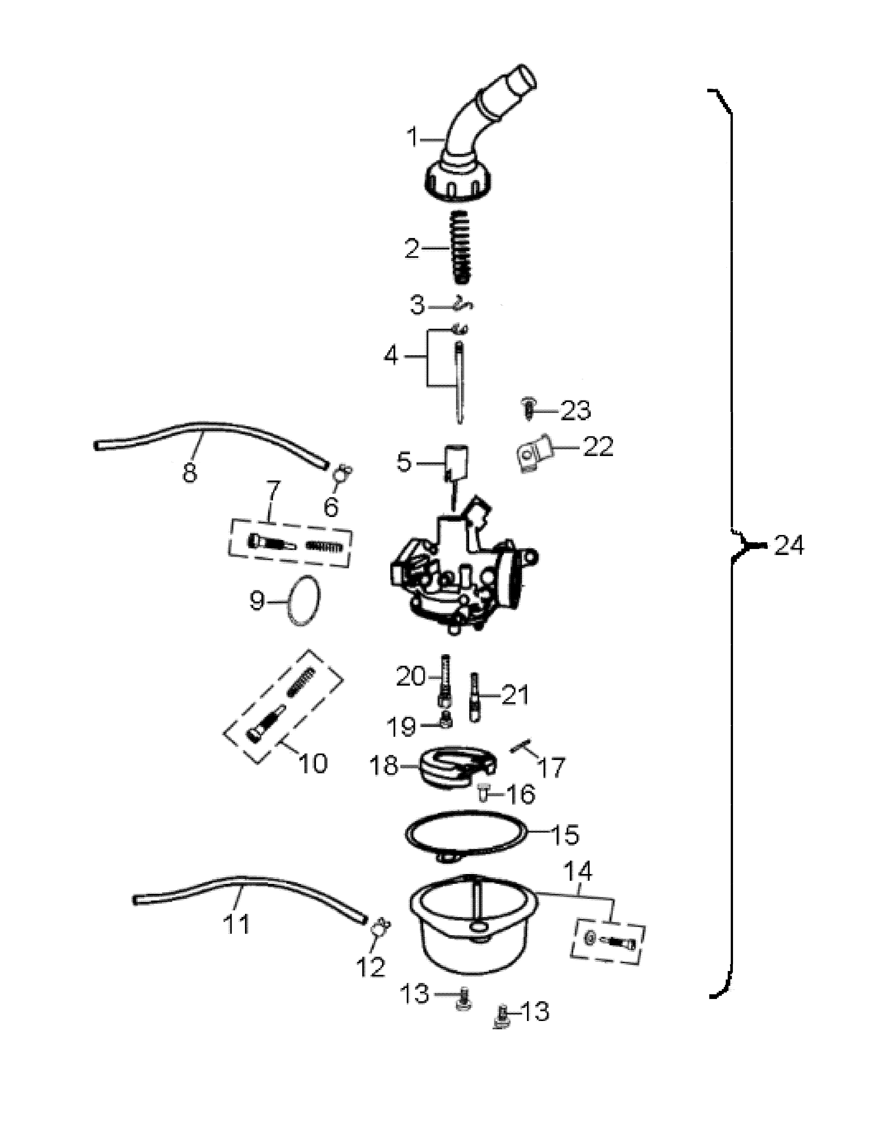

CARBURETOR для Polaris PREDATOR 50 (A07KA05CB) (BLACK METALLIC) - 2007 года выпуска
-
№АртикулНазвание
-
10453948 CAP ASSYCAP ASSY
-
20453949 SPRING-CARBSPRING-CARB
-
30453950 CLIP-NEEDLE,CARBCLIP-NEEDLE,CARB
-
40453951 JET ASSY,NEEDLE,CARBJET ASSY,NEEDLE,CARB
-
50453952 VALVE-THROTTLEVALVE-THROTTLE
-
60453953 CLIP-FUEL LINECLIP-FUEL LINE
-
70453954 SCREW-CARBSCREW-CARB
-
80453955 HOSE-FUELHOSE-FUEL
-
90453626 O'RING-CARBO'RING-CARB
-
100453956 SCREW,CARB ASSYSCREW,CARB ASSY
-
110453957 TUBE-DRAIN,CARBTUBE-DRAIN,CARB
-
120452814 CLIP-HOSE,VACUUMCLIP-HOSE,VACUUM
-
130453629 SCREW,CARB ASSYSCREW,CARB ASSY
-
140453958 BOWL-FLOAT,CARBBOWL-FLOAT,CARB
-
150453959 GASKET-FLOAT,CARBGASKET-FLOAT,CARB
-
160453960 VALVE-FLOAT,CARBVALVE-FLOAT,CARB
-
170453961 PIN-FLOAT,CARBPIN-FLOAT,CARB
-
180453962 FLOAT-CARBFLOAT-CARB
-
190453963 JET-MAIN,CARBJET-MAIN,CARB
-
200453964 VALVE-NEEDLE,CARBVALVE-NEEDLE,CARB
-
210453965 JET-PILOT,CARBJET-PILOT,CARB
-
220453967 BRKT-CLIP,CARBBRKT-CLIP,CARB
-
230453968 SCREW-CARBSCREW-CARB
-
240453966 CARB ASSY (INC ALL)CARB ASSY (INC ALL)
