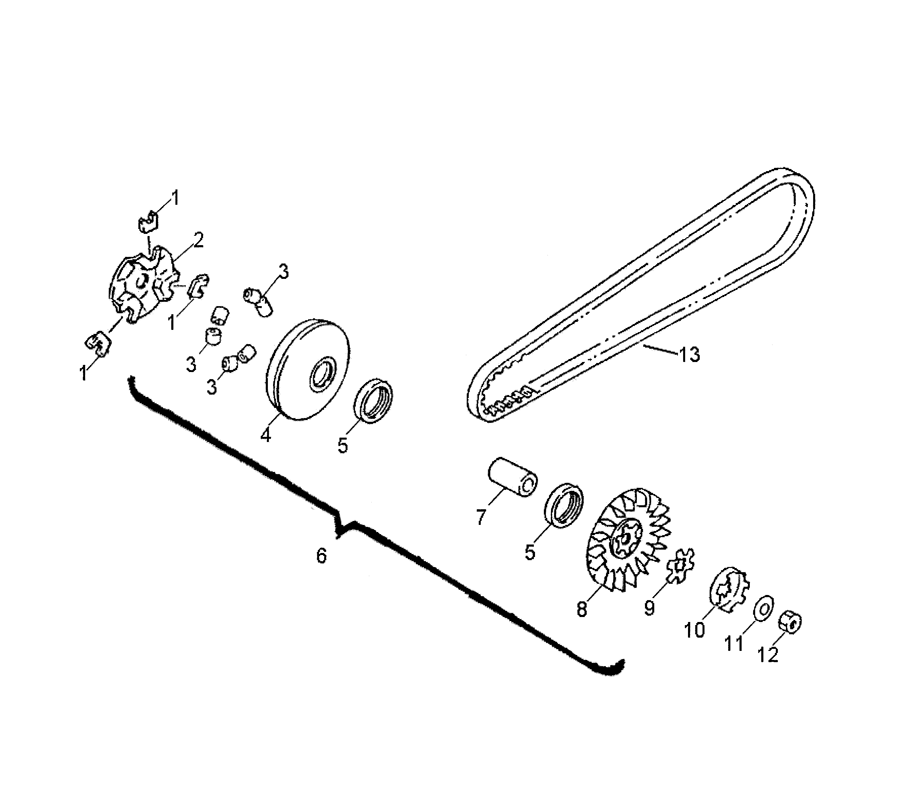

CLUTCH - DRIVE для Polaris PREDATOR 50 (A07KA05CB) (BLACK METALLIC) - 2007 года выпуска
-
№АртикулНазвание
-
10453602 BUSHING-SLIDERBUSHING-SLIDER
-
20453603 PLATE-CAMPLATE-CAM
-
30453901 ROLLER-CLUTCHROLLER-CLUTCH
-
40453605 WHEEL-SLOT,DRIVE CLUTCHWHEEL-SLOT,DRIVE CLUTCH
-
50453606 SEAL-OILSEAL-OIL
-
60453902 DRIVE CLUTCH ASSY (INCLUDES 1 TO 9)DRIVE CLUTCH ASSY (INCLUDES 1 TO 9)
-
70453607 BUSHING-DRIVE CLUTCHBUSHING-DRIVE CLUTCH
-
80453608 SHEAVE-MOVEABLESHEAVE-MOVEABLE
-
90453609 WASHER-CLAWWASHER-CLAW
-
100450245 CLUTCH-ONE WAYCLUTCH-ONE WAY
-
110453809 WASHER-SPRINGWASHER-SPRING
-
120450249 NUT-FLANGENUT-FLANGE
-
130453455 BELT-DRIVENBELT-DRIVEN
