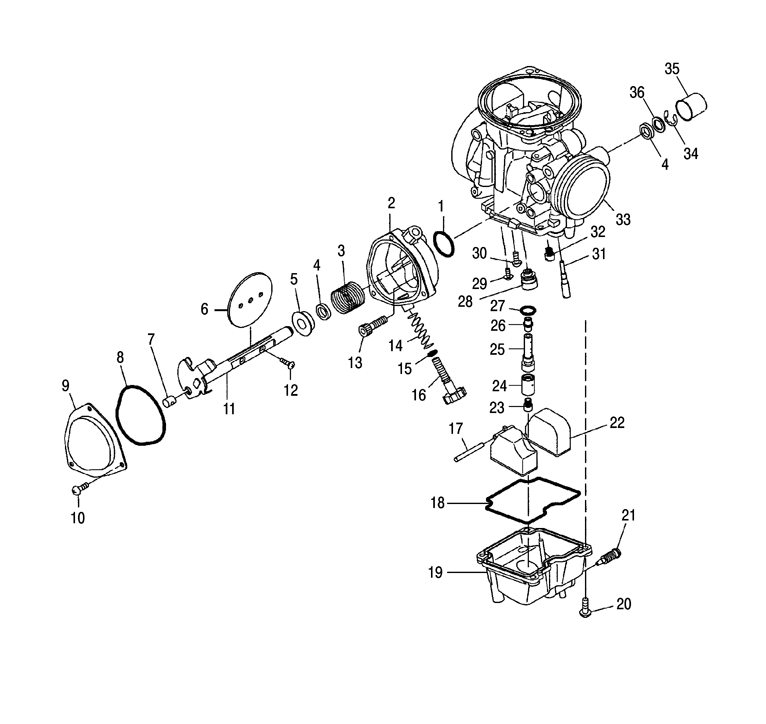

CARBURETOR - LOWER для Polaris PREDATOR 500 LE (A07GJ50AA) (BLACK) - 2007 года выпуска
-
№АртикулНазвание
-
13130928 O RINGO RING
-
23131502 CASECASE
-
33130927 SPRINGSPRING
-
43130515 SEALSEAL
-
53130932 RINGRING
-
63131476 THROTTLE VALVE (#105)THROTTLE VALVE (#105)
-
73130543 GUIDE, CABLEGUIDE, CABLE
-
83130929 O RINGO RING
-
93130930 COVERCOVER
-
103131512 SCREWSCREW
-
113131500 THROTTLE SHAFT ATHROTTLE SHAFT A
-
123131475 SCREWSCREW
-
133131503 BOLTBOLT
-
143130010 SPRINGSPRING
-
153131501 O RINGO RING
-
163131511 SCREW, ADJUSTSCREW, ADJUST
-
173130043 PIN, FLOATPIN, FLOAT
-
183131494 O RINGO RING
-
193131493 BODY, FLOATBODY, FLOAT
-
203131509 SCREWSCREW
-
213130521 SCREWSCREW
-
223131492 FLOAT AFLOAT A
-
233140172 MAIN JET #150MAIN JET #150
-
243131490 RINGRING
-
253131491 HOLDER, JETHOLDER, JET
-
263131496 JET, NEEDLEJET, NEEDLE
-
273140053 O RINGO RING
-
283131575 VALVE, NEEDLEVALVE, NEEDLE
-
293131057 SCREWSCREW
-
303130924 SCREWSCREW
-
313131023 JET PILOT, 45JET PILOT, 45
-
323131488 JET (#42.5)JET (#42.5)
-
333131678 CARBURETOR (INC ALL)CARBURETOR (INC ALL)
-
343130518 E RINGE RING
-
353130519 CAPCAP
