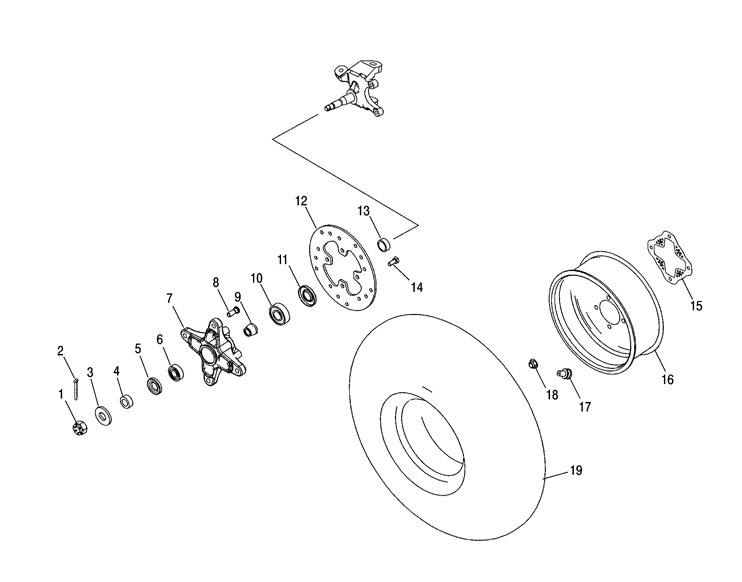

WHEEL - FRONT W/ HUB для Polaris PREDATOR 500 LE (A07GJ50AA) (BLACK) - 2007 года выпуска
-
№АртикулНазвание
-
17547336 NUT M12X1.5, CASTLE OLIVE DNUT M12X1.5, CASTLE OLIVE D
-
27661401 PIN, COTTERPIN, COTTER
-
37556333 WASHER FLAT, .531X1.063X.094 YWASHER FLAT, .531X1.063X.094 Y
-
45133342 SPACER SPINDLE, OUTERSPACER SPINDLE, OUTER
-
53610090 SEAL LIP, .875X1.503X.25SEAL LIP, .875X1.503X.25
-
63514528 BEARING BALL, SEALED, 6202, 15X35BEARING BALL, SEALED, 6202, 15X35
-
75135268 HUB WHEEL, FRONT(MACH)HUB WHEEL, FRONT(MACH)
-
87515513 STUD *STUD *
-
95335231 SPACE-TAPERED 1.100 ODSPACE-TAPERED 1.100 OD
-
103514527 BEARING BALL, SEALED, 6204, 20X47BEARING BALL, SEALED, 6204, 20X47
-
113610093 SEAL LIP, 1.00X1.88X.25SEAL LIP, 1.00X1.88X.25
-
125247752 BRAKE DISC, 7.0 ODBRAKE DISC, 7.0 OD
-
135133341 SPACER SPINDLE, INNERSPACER SPINDLE, INNER
-
147518643 BOLT M8X1.25X18, HXHD OLIVE DBOLT M8X1.25X18, HXHD OLIVE D
-
155248379 GUARD DISC, OUTERGUARD DISC, OUTER
-
161521020 WELD-RIM,10X5,FRONT,AL,VISIONWELD-RIM,10X5,FRONT,AL,VISION
-
171525017 VALVE, RIMVALVE, RIM
-
187542459 NUT, FLANGEDNUT, FLANGED
-
195412158 TIRE FRONT, 21X7 10, MAXXISTIRE FRONT, 21X7 10, MAXXIS
