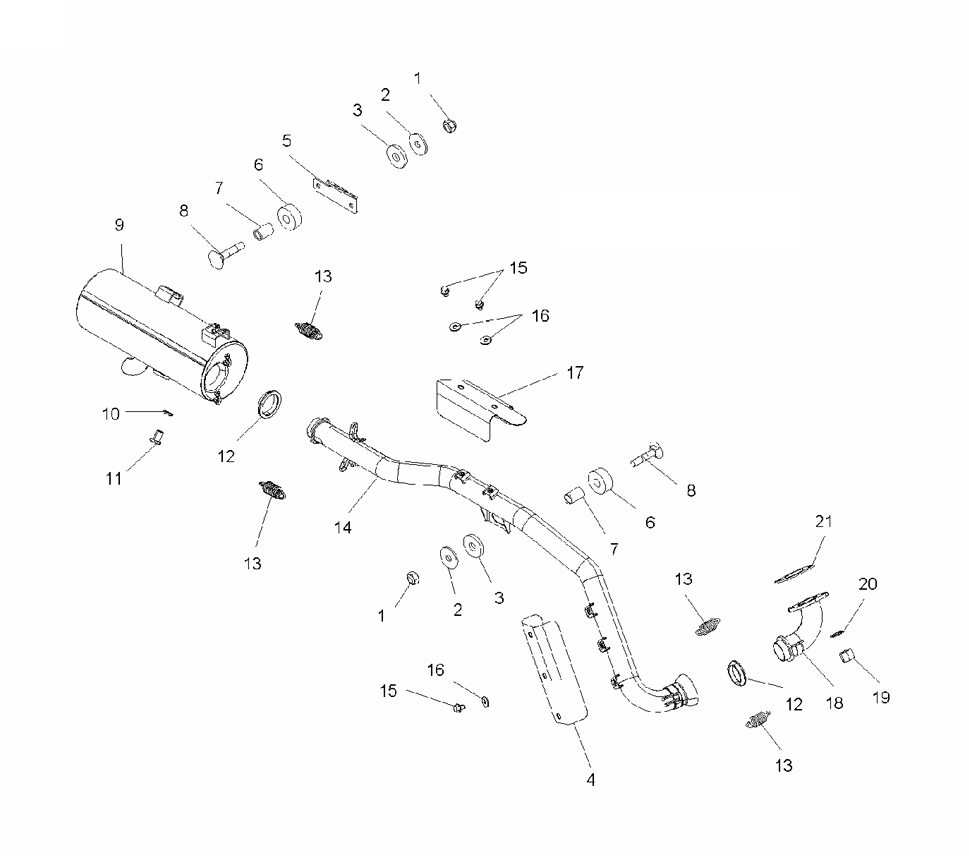

EXHAUST SYSTEM для Polaris SPORTSMAN 500 EFI INT (A07MH50FC) - 2007 года выпуска
-
№АртикулНазвание
-
17542324 NUT, NYLOKNUT, NYLOK
-
27555716 WASHERWASHER
-
35410436 WASHER, RUBBERWASHER, RUBBER
-
45250184 SHIELD-HEAT, EXHAUST,X2SHIELD-HEAT, EXHAUST,X2
-
55241663 BRKT-SILENCER, FRAME PLTDBRKT-SILENCER, FRAME PLTD
-
65412659 DAMPENER-VIBRATIONDAMPENER-VIBRATION
-
75010192 BUSHINGBUSHING
-
87515316 BOLTBOLT
-
91261042-029 EXHAUST, SILENCER, BLACKEXHAUST, SILENCER, BLACK
-
107556230 WASHER-CLEAN OUT .51X.75X.09WASHER-CLEAN OUT .51X.75X.09
-
117512666 BOLTBOLT
-
125243518 SEAL, EXHAUSTSEAL, EXHAUST
-
137041804 SPRINGSPRING
-
141261246-029 EXHAUST PIPE,1.62 OD, BLACKEXHAUST PIPE,1.62 OD, BLACK
-
157515197 SCREWSCREW
-
167555935 WASHERWASHER
-
175248727 SHIELD-HEAT, EXHAUSTSHIELD-HEAT, EXHAUST
-
181261688-029 WELD-MANIFOLD 1.625, BLACKWELD-MANIFOLD 1.625, BLACK
-
193087199 NUTNUT
-
203080530 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
213085075 ASM., GASKET (EXHAUST)ASM., GASKET (EXHAUST)
