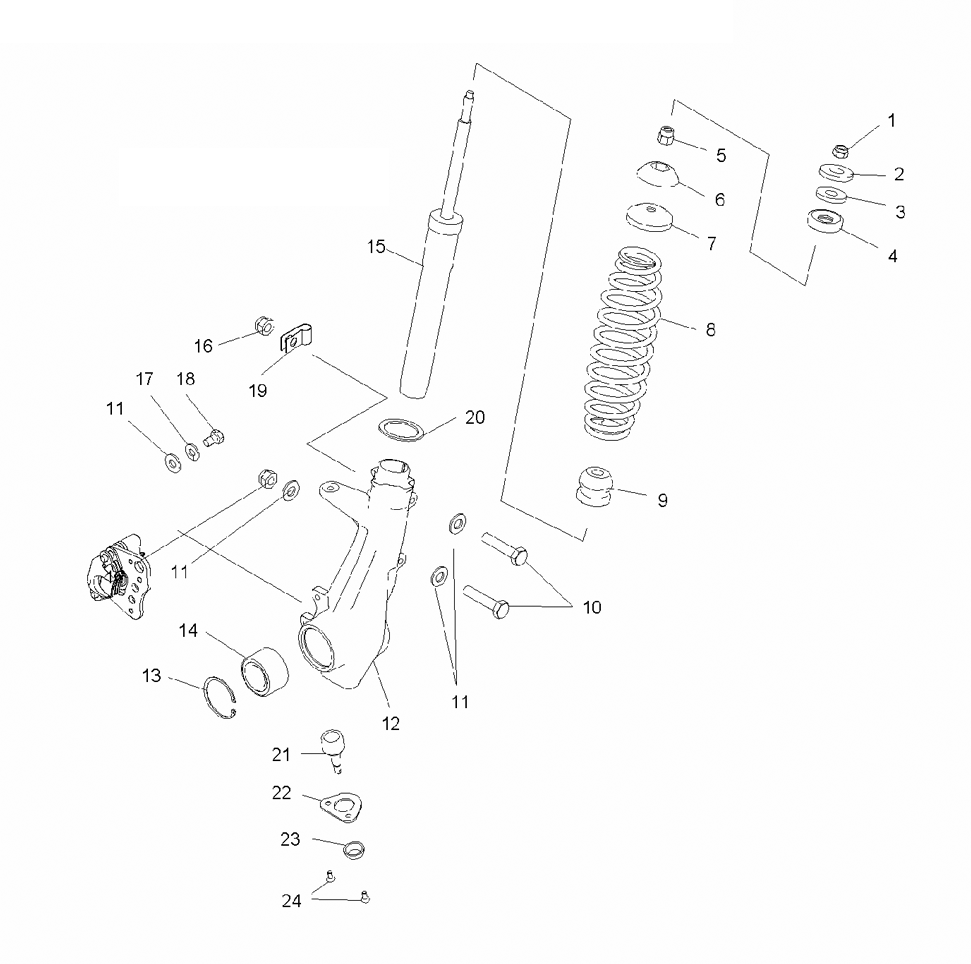

SUSPENSION - FRONT STRUT для Polaris SPORTSMAN 500 EFI INT (A07MH50FC) - 2007 года выпуска
-
№АртикулНазвание
-
17547104 NUTNUT
-
27555749 WASHERWASHER
-
35810291 SPACER, RUBBERSPACER, RUBBER
-
45432872 PIVOT, BALL,TOPPIVOT, BALL,TOP
-
55132062 SPACER-1/2-20SPACER-1/2-20
-
65432871 PIVOT, BALL, BOTTOMPIVOT, BALL, BOTTOM
-
75243364 RETAINER-SPRINGRETAINER-SPRING
-
87043247-067 SPRING-COMP, 55-90 #/IN,HT, BLACKSPRING-COMP, 55-90 #/IN,HT, BLACK
-
95412665 BUMPER-MCU, 17.8MM IDBUMPER-MCU, 17.8MM ID
-
107515339 BOLTBOLT
-
117558402 WASHER, FLATWASHER, FLAT
-
121822825 ASM-HUBSTRUT, LEFT HAND, 4X4ASM-HUBSTRUT, LEFT HAND, 4X4
-
121822826 ASM-HUBSTRUT, RIGHT HAND, 4X4ASM-HUBSTRUT, RIGHT HAND, 4X4
-
137710507 RING, RET.,2.500 INTERNALRING, RET.,2.500 INTERNAL
-
143514342 BEARING-AXLE TUBE/HUBSTRUTBEARING-AXLE TUBE/HUBSTRUT
-
157041762 STRUT-FRONT, 18X30MM,184.7MM LTSTRUT-FRONT, 18X30MM,184.7MM LT
-
167542324 NUT, NYLOKNUT, NYLOK
-
177552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
187512365 SCREW, CAPSCREW, CAP
-
197080367 CLAMP, CABLECLAMP, CABLE
-
205211115 WASHERWASHER
-
217061153 BALLJOINT-GREASELESS, STRUTBALLJOINT-GREASELESS, STRUT
-
225211121 BRKT, BALL JOINTBRKT, BALL JOINT
-
235412658 BOOT-BALLJOINT, GREASELESS, STRTBOOT-BALLJOINT, GREASELESS, STRT
-
247512284 BOLT, SOCKETBOLT, SOCKET
