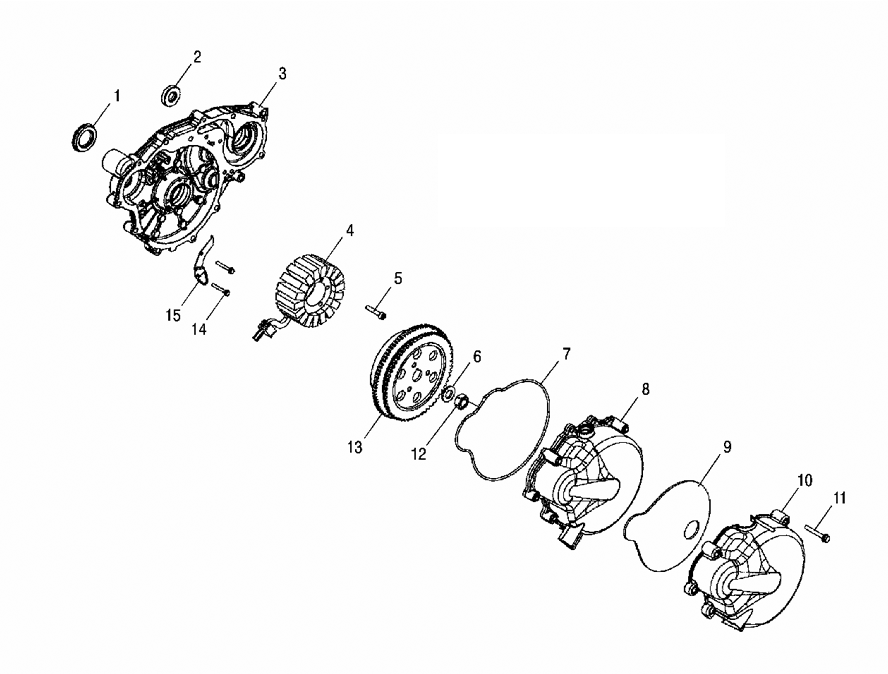

MAGNETO для Polaris SPORTSMAN 800 X2 EFI INT (A07TH76AU) (BLACK METALLIC) - 2007 года выпуска
-
№АртикулНазвание
-
15412881 SEAL-FLANGED, 29X44X10 W/HELIXSEAL-FLANGED, 29X44X10 W/HELIX
-
25412455 SEAL-OIL, 15X35X8SEAL-OIL, 15X35X8
-
31203096 ASM-COVER, ENGINE MAGASM-COVER, ENGINE MAG
-
37663002 PIN, DOWELPIN, DOWEL
-
33514378 BUSHING-12.08X17X10BUSHING-12.08X17X10
-
44011609 STATOR-ATV, EFI, KOKUSANSTATOR-ATV, EFI, KOKUSAN
-
57517848 SCR-M6X1.0X35 SOC/CP-Y/DSCR-M6X1.0X35 SOC/CP-Y/D
-
67555907 WASHERWASHER
-
75412458 O-RINGO-RING
-
81203334 ASM-COVER STATOR, EFIASM-COVER STATOR, EFI
-
83514553 BUSHING-12.08X17X10BUSHING-12.08X17X10
-
95813050 COVER-SOUND DAMPENINGCOVER-SOUND DAMPENING
-
105436652 COVER-STATOR, OUTER, PLASTICCOVER-STATOR, OUTER, PLASTIC
-
117517950 SCR-M6X1.0X45 HX-FL-Y/DSCR-M6X1.0X45 HX-FL-Y/D
-
127547213 NUT-M14X1.50, HEX-YNUT-M14X1.50, HEX-Y
-
134010912 FLYWHEEL-W/160MM ENCODER KOKFLYWHEEL-W/160MM ENCODER KOK
-
147517950 SCR-M6X1.0X45 HX-FL-Y/DSCR-M6X1.0X45 HX-FL-Y/D
-
155245364 STATOR-BRACKET, WIRE-HOLD-DOWNSTATOR-BRACKET, WIRE-HOLD-DOWN
