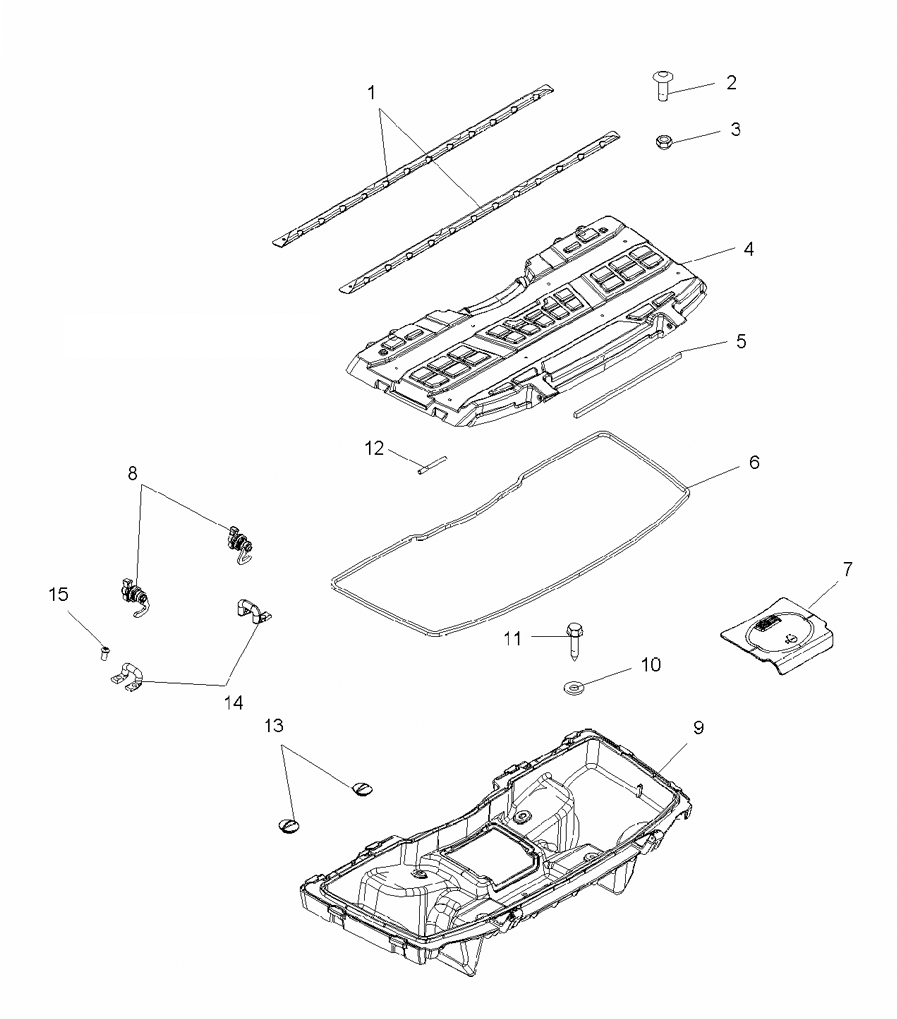

STORAGE BOX - FRONT для Polaris SPORTSMAN 800 X2 EFI INT (A07TH76AU) (BLACK METALLIC) - 2007 года выпуска
-
№АртикулНазвание
-
15247653-418 CHANNEL-LID, FRONT, FLTBLACKWRKLCHANNEL-LID, FRONT, FLTBLACKWRKL
-
27518427 SCR-1/4-20X1.25 TR/TX-M-GR.5SCR-1/4-20X1.25 TR/TX-M-GR.5
-
37542122 NUT-NYLOKNUT-NYLOK
-
42633355-070 ASM-COVER, FRONT, X2, BLACK [INCL. 5 AND WARNING DECAL]ASM-COVER, FRONT, X2, BLACK [INCL. 5 AND WARNING DECAL]
-
55521706 SEAL-LID/BUMPERSEAL-LID/BUMPER
-
65521693 SEALSEAL
-
75413189 COVER-RADIATOR, FRONTCOVER-RADIATOR, FRONT
-
87081241 LATCH-1/4 TURN, DETENT, LEFT HAND [IF BUILT BEFORE 1/25/07]LATCH-1/4 TURN, DETENT, LEFT HAND [IF BUILT BEFORE 1/25/07]
-
87081421 LATCH-1/4 TURN, DETENT, LEFT HAND [IF BUILT AFTER 1/25/07]LATCH-1/4 TURN, DETENT, LEFT HAND [IF BUILT AFTER 1/25/07]
-
87081242 LATCH-1/4 TURN, DETENT, RIGHT HAND [IF BUILT BEFORE 1/25/07]LATCH-1/4 TURN, DETENT, RIGHT HAND [IF BUILT BEFORE 1/25/07]
-
87081422 LATCH-1/4 TURN, DETENT, RIGHT HAND [IF BUILT AFTER 1/25/07]LATCH-1/4 TURN, DETENT, RIGHT HAND [IF BUILT AFTER 1/25/07]
-
92203484 KIT-ASM-LOWER BOX,FRONT [INCL. 6,7,13,14]KIT-ASM-LOWER BOX,FRONT [INCL. 6,7,13,14]
-
107556175 WASHER-.325X1.20X.090, FL-YWASHER-.325X1.20X.090, FL-Y
-
117517208 SCREWSCREW
-
125134576 PIN-HINGE, FRONTPIN-HINGE, FRONT
-
135412981 PLUG-COMPARTMENTPLUG-COMPARTMENT
-
145334257 LATCH-WIRELATCH-WIRE
-
157512076 SCREWSCREW
