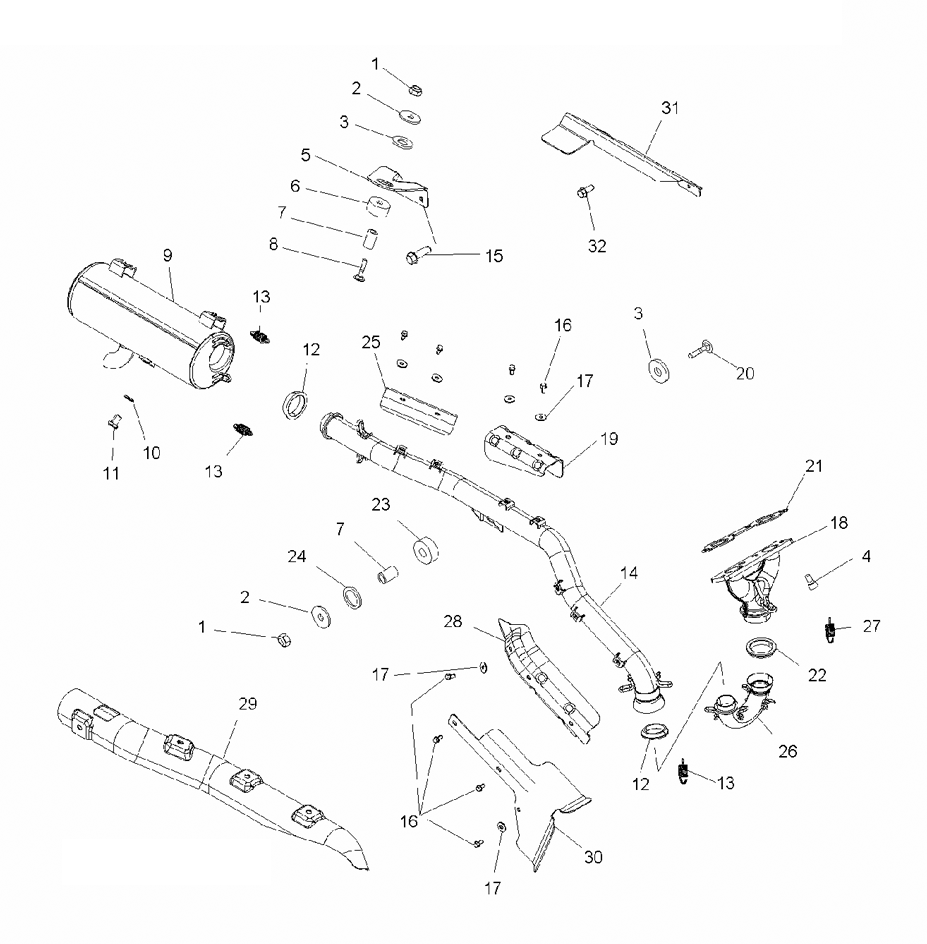

EXHAUST SYSTEM для Polaris SPORTSMAN 800 X2 EFI INT (A07TN76AF) (SONIC BLUE) - 2007 года выпуска
-
№АртикулНазвание
-
17542324 NUT, NYLOKNUT, NYLOK
-
27555716 WASHERWASHER
-
35410436 WASHER, RUBBERWASHER, RUBBER
-
47518234 SCR-M8X1.25X25 HX/SOC SEMSSCR-M8X1.25X25 HX/SOC SEMS
-
55249688 BRKT-EXHAUST MNT, PLATED, TREKBRKT-EXHAUST MNT, PLATED, TREK
-
65412659 DAMPENER-VIBRATIONDAMPENER-VIBRATION
-
75010192 BUSHINGBUSHING
-
87515316 BOLTBOLT
-
91261700-029 WELD-EXHAUST, SILENCER, 800, BLACKWELD-EXHAUST, SILENCER, 800, BLACK
-
107556230 WASHER-CLEAN OUT .51X.75X.09WASHER-CLEAN OUT .51X.75X.09
-
117512666 BOLTBOLT
-
123610047 SEAL, EXH.SOCKETSEAL, EXH.SOCKET
-
137041804 SPRINGSPRING
-
141261701-029 COULD NOT FIND [IF BUILT BEFORE 10/01/06]COULD NOT FIND [IF BUILT BEFORE 10/01/06]
-
141261772-029 WELD-EXHAUST PIPE, 1.75 OD, BLACK [IF BUILT AFTER 10/01/06]WELD-EXHAUST PIPE, 1.75 OD, BLACK [IF BUILT AFTER 10/01/06]
-
157512232 BOLTBOLT
-
167518490 SCR-1/4-20X1/2, TFM HW-MSCR-1/4-20X1/2, TFM HW-M
-
177555935 WASHERWASHER
-
181261703-029 WELD-MANIFOLD, 20 DEG, TWIN, BLACKWELD-MANIFOLD, 20 DEG, TWIN, BLACK
-
195250574 COULD NOT FIND [IF BUILT BEFORE 10/01/06]COULD NOT FIND [IF BUILT BEFORE 10/01/06]
-
207518660 BOLT-CARR 5/16-18X2 1/4''GR5-YBOLT-CARR 5/16-18X2 1/4''GR5-Y
-
215811511 GASKET, 26MM IDGASKET, 26MM ID
-
223610119 SEAL-EXHAUST, 1.78 IDSEAL-EXHAUST, 1.78 ID
-
235412659 DAMPENER-VIBRATIONDAMPENER-VIBRATION
-
247556401 BUSHINGBUSHING
-
255244014 SHIELD-HEAT, EXHAUST [IF BUILT BEFORE 10/01/06]SHIELD-HEAT, EXHAUST [IF BUILT BEFORE 10/01/06]
-
261261750-029 WELD-MANIFOLD, JOINT, BLACKWELD-MANIFOLD, JOINT, BLACK
-
277041789 SPRINGSPRING
-
285250575 COULD NOT FINDCOULD NOT FIND
-
295250980-029 SHIELD-EXHAUST, HI-TEMP BLACK [IF BUILT AFTER 10/01/06]SHIELD-EXHAUST, HI-TEMP BLACK [IF BUILT AFTER 10/01/06]
-
305251018 COULD NOT FINDCOULD NOT FIND
-
315251564 SHIELD-HEAT,EXHAUSTSHIELD-HEAT,EXHAUST
-
327512232 BOLTBOLT
