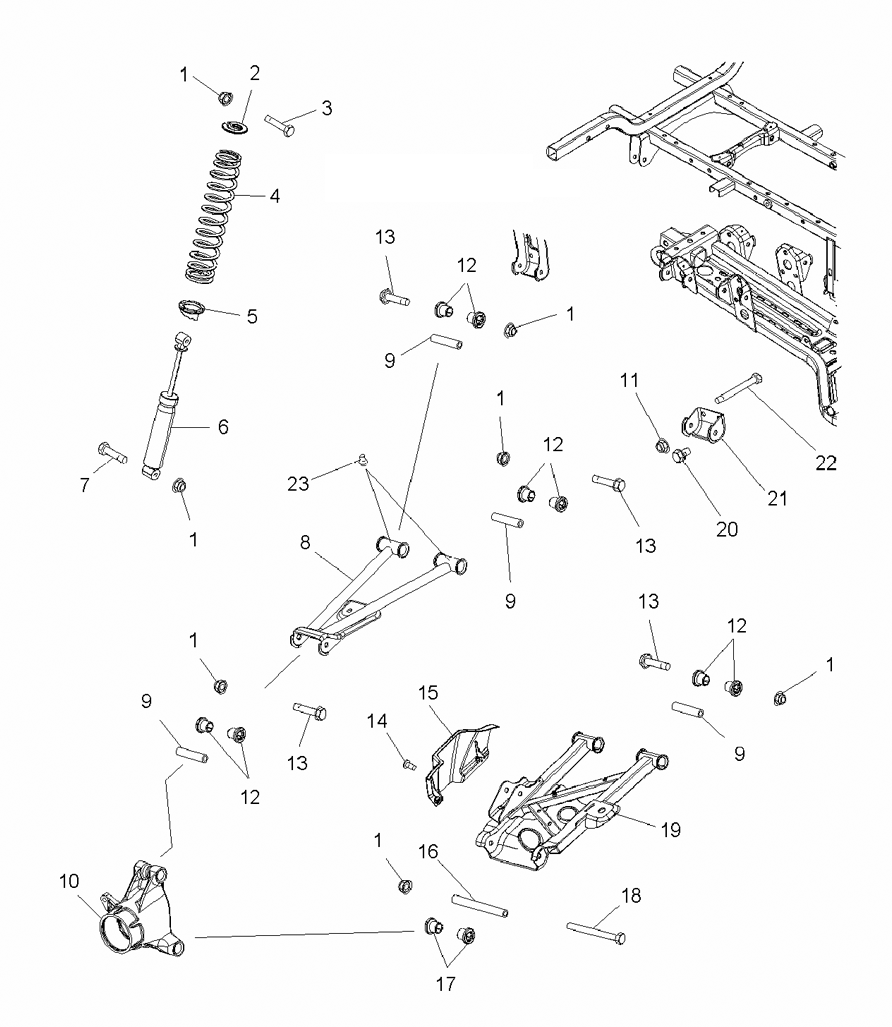

SUSPENSION - REAR для Polaris SPORTSMAN 800 X2 EFI INT (A07TN76AF) (SONIC BLUE) - 2007 года выпуска
-
№АртикулНазвание
-
17547263 NUT-3/8-24 NYLOKNUT-3/8-24 NYLOK
-
25241147 RETAINER, SHOCKRETAINER, SHOCK
-
37515433 SCREWSCREW
-
47043242-067 SPRING-COMP, RR, 130/150#/IN, BLACKSPRING-COMP, RR, 130/150#/IN, BLACK
-
55630551 CAM, ADJUST, SPRINGCAM, ADJUST, SPRING
-
67043140 SHOCK-RR, IRSSHOCK-RR, IRS
-
77515415 SCREWSCREW
-
81015848-067 WELD-UPPER CONTROL ARM, LEFT HAND, BLACKWELD-UPPER CONTROL ARM, LEFT HAND, BLACK
-
81015849-067 WELD-UPPER CONTROL ARM, RIGHT HAND, BLACKWELD-UPPER CONTROL ARM, RIGHT HAND, BLACK
-
95134882 SHAFT-A-ARM, SHORTSHAFT-A-ARM, SHORT
-
105134984 CARRIER-BEARING, WHEEL (MACH) LEFT HANDCARRIER-BEARING, WHEEL (MACH) LEFT HAND
-
105134985 CARRIER-BEARING, WHEEL (MACH) RIGHT HANDCARRIER-BEARING, WHEEL (MACH) RIGHT HAND
-
117547180 NUT-FLANGED, 3/8-16 NYLON-ZNUT-FLANGED, 3/8-16 NYLON-Z
-
125436832 BUSHING-CONTROL ARM, 1.285BUSHING-CONTROL ARM, 1.285
-
137518523 SCR-3/8-24X3 3/4 HXFLG GR5-YSCR-3/8-24X3 3/4 HXFLG GR5-Y
-
147518196 SCR-10-24X3/4 PH/TX/TRI-SEMS YSCR-10-24X3/4 PH/TX/TRI-SEMS Y
-
155437233-070 SHIELD-CV,REAR,LH,BLK [IF BUILT BEFORE 1/23/07]SHIELD-CV,REAR,LH,BLK [IF BUILT BEFORE 1/23/07]
-
155437233-070 SHIELD-CV, REAR, LEFT HAND, BLACK [IF BUILT AFTER 1/23/07]SHIELD-CV, REAR, LEFT HAND, BLACK [IF BUILT AFTER 1/23/07]
-
155437234-070 SHIELD-CV, REAR, RIGHT HAND, BLACK [IF BUILT BEFORE 1/23/07]SHIELD-CV, REAR, RIGHT HAND, BLACK [IF BUILT BEFORE 1/23/07]
-
155437234-070 SHIELD-CV, REAR, RIGHT HAND, BLACK [IF BUILT AFTER 1/23/07]SHIELD-CV, REAR, RIGHT HAND, BLACK [IF BUILT AFTER 1/23/07]
-
165135053 SHAFT-A-ARM, 5.485''SHAFT-A-ARM, 5.485''
-
175436833 BUSHING-CONTROL ARM, 2.7BUSHING-CONTROL ARM, 2.7
-
187518522 SCR-3/8-24X6-1/2 HXFLG, GR5-YSCR-3/8-24X6-1/2 HXFLG, GR5-Y
-
191015383-067 WELD-CONTROL, LOWER, LEFT HAND, BLACKWELD-CONTROL, LOWER, LEFT HAND, BLACK
-
191015384-067 WELD-CONTROL, LOWER, RIGHT HAND, BLACKWELD-CONTROL, LOWER, RIGHT HAND, BLACK
-
207517632 SCREWSCREW
-
215249289 BRKT-CONTROL-ARM, PIVOTBRKT-CONTROL-ARM, PIVOT
-
227518365 BOLT-3/8-16X7 HEX FLANGE GR5BOLT-3/8-16X7 HEX FLANGE GR5
-
237080433 FITTING, LUBRICATION, THREADEDFITTING, LUBRICATION, THREADED
