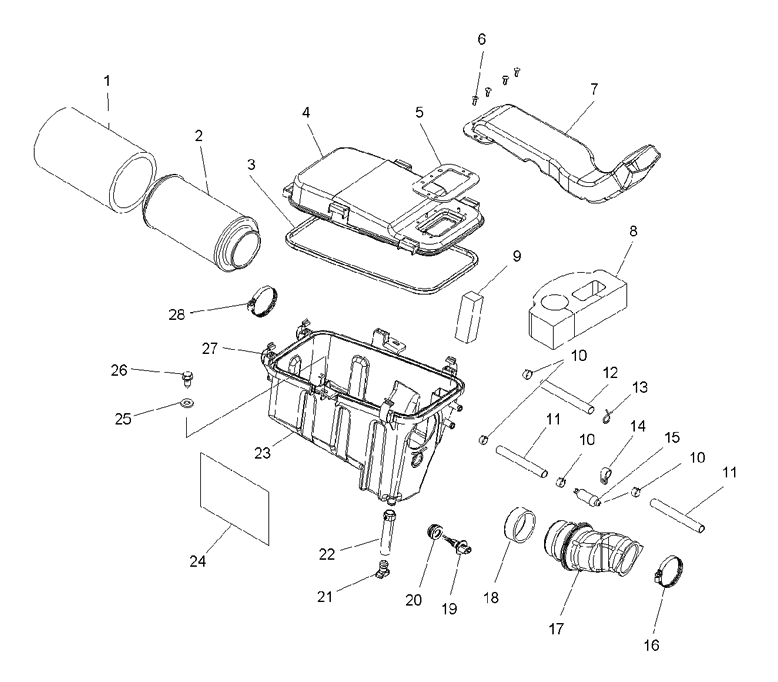

AIR BOX ASSY. для Polaris SPORTSMAN X2 500 EFI (TN50AU) (BLACK METALLIC) - 2007 года выпуска
-
№АртикулНазвание
-
15811633 FILTER,PRECLEAN,SLEEVEFILTER,PRECLEAN,SLEEVE
-
27080595 FILTER,AIRFILTER,AIR
-
35812829 SEAL-AIRBOX COVERSEAL-AIRBOX COVER
-
45436278 COVER-AIR BOXCOVER-AIR BOX
-
55412748 GASKET-INTAKEGASKET-INTAKE
-
67517317 SCREWSCREW
-
75436957 DUCT-AIR INTAKEDUCT-AIR INTAKE
-
85812773 SEAL-FOAM,LARGE INTAKESEAL-FOAM,LARGE INTAKE
-
95812910 FILTER-CRANKCASEFILTER-CRANKCASE
-
107080699 CLAMP,HOSECLAMP,HOSE
-
118450073-600 LINE,BREATHER,3/8 ID.LINE,BREATHER,3/8 ID.
-
125413104 HOSE-BREATHER,FORMED,500 CCHOSE-BREATHER,FORMED,500 CC
-
137080694 CLAMP,HOSE,SPRINGCLAMP,HOSE,SPRING
-
147080913 CLAMP-P,STL,1'' BDL DIA-BCLAMP-P,STL,1'' BDL DIA-B
-
152530029 FILTER,BREATHER,IN LINEFILTER,BREATHER,IN LINE
-
167080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
175412847 BOOT-CARB,500EFIBOOT-CARB,500EFI
-
185433847 SLEEVE-CARB,INNERSLEEVE-CARB,INNER
-
192410687 SENSOR-AIR TEMPSENSOR-AIR TEMP
-
205436346 GROMMET-AIR TEMP SENSORGROMMET-AIR TEMP SENSOR
-
215435299 PLUG-TRAPPLUG-TRAP
-
228450059-150 FUEL LINEFUEL LINE
-
235436151 BOX-AIR INTAKE,500 EFIBOX-AIR INTAKE,500 EFI
-
245812771 FOIL-AIRBOX,,9.75 X 4.50FOIL-AIRBOX,,9.75 X 4.50
-
257555859 WASHER, FLATWASHER, FLAT
-
267515179 SCREWSCREW
-
275249292 CLIP-AIR BOXCLIP-AIR BOX
-
287080413 CLAMP,BAND,NARROWCLAMP,BAND,NARROW
