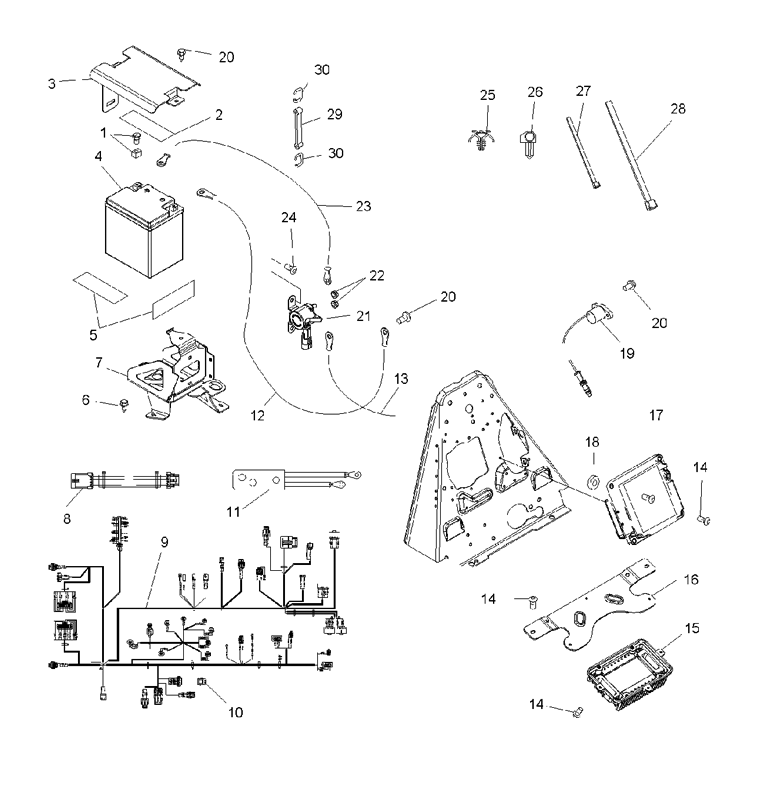

ELECTRICAL COMPONENTS для Polaris SPORTSMAN X2 500 EFI (TN50AU) (BLACK METALLIC) - 2007 года выпуска
-
№АртикулНазвание
-
12202213 KIT-BATTERY BOLT (LONG)KIT-BATTERY BOLT (LONG)
-
25813165 PAD-BATTERY,1.75'' (IF BUILT AFTER 9/20/06)PAD-BATTERY,1.75'' (IF BUILT AFTER 9/20/06)
-
35250933 SHIELD-HEAT,BATTERY (IF BUILT AFTER 9/20/06)SHIELD-HEAT,BATTERY (IF BUILT AFTER 9/20/06)
-
44010595 BATTERY-30AH,12 VOLT,AGM-SEALEDBATTERY-30AH,12 VOLT,AGM-SEALED
-
55810290 PAD, BATTERYPAD, BATTERY
-
67517386 SCREWSCREW
-
71015479-067 WELD-BATTERY BOX, BLACK (IF BUILT BEFORE 9/20/06)WELD-BATTERY BOX, BLACK (IF BUILT BEFORE 9/20/06)
-
71015903-067 WELD-BATTERY BOX,BLK (IF BUILT AFTER 9/20/06)WELD-BATTERY BOX,BLK (IF BUILT AFTER 9/20/06)
-
82410825 JUMPER-HUB COILJUMPER-HUB COIL
-
92410613 HARNESS-MAINHARNESS-MAIN
-
92202670 KIT-FUSIBLE LINK,1.0MMKIT-FUSIBLE LINK,1.0MM
-
104010924 MODULE-RESISTORMODULE-RESISTOR
-
124011552 CABLE-GRD(FRAME/BATTERY)COMCABLE-GRD(FRAME/BATTERY)COM
-
134010093 CABLE,SOL/STARTERCABLE,SOL/STARTER
-
147512024 SCREWSCREW
-
154011657 CONTROL-MODULE,X2,500EFICONTROL-MODULE,X2,500EFI
-
165249459 BRKT-PDM, MOUNT, PLATEDBRKT-PDM, MOUNT, PLATED
-
174011736 MODULE-ENGINE CONTROL,ECU 500EMODULE-ENGINE CONTROL,ECU 500E
-
187555932 WASHER,NYLONWASHER,NYLON
-
194011484 ASM-COIL/SPARK PLUG WIRE (INCL. PLUG WIRE)ASM-COIL/SPARK PLUG WIRE (INCL. PLUG WIRE)
-
207512232 BOLTBOLT
-
214010947 SOLENOID-STARTER-C1100SOLENOID-STARTER-C1100
-
227547270 NUT-HXFLGHD,M6,SERRATEDNUT-HXFLGHD,M6,SERRATED
-
234011360 CABLE-BAT/SOL,REDCABLE-BAT/SOL,RED
-
247512084 SCREWSCREW
-
257080965 MOUNT-CABLE TIE,.25MOUNT-CABLE TIE,.25
-
267670102 CLIPCLIP
-
277080138 CABLE TIECABLE TIE
-
287080492 CABLE TIE,11 INCHCABLE TIE,11 INCH
-
295412499 STRAP-BATTERY HOLD DOWN-C (IF BUILT BEFORE 9/20/06)STRAP-BATTERY HOLD DOWN-C (IF BUILT BEFORE 9/20/06)
-
305224468 HOOK, 'D' (IF BUILT BEFORE 9/20/06)HOOK, 'D' (IF BUILT BEFORE 9/20/06)
