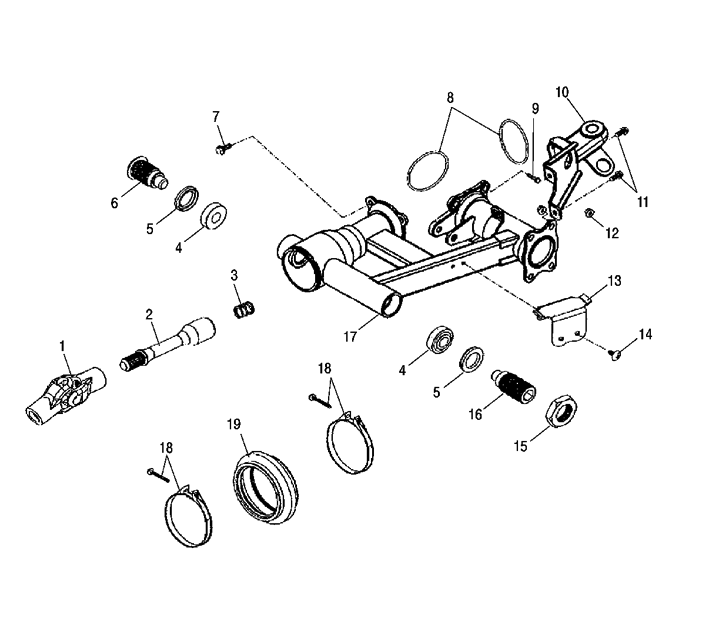

SUSPENSION - REAR SWING ARM для Polaris PHOENIX 200 (QUAD) (PB20EB) - 2008 года выпуска
-
№АртикулНазвание
-
10452607 JOINT-UNIVERSALJOINT-UNIVERSAL
-
20452606 DRIVE SHAFTDRIVE SHAFT
-
30452605 SPRINGSPRING
-
40452608 BEARINGBEARING
-
50452609 SEAL-OILSEAL-OIL
-
60452610 BOLT-PIVOTBOLT-PIVOT
-
70452614 BOLT-HEX, FLANGEBOLT-HEX, FLANGE
-
80452613 O-RINGO-RING
-
90452615 BOLT-JOINT, M10X30BOLT-JOINT, M10X30
-
100452861 BRACKET-TRAILER HOOKBRACKET-TRAILER HOOK
-
110454056 BOLT-HITCHBOLT-HITCH
-
120450882 NUT-LOCK, NYLON 90350-10000-UCNUT-LOCK, NYLON 90350-10000-UC
-
130452860 RETAINER-BRAKE LINERETAINER-BRAKE LINE
-
140451703 SCREW, TAPPINGSCREW, TAPPING
-
150452612 NUT-LOCK, M30X1.35NUT-LOCK, M30X1.35
-
160452611 BOLT-PIVOTBOLT-PIVOT
-
170452859-385 SWING ARM-QUAD, SILVERSWING ARM-QUAD, SILVER
-
180452617 CLAMPCLAMP
-
190452616 JOINT BOOTJOINT BOOT
