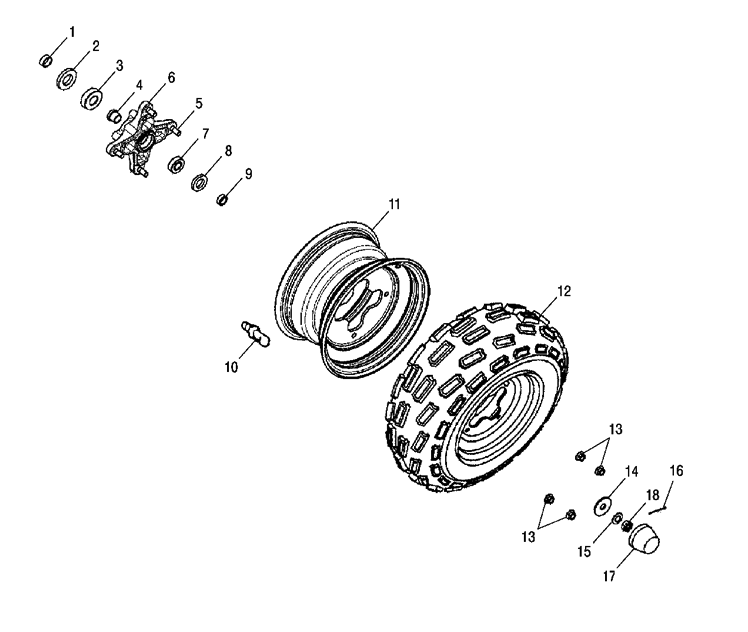

WHEEL - FRONT для Polaris PHOENIX 200 (QUAD) (PB20EB) - 2008 года выпуска
-
№АртикулНазвание
-
10453005 SPACER-COLLAR, INSIDESPACER-COLLAR, INSIDE
-
20453008 SEAL-OIL, OUTSIDESEAL-OIL, OUTSIDE
-
30453009 BEARING-BALL, RADIAL, OUTSIDEBEARING-BALL, RADIAL, OUTSIDE
-
40453006 SPACER-COLLAR, CENTERSPACER-COLLAR, CENTER
-
50453054 BOLT-STUD, WHEELBOLT-STUD, WHEEL
-
60453770 HUB-FRONT, PHOENIX (INCL. 5)HUB-FRONT, PHOENIX (INCL. 5)
-
70453004 BEARING-BALL, RADIALBEARING-BALL, RADIAL
-
80453003 SEAL-OILSEAL-OIL
-
90453007 SPACER-COLLAR, OUTSIDESPACER-COLLAR, OUTSIDE
-
100450401 VALVE, RIMVALVE, RIM
-
110453000-486 RIM, WHEEL, SILVERRIM, WHEEL, SILVER
-
120452786 TIRE-DURO, 21X7-10TIRE-DURO, 21X7-10
-
130453213 NUT-LOCK, HEX, NYLON INSERTNUT-LOCK, HEX, NYLON INSERT
-
140453001 WASHER-FLATWASHER-FLAT
-
150452663 WASHERWASHER
-
160450395 PIN-COTTERPIN-COTTER
-
170452661 CAP-HUBCAP-HUB
-
180453002 NUT-WHEEL, CASTLENUT-WHEEL, CASTLE
