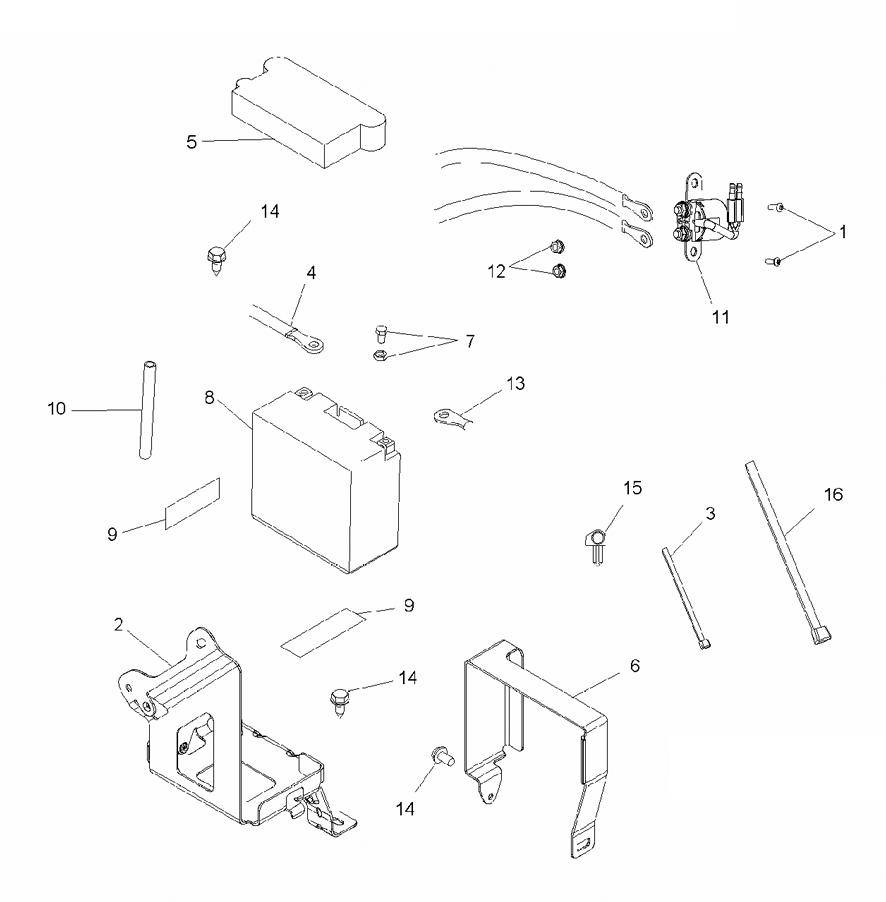

BATTERY для Polaris SPORTSMAN 400 HO 4X4 (LH46AX) (SAGEBRUSH GREEN) - 2008 года выпуска
-
№АртикулНазвание
-
17512024 SCREWSCREW
-
25251289-329 BRKT-BATTERY, E-COATBRKT-BATTERY, E-COAT
-
37080138 CABLE TIECABLE TIE
-
44012133 CABLE-BATTERY, BLACK, 19''CABLE-BATTERY, BLACK, 19''
-
52633661 ASM-BATT COVER/FOAMASM-BATT COVER/FOAM
-
65251295 BRKT-BATTERY STRAPBRKT-BATTERY STRAP
-
72200361 KIT-BATTERY BOLT (SHORT)KIT-BATTERY BOLT (SHORT)
-
84010905 BATTERY-14AH,SEALED,CHARGEDBATTERY-14AH,SEALED,CHARGED
-
95810290 PAD, BATTERYPAD, BATTERY
-
105433156 TUBE, BATTERY VENT, 88 CMTUBE, BATTERY VENT, 88 CM
-
114012013 SOLENOID-STARTERSOLENOID-STARTER
-
127547270 NUT-HXFLGHD, M6, SERRATEDNUT-HXFLGHD, M6, SERRATED
-
134011147 CABLE-16.5'' BAT/SOLENOID, REDCABLE-16.5'' BAT/SOLENOID, RED
-
147518529 SCR-M6X1.0X20, HXHD, FLG, TDFM, BLSCR-M6X1.0X20, HXHD, FLG, TDFM, BL
-
157670102 CLIPCLIP
-
167080492 CABLE TIE, 11 INCHCABLE TIE, 11 INCH
