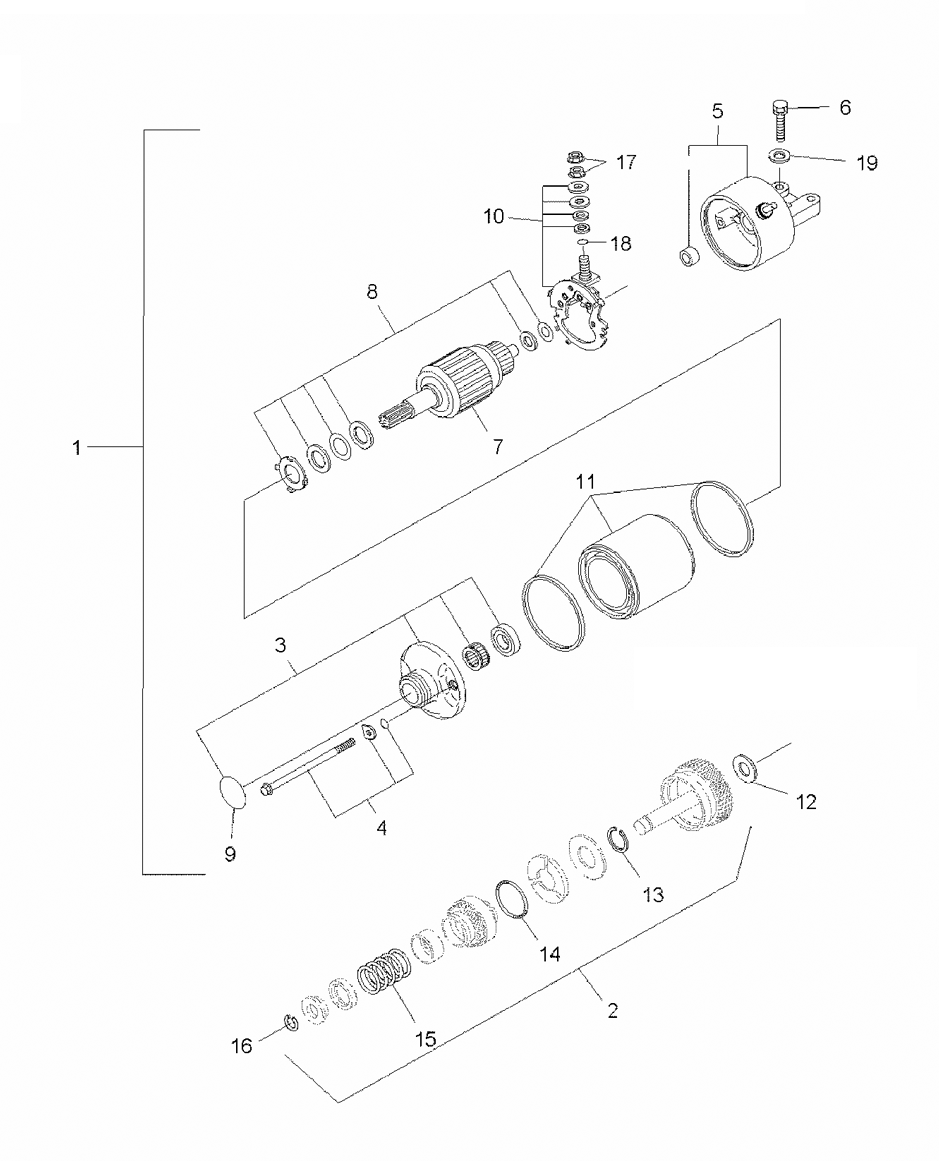

STARTING MOTOR для Polaris SPORTSMAN 400 HO 4X4 (LH46AX) (SAGEBRUSH GREEN) - 2008 года выпуска
-
№АртикулНазвание
-
13090064 MOTOR-STARTING COMPLETE [INCL. 3-5,7-11,17,18]MOTOR-STARTING COMPLETE [INCL. 3-5,7-11,17,18]
-
23087030 ASM-GEAR SHAFT [INCL. 13-16]ASM-GEAR SHAFT [INCL. 13-16]
-
33085033 ASM., BRACKET, FRONT [INCL. 9]ASM., BRACKET, FRONT [INCL. 9]
-
43084983 BOLT ASM, SET [INCL. 18]BOLT ASM, SET [INCL. 18]
-
53090075 CASECASE
-
63084874 BOLT, FLANGEBOLT, FLANGE
-
73085353 ARMATURE ASM.ARMATURE ASM.
-
83084982 WASHER SETWASHER SET
-
93088161 O-RINGO-RING
-
103088169 CARBON BRUSH SETCARBON BRUSH SET
-
113084405 RING, RUBBERRING, RUBBER
-
127555908 WASHERWASHER
-
133084412 CLIPCLIP
-
143084411 SPRING, WEIGHTSPRING, WEIGHT
-
153084410 SPRING, RETURNSPRING, RETURN
-
163084409 CLIPCLIP
-
173083649 NUT, FLANGENUT, FLANGE
-
183084408 O-RINGO-RING
-
197558301 WASHER, FLAT [USED WITH STARTER GROUND CABLE]WASHER, FLAT [USED WITH STARTER GROUND CABLE]
