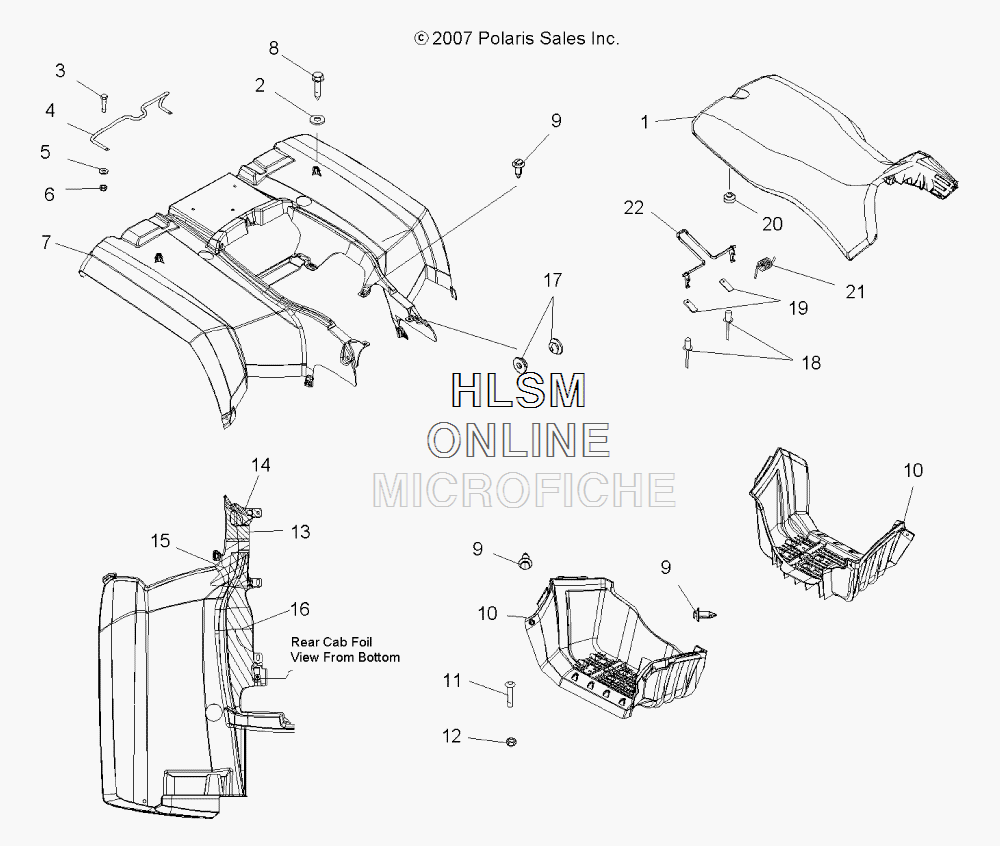

CAB - REAR - SEAT для Polaris SPORTSMAN 500 EFI SCANDANAVIAN (MH50SQ) (NBU CAMO) - 2008 года выпуска`
-
№АртикулНазвание
-
-2683661-070 ASM., SEAT (BLACK) (INCL. 18-22)ASM., SEAT (BLACK) (INCL. 18-22)
-
12683434-070 COVERING, SEAT (BLACK)COVERING, SEAT (BLACK)
-
27555798 WASHERWASHER
-
37511930 SCREWSCREW
-
45250745 RETAINER, SEAT LATCHRETAINER, SEAT LATCH
-
57555792 WASHERWASHER
-
67541925 NUT, NYLOKNUT, NYLOK
-
75435664-455 CAB, REAR (NBU CAMO)CAB, REAR (NBU CAMO)
-
87512095 SCREWSCREW
-
97661855 RIVETRIVET
-
105436931-070 FOOTWELL, LEFT HAND (BLACK)FOOTWELL, LEFT HAND (BLACK)
-
105436932-070 FOOTWELL, RIGHT HAND (BLACK)FOOTWELL, RIGHT HAND (BLACK)
-
117517230 SCREWSCREW
-
127542122 NUT, NYLOKNUT, NYLOK
-
135813177 FOIL, FRONTFOIL, FRONT
-
145813029 FOIL, CAB, REAR, EDGEFOIL, CAB, REAR, EDGE
-
155813030 FOIL, CAB, REAR, MIDDLEFOIL, CAB, REAR, MIDDLE
-
165813043 FOIL, CAB, REARFOIL, CAB, REAR
-
175412623 GROMMET, RUBBER, MOUNTGROMMET, RUBBER, MOUNT
-
187621403 RIVETRIVET
-
195211033 BRACKET, LEVER RETAINERBRACKET, LEVER RETAINER
-
205412067 BUMPER, RUBBERBUMPER, RUBBER
-
217041370 SPRING, LATCHSPRING, LATCH
-
221040387 LATCH, SEATLATCH, SEAT
