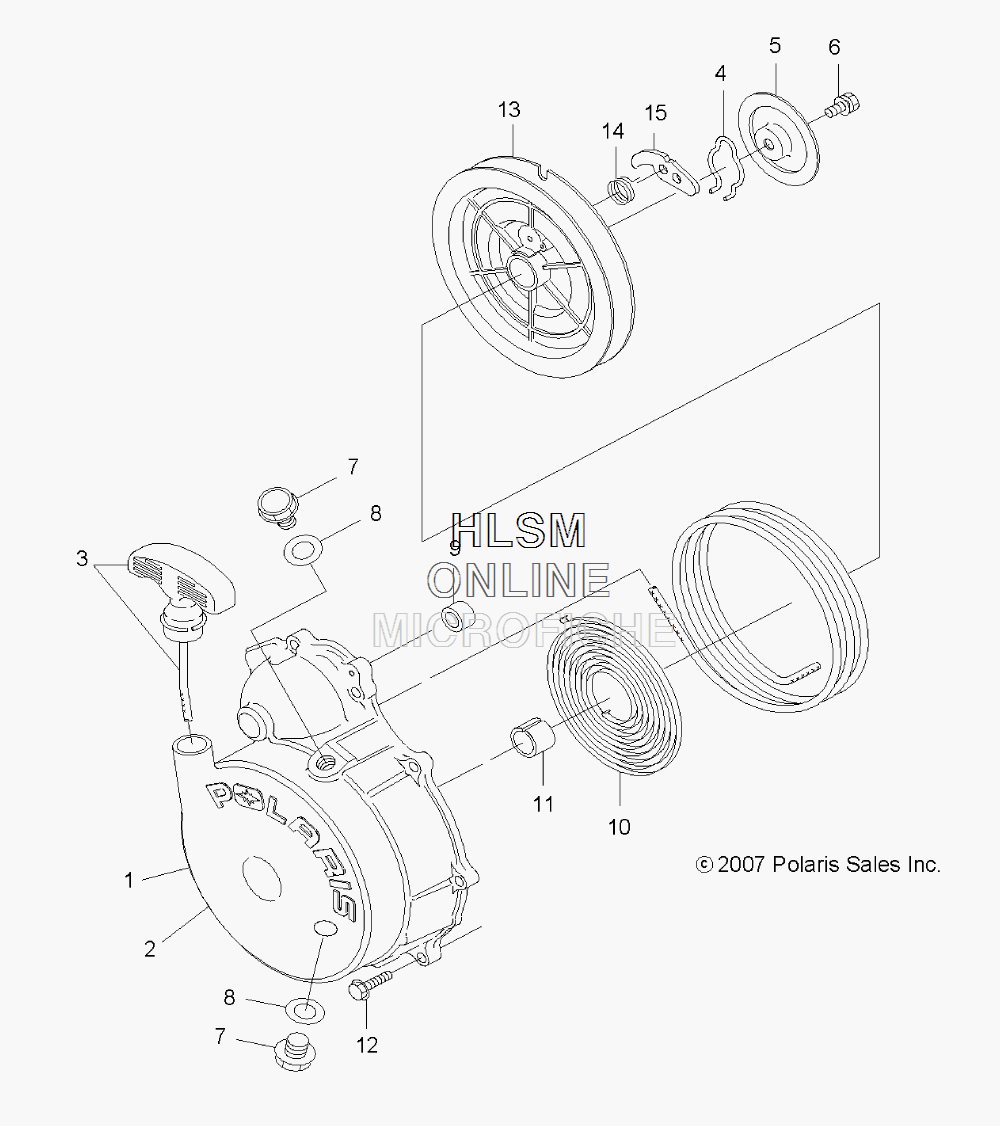

STARTER - RECOIL для Polaris SPORTSMAN 500 EFI SCANDANAVIAN (MH50SQ) (NBU CAMO) - 2008 года выпуска
-
№АртикулНазвание
-
13087163 ASM., RECOIL (INCL. 1-6,9-11,13,14)ASM., RECOIL (INCL. 1-6,9-11,13,14)
-
23087164 ASM., STARTER CASE (INCL. 11)ASM., STARTER CASE (INCL. 11)
-
33085083 ASM., ROPEASM., ROPE
-
43083379 SPRING, FRICTIONSPRING, FRICTION
-
53084744 PLATE, FRICTIONPLATE, FRICTION
-
63085266 BOLT AND WASHERBOLT AND WASHER
-
73086749 PLUGPLUG
-
83082956 GASKETGASKET
-
93083669 BUSHING, STARTERBUSHING, STARTER
-
103083185 SPRING, SPIRALSPRING, SPIRAL
-
113084750 BUSHINGBUSHING
-
123084877 BOLT, FLANGEBOLT, FLANGE
-
133084822 REELREEL
-
143083463 SPRING, RETURNSPRING, RETURN
-
153083378 RATCHETRATCHET
