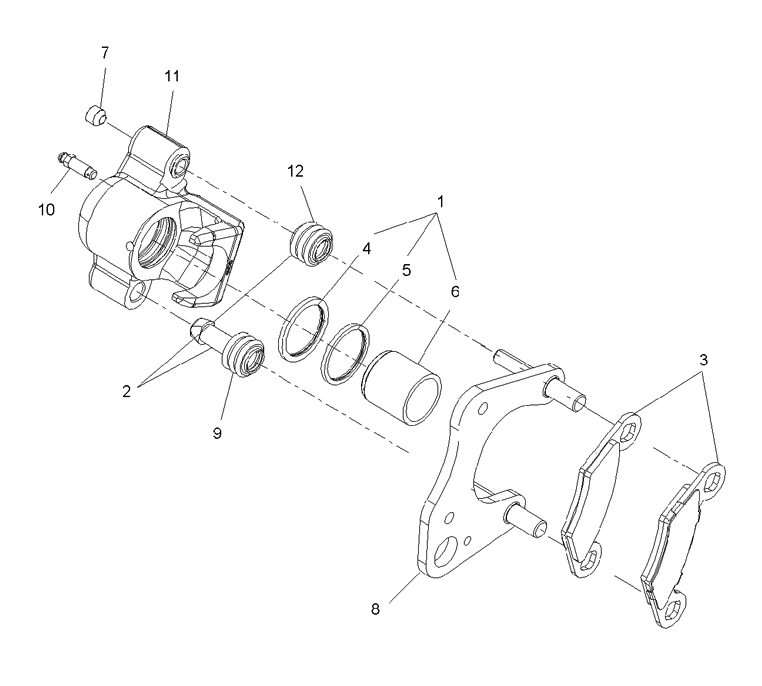

BRAKE - FRONT CALIPER для Polaris SPORTSMAN 500 HO (MH50AZ) (INDY RED) - 2008 года выпуска
-
№АртикулНазвание
-
1910841 CALIPER ASM, BRAKE, LEFT HAND, 1.187, 9'' (INCLUDES 1-12)CALIPER ASM, BRAKE, LEFT HAND, 1.187, 9'' (INCLUDES 1-12)
-
1910842 CALIPER ASM, BRAKE, RIGHT HAND, 1.187, 9'' (INCLUDES 1-12)CALIPER ASM, BRAKE, RIGHT HAND, 1.187, 9'' (INCLUDES 1-12)
-
11930665 PISTON AND SEAL, KIT (INCLUDES 4-6)PISTON AND SEAL, KIT (INCLUDES 4-6)
-
21930642 KIT, BOOT, FRONT BRAKE (INCLUDES 9, 12)KIT, BOOT, FRONT BRAKE (INCLUDES 9, 12)
-
32202412 KIT-FRONT BRAKE PAD ASM (INCLUDES 2 SETS AND 4 PADS)KIT-FRONT BRAKE PAD ASM (INCLUDES 2 SETS AND 4 PADS)
-
45410780 RING, SQUARE, MOLDED, .103X.134RING, SQUARE, MOLDED, .103X.134
-
55410779 RING, SQUARE, MOLDED, .094RING, SQUARE, MOLDED, .094
-
65132294 PISTON & SEAL, KITPISTON & SEAL, KIT
-
77515489 SCR-3/8-24X5/16 SOC SET-YSCR-3/8-24X5/16 SOC SET-Y
-
81910513 MOUNT, CALIPER, FRONTMOUNT, CALIPER, FRONT
-
95412505 BOOT-PIN BUSHINGBOOT-PIN BUSHING
-
107080352 SCREW, BLEEDERSCREW, BLEEDER
-
115134639 CALIPER-BRAKE, LEFT HAND, 1-3/16CALIPER-BRAKE, LEFT HAND, 1-3/16
-
115134640 CALIPER-BRAKE, RIGHT HAND, 1-3/16CALIPER-BRAKE, RIGHT HAND, 1-3/16
-
125412506 BOOT-PIN SEALBOOT-PIN SEAL
