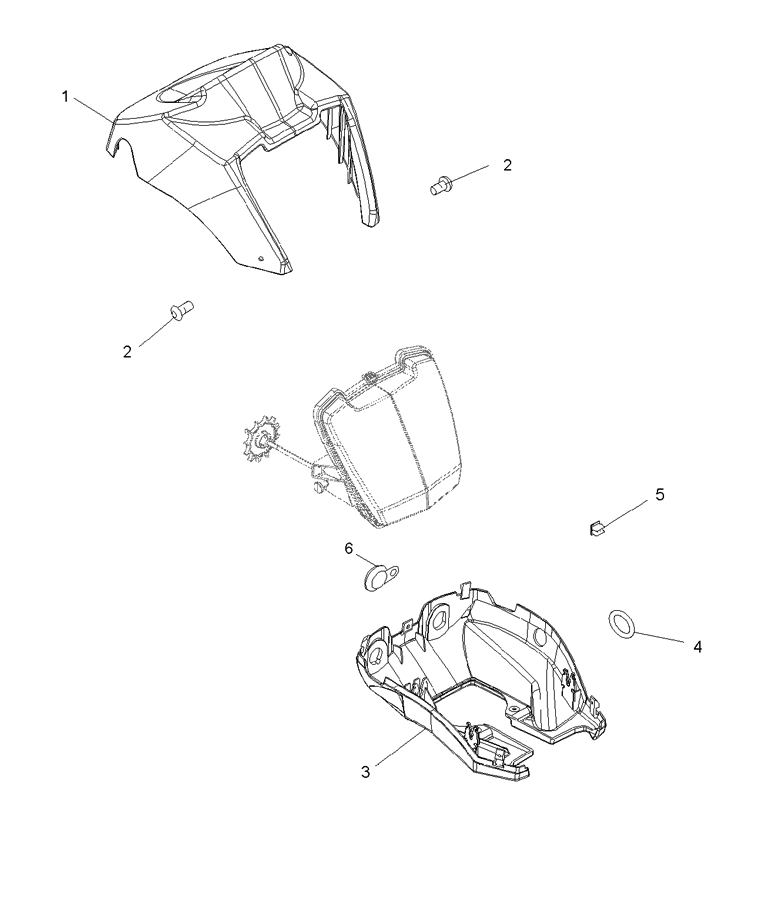

HEADLIGHT POD для Polaris SPORTSMAN 500 HO (MH50AZ) (INDY RED) - 2008 года выпуска
-
№АртикулНазвание
-
15436819-293 POD-HDLT, UPPER, SNAP, INDY REDPOD-HDLT, UPPER, SNAP, INDY RED
-
27511881 SCREWSCREW
-
35436747-070 POD-HEADLIGHT, LOWER, SNAP, BLACKPOD-HEADLIGHT, LOWER, SNAP, BLACK
-
45410163 O RINGO RING
-
57670127 CLIP-SCREW, #8/10, .03-.10, PANELCLIP-SCREW, #8/10, .03-.10, PANEL
-
65413239 GROMMET-CHOKE HOLEGROMMET-CHOKE HOLE
